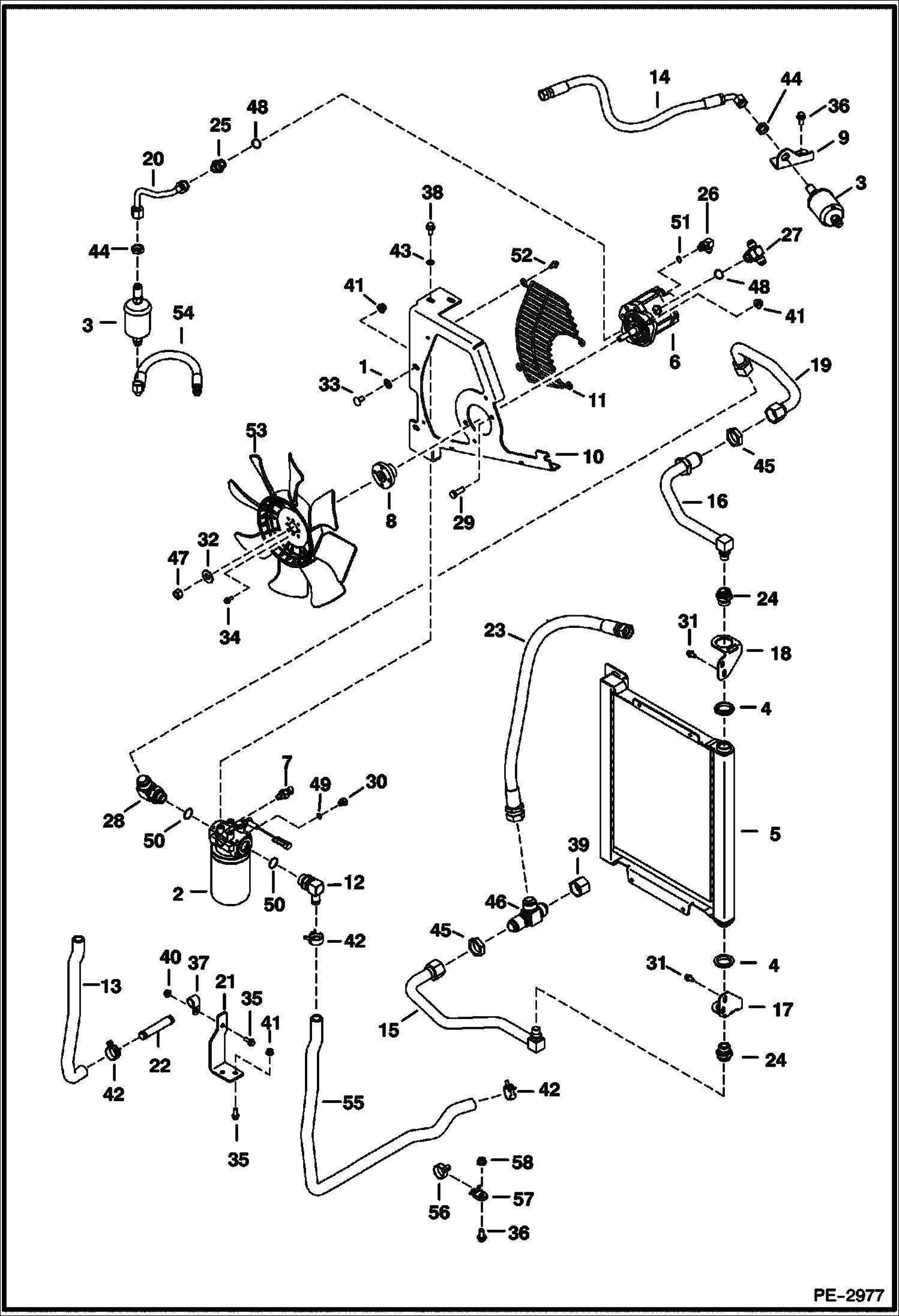

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Cooler/Filter) HYDRAULIC/HYDROSTATIC SYSTEM

1

6674264

RETAINER NUT

2

FILTER See Illustration HYDROSTATIC OIL FILTER/ NA1844 NLA - assy - Order 6688385 filter assy & 6668819 filter - replace existing short filter (5.5'' long) with longer 6668819 filter (9'' long) -

2

6668819

FILTER, OIL HYD hydraulic - 9.5 (241,3 mm) long

3

6681012

FILTER, OIL HYD IN-LINE

4

6681623

BUSHING

5

6683316

EXCHANGER

6

MOTOR See Illustration FAN MOTOR/ B24364

7

6727869

SENDER,HYD TEMP

8

6812390

HUB 1.42'' (36 mm) long - Use W/ 6683810 fan

8

7117206

HUB 2.01'' (51 mm) long - ESA Only - Use W/ 7117208 fan

9

6814286

BRACKET

10

6814287

MOUNT fan

10

MOUNT, FAN NLA - Order 7165327 mount and 7165282 tubeline - Was 7141918

10

7165327

MOUNT, FAN

11

6814288

GUARD

12

6814419

FITTING W/Ref. 50

12

7144732

FITTING, ELBOW HYD W/Ref. 50

13

6814421

HOSE

14

7125154

HOSE Was 6814660 - B

15

6815879

TUBE

16

6815880

TUBE

17

6815881

BRACKET oil cooler

17

7147737

BRACKET, OIL COOLER

18

6815882

BRACKET oil cooler

18

7147738

BRACKET, OIL COOLER

19

6815883

TUBE

20

6815893

TUBE

20

7165282

TUBELINE, HYD Use W/ 7165327 mount

21

7101025

BRACKET

22

7101113

TUBE tube

23

7104788

HOSE

24

10L1212

ADAPTER

25

15KB0810

FITTING, HYD CONNECTOR W/Ref. 48

26

17KB0406

FITTING, HYD ELBOW W/Ref. 51

26

21KB0406

FTG HYD STRAIGHT TEE W/Ref. 51

27

7108783

TEE W/Ref. 48

27

17KB0810

FITTING, HYD ELBOW W/Ref. 48

28

17KB1612

FITTING, HYD ELBOW W/Ref. 50

29

1CM1030

BOLT

30

24K2

PLUG W/Ref. 49

31

26GM8016

SCREW

32

27E8

WASHER 10

32

25E21

WASHER 5 Europe

33

28CM1020

BOLT

34

29CM620

SCREW Was 29CM00616B

35

29CM820

SCREW

36

29CM1020

BOLT

37

30H65

CLIP insulated

38

35C612

BOLT

39

36K10

CAP

40

43DM8

NUT flanged

41

51DM10

NUT hex

42

5HM29

HOSECLAMP

43

6E6

WASHER lock

44

86F6

NUT lock

45

86F10

NUT lock

46

91K10

FITTING

47

95D8

NUT

48

79K10

O RING 10

49

79K3

O RING 10

50

79K12

O RING 10

51

79K6

O RING 10

52

26GM8013

BOLT

53

6683810

FAN 8 blade

53

7117208

FAN 5 blade - ESA Only

54

6812731

HOSE

54

7141924

HOSE, HYD

55

7166145

HOSE, FORMED HYD Was 7156384 - A

56

6678669

STRAP

57

6679034

MOUNT

58

43DM10

NUT
