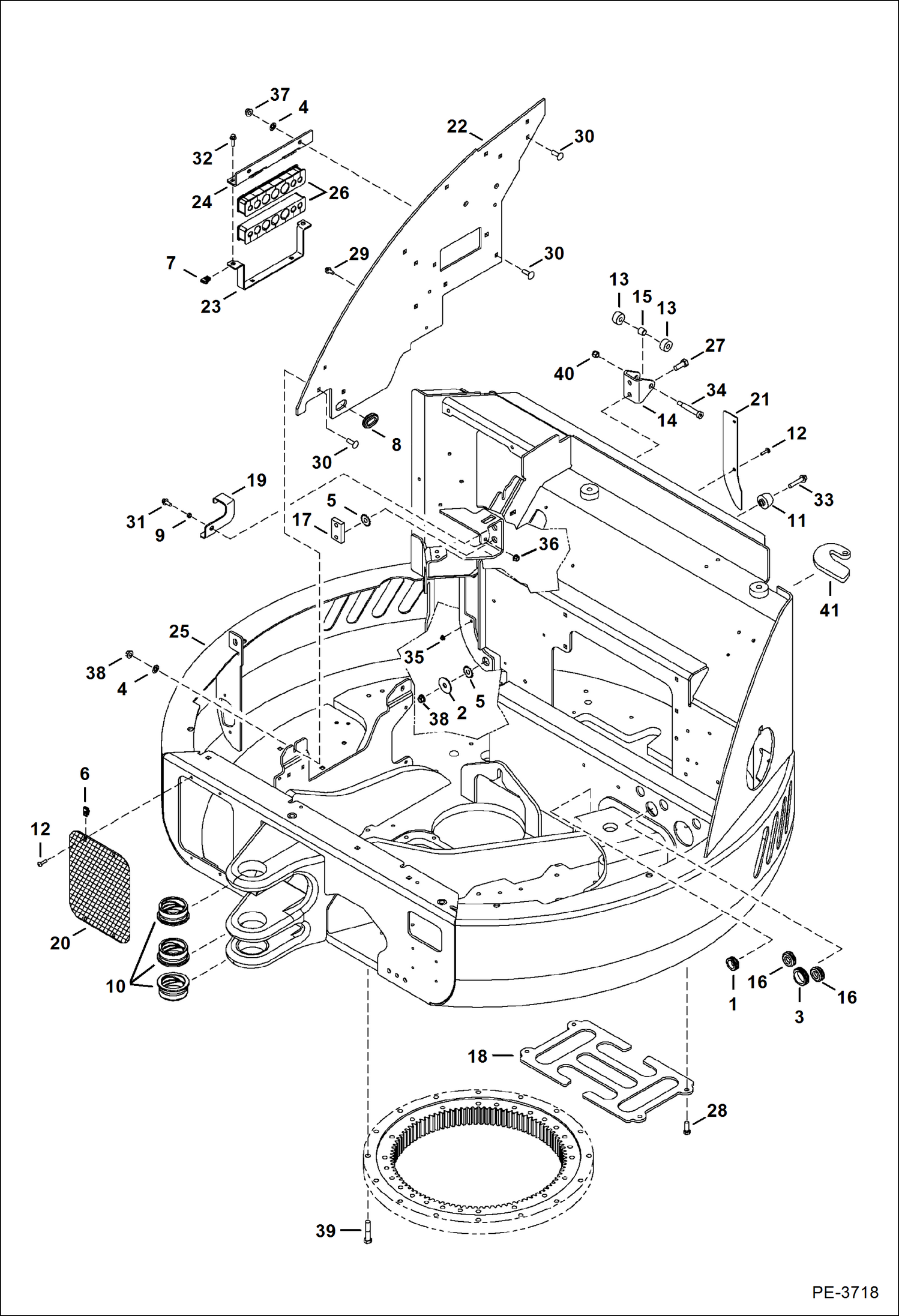

Запчасти Bobcat 430 UPPERSTRUCTURE (S/N 563014293 & Above) MAIN FRAME

1

6515603

GROMMET

2

6560899

WASHER

3

6670119

GROMMET

4

6674264

RETAINER NUT

5

6675273

WASHER

6

6676026

NUT

7

6676169

NUT

8

6681886

GROMMET

9

6807220

SPACER

10

6807956

BUSHING

11

6808365

BUMPER

12

6809030

SCREW

13

6809726

ROLLER

14

6809727

CHANNEL

15

6809734

BUSHING

16

6810133

GROMMET

17

6810802

BAR

18

6810972

PLATE

19

6811886

TAILGATE LOCK

20

6816555

SCREEN

21

7110857

COVER

22

7131987

PLATE

23

7134798

BRACKET

24

7134799

BRACKET

25

7161060

UPPERSTRUCTURE Was 7150019 - A

26

7150020

GUIDE, HOSE

27

17C820

BOLT

28

1CM1030

BOLT

29

26GM10020

BOLT

30

28CM1030

BOLT

31

29CM820

SCREW

32

29CM825

BOLT

33

29CM1050

BOLT

34

38C840

BOLT

35

43DM6

NUT

36

43DM8

NUT

37

43DM10

NUT

38

51DM10

NUT

39

55CM1260

SCREW

40

59D6

NUT

41

6810968

HINGE weld-on
