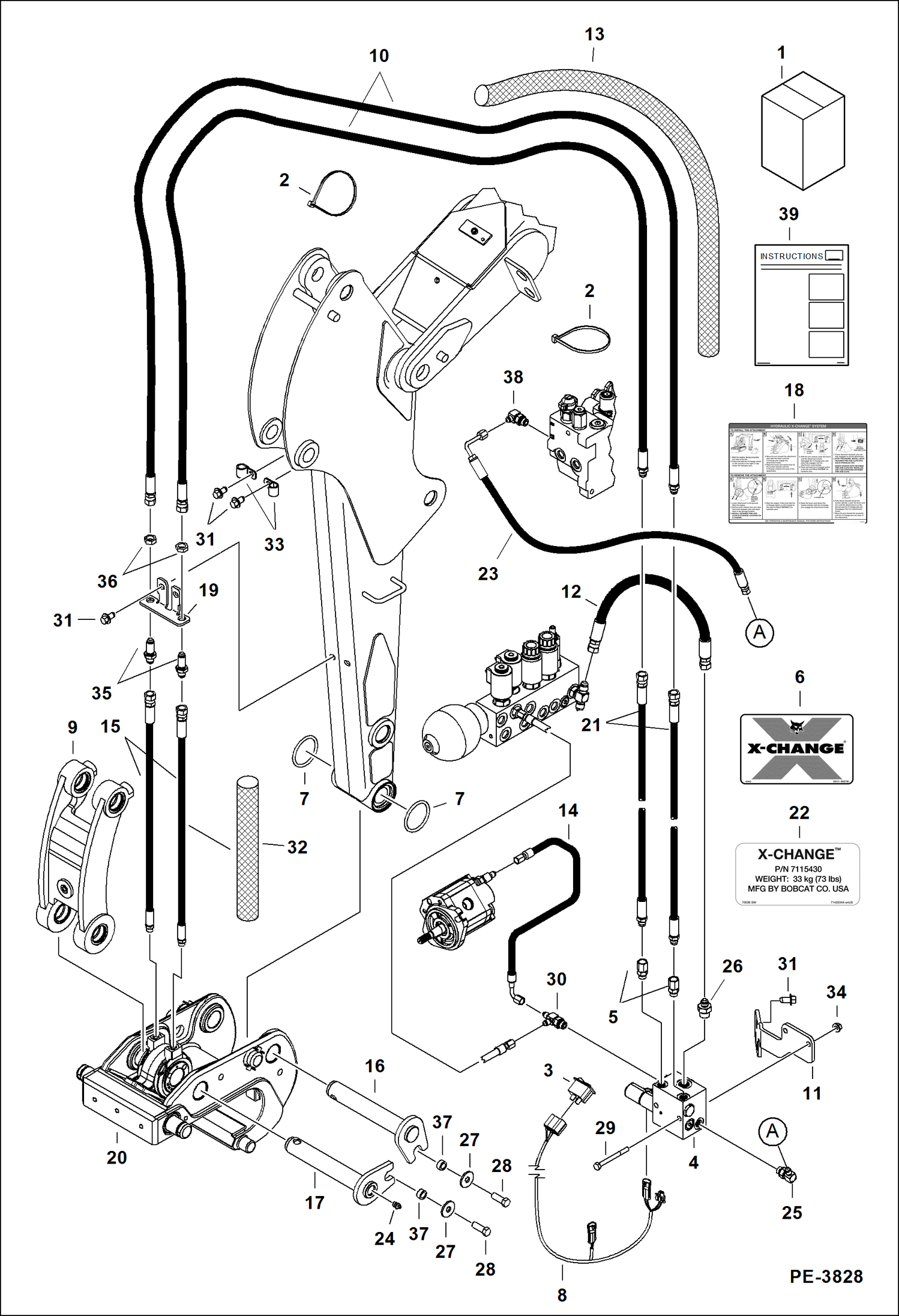

Запчасти Bobcat 430 X-CHANGE (Hydraulic) (Kit) (S/N 562914619 & Above) ACCESSORIES & OPTIONS

1

7159040

KIT, X-CHANGE HYD SHORT ARM for standard arm - W/Ref. 2-39

1

7159041

KIT, X-CHANGE HYD LONG ARM for long arm - W/Ref. 2-39

2

6624289

STRAP, TIE

3

6688667

SWITCH

4

6688821

MANIFOLD See Illustration X-CHANGE/ MS1461

5

6732089

CONNECTOR

5

79K6

O RING 10

6

6803760

DECAL X-Change

7

6811260

O-RING

8

7113694

HARNESS

9

LINK ASSY See Illustration X-CHANGE/ PE3359

10

7115637

HOSE Use with standard arm

10

7140688

HOSE Use with long arm

11

7141705

BRACKET

12

7117661

HOSE

13

7120119

GUARD

14

7125143

HOSE

15

7125345

HOSE

16

7130245

PIN

17

7134283

PIN

18

7134587

DECAL, X-CHANGE using X-Change

19

7138752

BRACKET

20

7139701

X-CHG SWIVEL See Illustration X-CHANGE/ PE3359

21

7142033

HOSE

22

7142034

DECAL X-Change

23

7153113

HOSE, HYD ASSY

24

10H25

FITTING, GREASE 5

25

17KB0406

FITTING, HYD ELBOW

25

79K6

O RING 10

26

15KB0608

FITTING, HYD CONNECTOR

26

79K8

O RING 10

27

17EM120

WASHER

28

1CM1235

BOLT

29

1CM880

BOLT

30

21KB0406

FTG HYD STRAIGHT TEE

30

79K6

O RING 10

31

26GM10020

BOLT

32

7161761

GUARD, FABRIC

33

30H35

CLAMP 10

34

43DM8

NUT

35

45K5

FITTING

36

86F5

NUT

37

6503451

SPACER

38

7124150

ELBOW

39

6986540

INSTRUCTIONS
