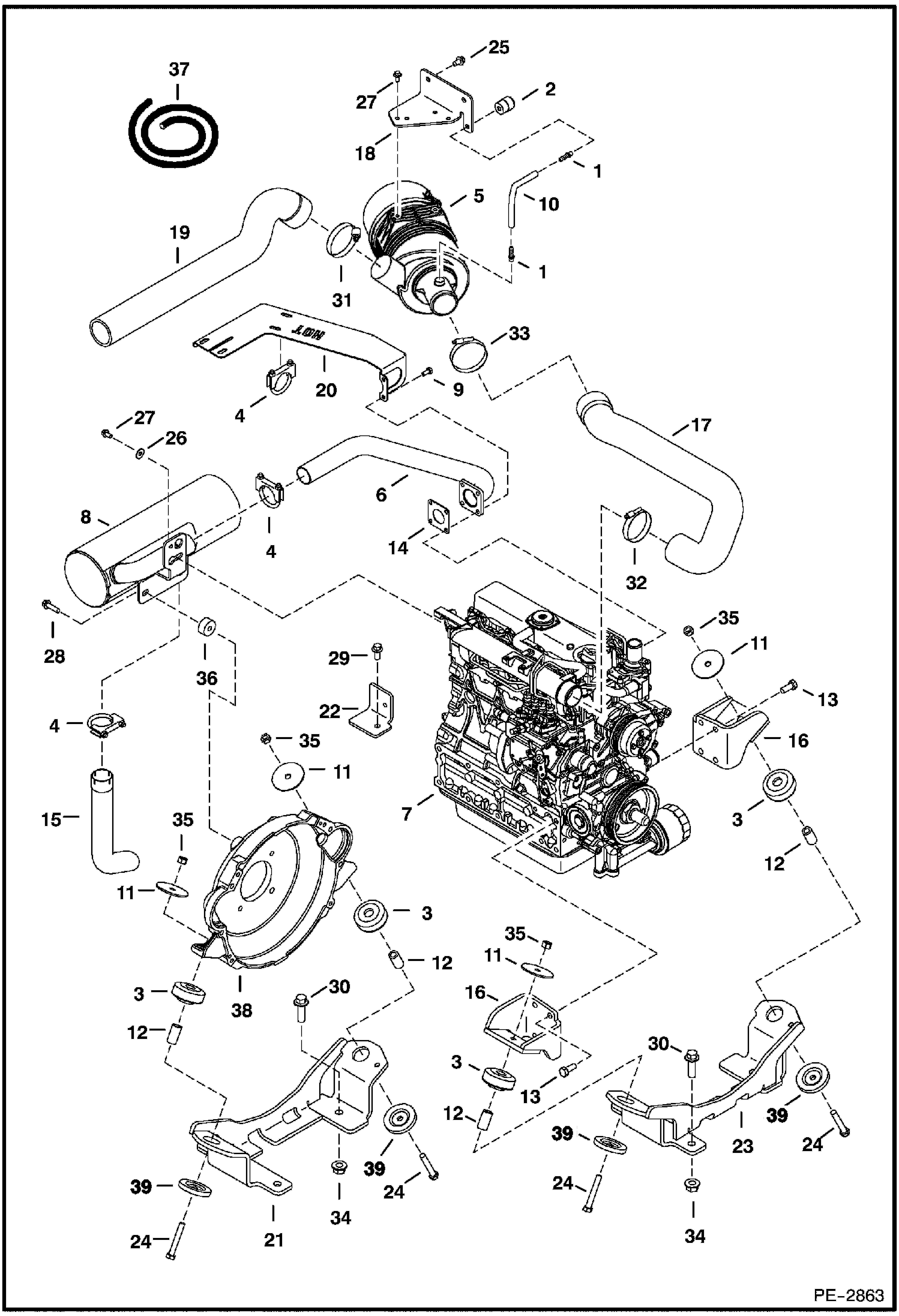

Запчасти Bobcat 430 ENGINE & ATTACHING PARTS (Air Cleaner, Muffler, Engine Mounts) (S/N 562912007 & Below) POWER UNIT

1

6505813

CONNECTOR

2

6515007

GAUGE Was 6615007 - D

3

6661785

MOUNT, ENG engine

4

6677363

CLAMP, FULL CIRCLE

4

6677363

CLAMP, FULL CIRCLE

5

6678769

AIR CLEANER See Illustration AIR CLEANER/ B20074

6

7000322

TUBE, EXHAUST Was 6682483 - A

7

ENGINE See Illustration ENGINE & GASKET KITS/ NA1577 - Was 6685049 - A

8

MUFFLER, EXHAUST NLA - Order 7000320 muffler & 7000323 pipe - Was 6689041 - A

8

7000320

MUFFLER, EXHAUST Was 7171576 - A

9

6701123

SCREW

10

HOSE NLA - 11'' (280 mm) long - Order Ref 37

11

6705106

WASHER

12

6706043

SPACER

13

6719828

BOLT

14

6727752

GASKET

15

7000323

PIPE, TUBE EXHAUST Was 7140376 - A

16

6814278

MOUNT

17

6814623

HOSE

18

6814640

BRACKET

19

6816123

HOSE

20

COVER NLA - exhaust - Order 7127718 - Was 6817602 - A

20

7127718

COVER EXHAUST

21

MOUNT See Illustration ENGINE MOUNT KIT/ PE2861 NLA - Order 7121997 kit

22

7102959

BRACKET

23

MOUNT See Illustration ENGINE MOUNT KIT/ PE2861 NLA - Order 7121997 kit

24

1CM1280

BOLT

25

26GM10020

BOLT

26

17EM80

WASHER Was 27E000005B

27

29CM816

SCREW

28

29CM1035

SCREW

29

29CM1225

BOLT

30

29CM1650

BOLT

31

42H44

HOSECLAM5

32

42HC300

CLAMP

33

42HC325

CLAMP

34

51DM16

NUT

35

53DM12

NUT

36

7101016

SPACER

37

6557720

HOSE bulk - sold per foot

38

7121429

HOUSING MACH Was 7101784 - A

39

6661787

WASHER
