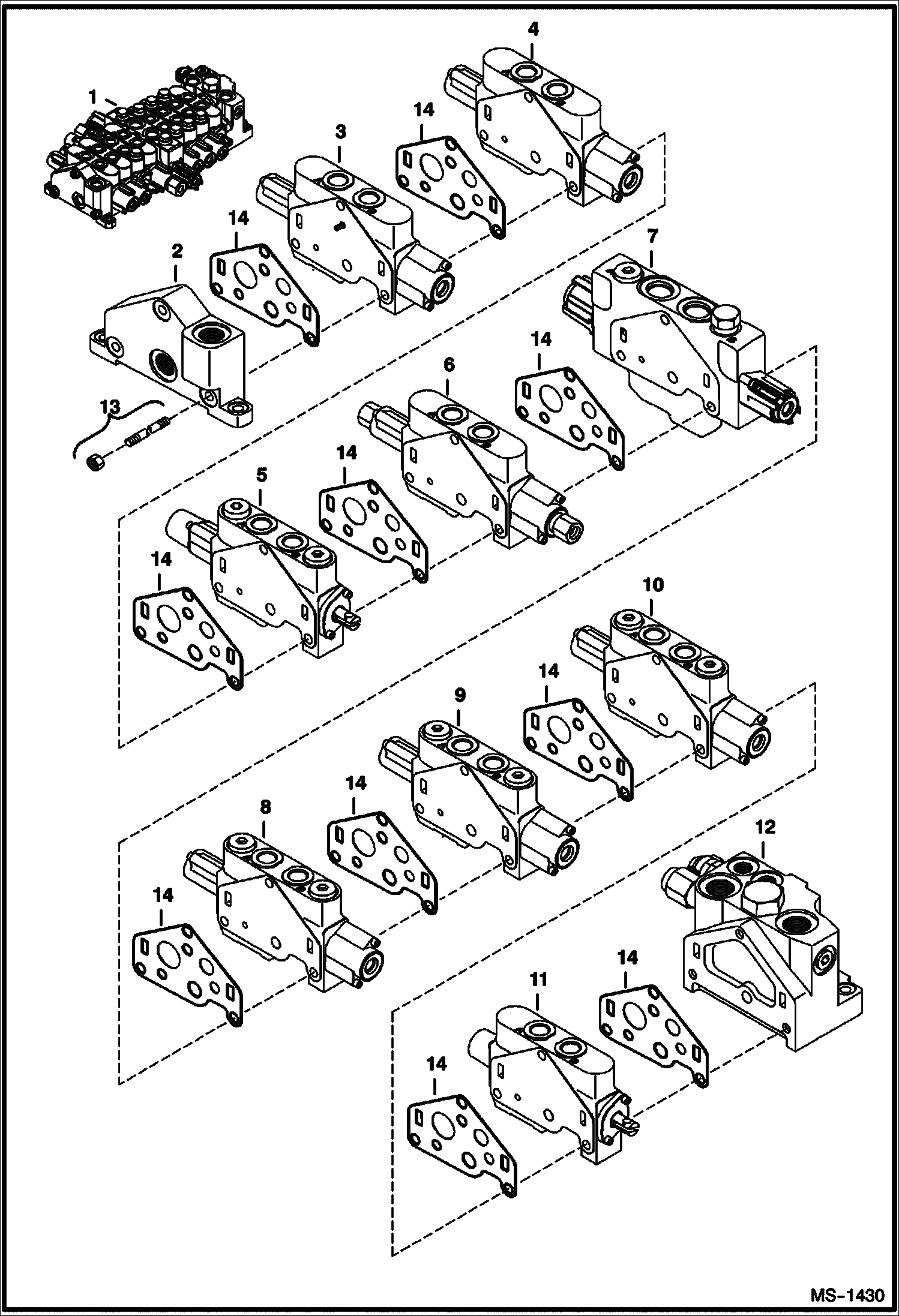

Запчасти Bobcat 430 CONTROL VALVE (9 Work Section) (S/N 562912779 & Above) HYDRAULIC SYSTEM

1

6689571

VALVE ASSY Ref. 2-14

2

6687052

VALVE outlet - Was 6691129 - A

3

6687051

VALVE SECTION See Illustration VALVE SECTION/ MS1434 - RH travel

4

6687050

VALVE SECTION See Illustration VALVE SECTION/ MS1435 - LH travel

5

6689609

VALVE SECTION See Illustration VALVE SECTION/ MS1436 - blade

6

6687048

VALVE SECTION See Illustration VALVE SECTION/ MS1437 - slew - Was 6692409 - A

7

6691124

VALVE SECTION See Illustration VALVE SECTION/ MS1432 - auxiliary

8

6692407

VALVE SECTION See Illustration VALVE SECTION/ MS1438 - bucket

9

6689607

VALVE SECTION See Illustration VALVE SECTION/ MS1438A - arm

10

6689606

VALVE SECTION See Illustration VALVE SECTION/ MS1438B - boom

11

6692406

VALVE SECTION See Illustration VALVE SECTION/ MS1433 - offset - A

12

6687041

VALVE See Illustration VALVE SECTION/ MS1431 - inlet - Was 6691118 - A

13

6691130

KIT tie rod - Was 6692403 - D

14

6687070

GASKET, SECTION VALVE
