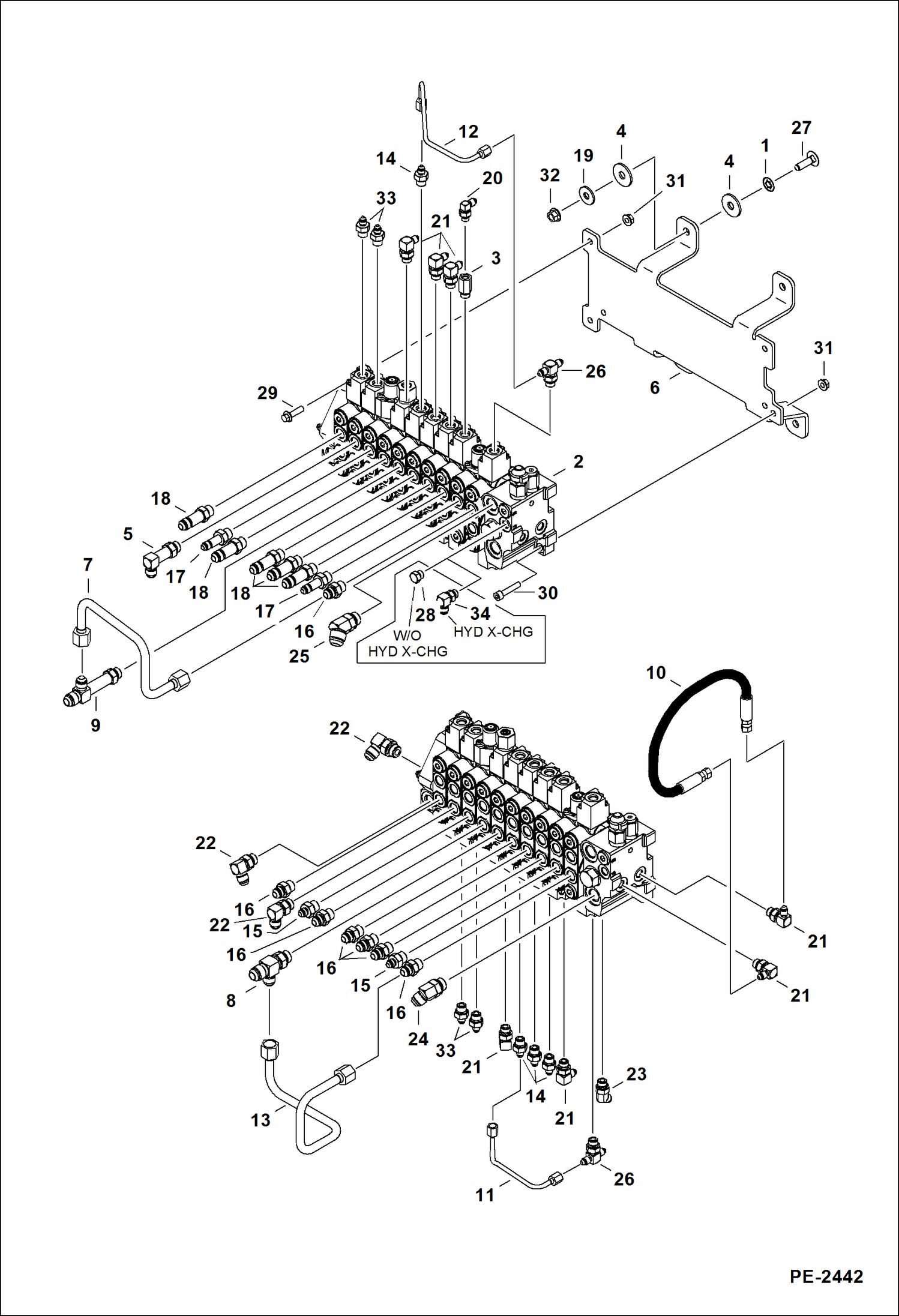

Запчасти Bobcat 430 HYDRAULIC CONTROL VALVE (10 Work Section) (S/N 562912778 & Below) HYDRAULIC SYSTEM

1

6674264

RETAINER NUT

2

VALVE NLA - control - Order 6689182 - Was 6687151 - C

2

6689182

VALVE, CONTROL Was 6687151 - C

3

6686900

ORIFICE

4

6806720

INSULATOR

5

7102234

FITTING Was 6812820 - B,D

5

79K8

O RING 10

6

6813890

MOUNT

7

7102578

TUBELINE

8

7102955

TEE

8

79K8

O RING 10

9

7102956

TEE

9

79K8

O RING 10

10

7102958

HOSE

11

7102960

TUBELINE

12

7102961

TUBELINE

13

7107236

TUBELINE

14

15KB0406

FTG HYD S CONNECTOR

14

79K6

O RING 10

15

15KB0608

FITTING, HYD CONNECTOR

15

79K8

O RING 10

16

15KB0808

FITTING, HYD CONNECTOR

16

79K8

O RING 10

17

16KB0608

FITTING, HYD CONNECTOR

17

79K8

O RING 10

18

16KB0808

FITTING, HYD CONNECTOR

18

79K8

O RING 10

19

17EM100

WASHER

20

17KB0404

FTG HYD ELBOW 90 90 degree

20

79K4

O RING 10

21

7124150

ELBOW 90 degree

21

79K6

O RING 10

22

17KB0808

FITTING, HYD ELBOW 90 degree

22

79K8

O RING 10

23

18KB0606

FITTING, HYD ELBOW 45 degree

23

79K6

O RING 10

24

18KB1010

FITTING, HYD ELBOW 45 degree

24

79K10

O RING 10

24

79K10

O RING 10

25

18KB1210

FITTING, HYD ELBOW 45 degree

25

79K10

O RING 10

26

19KB0406

FITTING, HYD TEE

26

79K6

O RING 10

27

21CM1035

BOLT

28

24K5

PLUG

28

79K6

O RING 10

29

29CM830

CAPSCREW

30

3GM840

SCREW

31

43DM8

NUT

32

51DM10

NUT

33

15KB0406

FTG HYD S CONNECTOR See Illustration HYDRAULIC CIRCUITRY/ PE2399 - Ref. 9 & 18

33

7124150

ELBOW See Illustration HYDRAULIC CIRCUITRY/ PE2399 - Ref. 9 & 18

34

7124150

ELBOW See Illustration X-CHANGE/ PE3239
