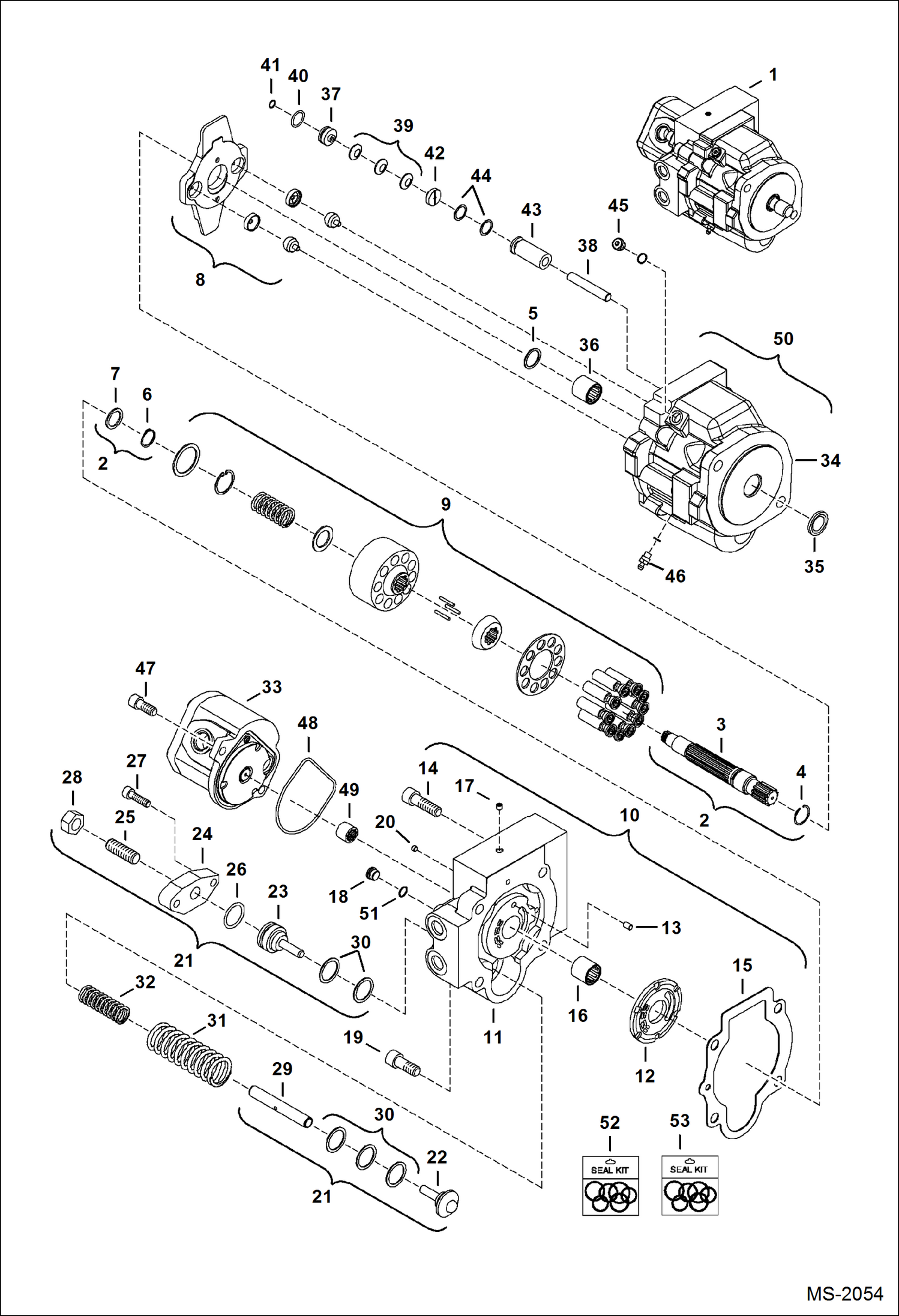

Запчасти Bobcat 430 HYDRAULIC PISTON PUMP HYDRAULIC SYSTEM

1

6698085

PUMP Was 6685836 - A

2

6687780

SHAFT ASSY assy - W/Ref. 3-7

3

6687895

SHAFT

4

6687791

RING

5

6687792

SHIM

6

6679471

RETAINER

7

6687793

SHIM

8

6687781

SWASH PLATE ASSY swash plate assy

9

6687782

ROTARY GROUP group

10

6687783

PORT PLATE ASSY W/Ref. 11-20

11

PORT NSS - plate - Order Ref. 10

12

6687794

CONTROL PLATE control

13

6687795

PIN

14

6687796

BOLT

15

6687797

GASKET

16

6687798

BEARING

17

6678595

PLUG

18

6687799

PLUG W/Ref. 51

19

6687800

BOLT

20

6687801

ORIFICE

21

6687891

SPRING ASSY seat assy - W/Ref. 22-30

22

6687802

SEAT, SPRING spring

23

6687803

SPRING seat

24

6687896

COVER

25

6687805

ADJUSTING SCREW

26

6687806

ORING

27

6687807

BOLT socket head

28

6687808

NUT

29

6687809

GUIDE

30

6687810

SHIM .040'' (1mm)

30

6687811

SHIM .020'' (.5mm)

30

6687812

SHIM .012'' (.3mm)

31

6687893

SPRING

32

6687894

SPRING

33

6687892

PUMP See Illustration HYDRAULIC GEAR PUMP/ MS2053 gear - W/Ref. 48 & 49

34

HOUSING NSS - Order Ref. 50

35

6687813

SEAL oil

36

6687814

BEARING

37

6698371

PISTON Was 6687815 - A

38

6687816

PIN

39

6687817

SPRING coned

40

6687818

ORING

41

6687819

ORING

42

6698370

SPACER Was 6687820 - A

43

6687821

SLEEVE

44

6687822

SHIM .004'' (.1mm)

44

6687823

SHIM .020'' (5mm)

44

6687824

SHIM .039'' (1mm)

45

6687789

PLUG W/ O-ring

46

6687788

PLUG W/ O-ring

47

6678641

SCREW

48

6687898

O-RING

49

6687897

COUPLING

50

6687785

HOUSING ASSY W/Ref. 34-44

51

O-RING NSS - Order Ref. 18

52

6693152

KIT, SEAL W/Ref. 15, 26, 35, 40, 41, 46, 48, 51

53

6693151

KIT, SEAL complete - Includes seal kits 6693152(piston pump) & 6690452(gear pump)
