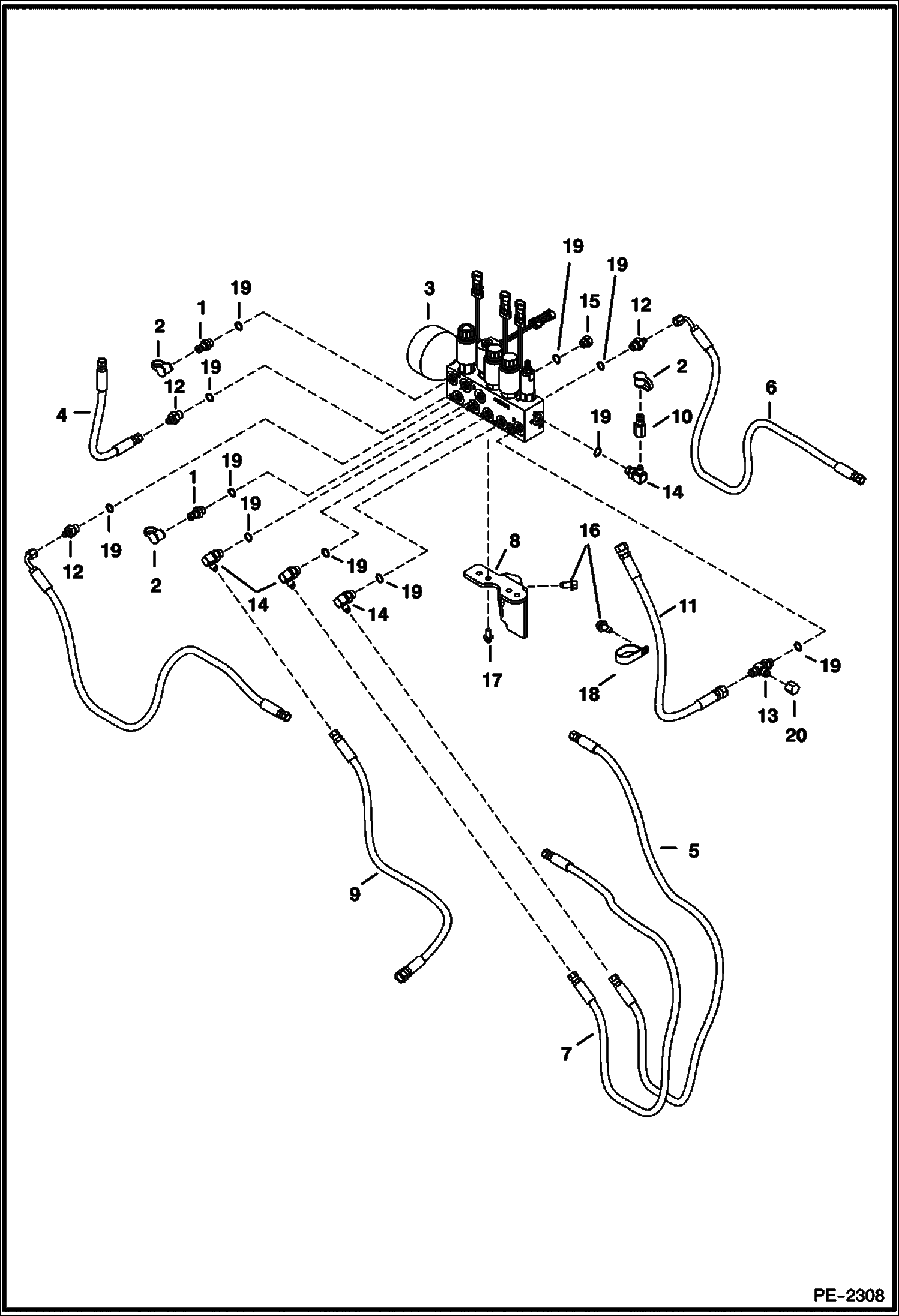

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Manifold) (S/N 562914618 & Below) HYDRAULIC SYSTEM

1

6630168

COUPLER

2

6630367

CAP

3

MANIFOLD See Illustration MANIFOLD ASSY/ MS1401 See Illustration MANIFOLD ASSY/ MS1481 See Illustration MANIFOLD ASSY/ MS1465 - assy

4

7125149

HOSE Was 6706228 - B

5

7106597

HOSE Was 6802066 - A

6

7106600

HOSE Was 6807945 - A

7

6812855

HOSE

8

6813694

BRACKET

8

7109134

BRACKET

9

7107673

HOSE Was 6815221 - A

10

7000009

PLUG

11

7107843

HOSE

12

15KB0406

FTG HYD S CONNECTOR W/Ref. 19 - flat boss face

13

21KB0606

FTG HYD STRAIGHT TEE W/hydraulic X-Change option - W/Ref. 19

13

15KB0606

FITTING, HYD CONNECTOR W/O hydraulic x-change option - W/Ref. 19

13

19KB0606

TEE W/hydraulic X-Change option - W/Ref. 19

14

17KB0406

FITTING, HYD ELBOW W/Ref. 19

15

24K5

PLUG

16

26GM10020

BOLT

17

29CM816

SCREW

18

31H38

CLAMP

19

79K6

O RING 10

20

36K5

CAP
