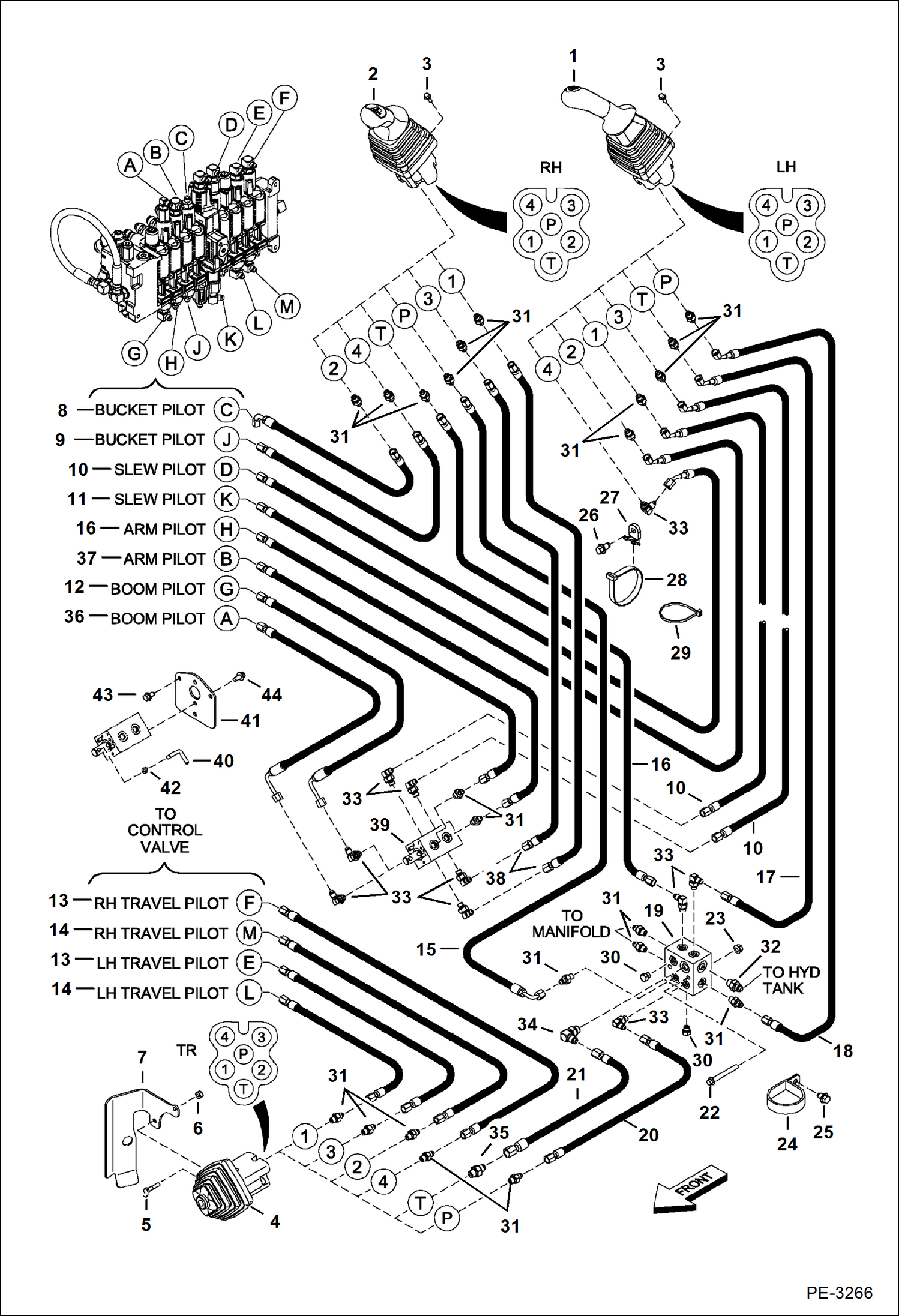

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Pilot) (ISO/STD) (S/N 562912779-562914618) HYDRAULIC SYSTEM

1

6677894

JOYSTICK

2

6677895

JOYSTICK

3

26GM6020

SCREW

4

6677896

JOYSTICK

5

17C420

BOLT

6

83D4

NUT 10

7

7126056

GUIDE

8

7106587

HOSE

9

7107646

HOSE

10

7107665

HOSE

11

7107644

HOSE

12

6807478

HOSE

13

7106598

HOSE

14

7107650

HOSE

15

7106608

HOSE

16

7107648

HOSE

17

7106592

HOSE

18

7106613

HOSE

19

6814985

BLOCK

20

7106604

HOSE

21

7107651

HOSE

22

29CM870

BOLT

23

51DM8

NUT

24

30H85

CLAMP

25

26GM10016

SCREW

26

26GM10020

BOLT

27

6679034

MOUNT

28

6685156

RETAINER cable tie

29

6624289

STRAP, TIE

30

24K3

PLUG

30

79K4

O RING 10

31

15KB0404

FTG HYD S Connector

31

79K4

O RING 10

32

15KB0606

FITTING, HYD CONNECTOR

32

79K6

O RING 10

33

17KB0404

FTG HYD ELBOW 90 90 degree

33

79K4

O RING 10

34

17KB0606

FITTING 90 degree

34

79K6

O RING 10

35

15KB0604

FTG HYD S CONNECTOR

35

79K4

O RING 10

36

7125156

HOSE

37

6812855

HOSE

38

7107657

HOSE

39

6805768

VALVE

40

6804251

HANDLE

41

6814607

PLATE

42

53DM6

NUT Was 1DM6 - A

43

26GM8016

SCREW

44

29CM816

SCREW
