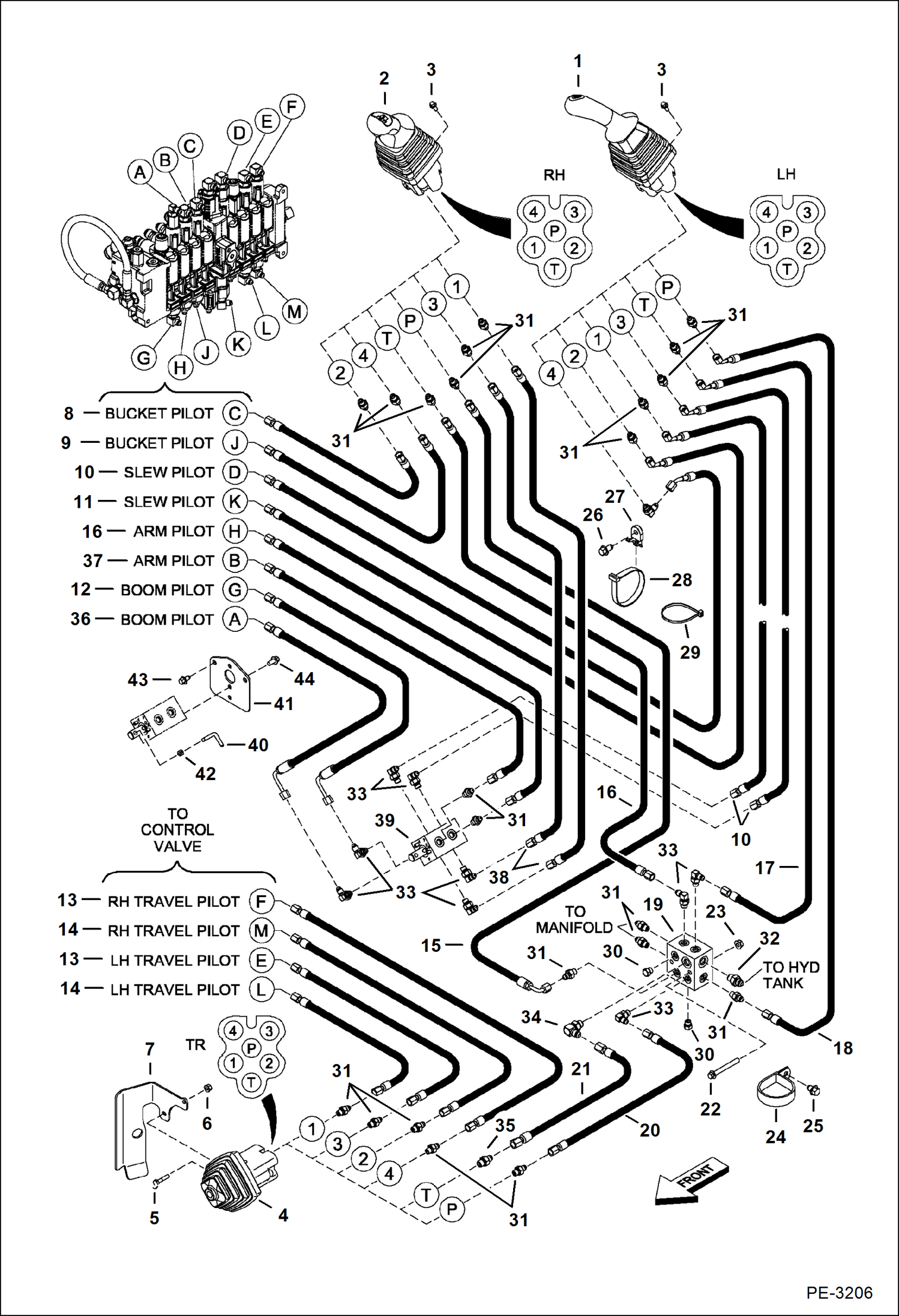

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Pilot) (ISO/STD) (S/N 562912778 & Below) HYDRAULIC SYSTEM

1

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354

2

6677895

JOYSTICK See Illustration R.H. JOYSTICK/ MS1352

3

26GM6020

SCREW

4

6677896

JOYSTICK See Illustration TRAVEL CONTROLLER/ MS1351

5

17C420

BOLT Was 1CM630 - B

6

83D4

NUT 10 Was 43DM6 - B

7

7126056

GUIDE

8

7107647

HOSE Was 6806794 - B

9

7107646

HOSE Was 6813884 - B

10

7107665

HOSE Was 6813882 - B

11

7107644

HOSE Was 6815465 - B

12

6807478

HOSE

13

7107638

HOSE 1 straight & 1 90 degree end - use with staight adapter in valve

13

7106598

HOSE 2 straight ends - use with 90 degree elbow in valve

14

7102576

HOSE 1 straight & 1 90 degree end - use with staight adapter in valve

14

7107650

HOSE 2 straight ends - use with 90 degree elbow in valve

15

7106608

HOSE Was 6807946 - B

16

7107648

HOSE Was 6813790 - B

17

7106592

HOSE Was 6578185 - B

18

7106613

HOSE Was 6803091 - B

19

6814985

BLOCK

20

7106604

HOSE Was 6815261 - B

21

6817066

HOSE Use W/15KB404 adapter in travel control

21

7107651

HOSE Use W/15KB604 adapter in travel control

22

29CM870

BOLT

23

51DM8

NUT

24

30H85

CLAMP

25

26GM10016

SCREW

26

26GM10020

BOLT

27

6679034

MOUNT Was 30H100 - B

28

6685156

RETAINER cable tie

29

6624289

STRAP, TIE

30

24K3

PLUG

30

79K4

O RING 10

31

15KB0404

FTG HYD S Connector

31

79K4

O RING 10

32

15KB0606

FITTING, HYD CONNECTOR

32

79K6

O RING 10

33

17KB0404

FTG HYD ELBOW 90 90 degree

33

79K4

O RING 10

34

17KB0606

FITTING 90 degree

34

79K6

O RING 10

35

15KB0404

FTG HYD S Connector W/Ref. 21 (6817066 hose)

35

15KB0604

FTG HYD S CONNECTOR Use W/Ref. 21 (7107651 hose)

35

79K4

O RING 10

36

7125156

HOSE

37

6812855

HOSE

38

7107657

HOSE

39

6805768

VALVE

40

6804251

HANDLE

41

6814607

PLATE

42

53DM6

NUT Was 1DM6 - A

43

26GM8016

SCREW

44

29CM816

SCREW
