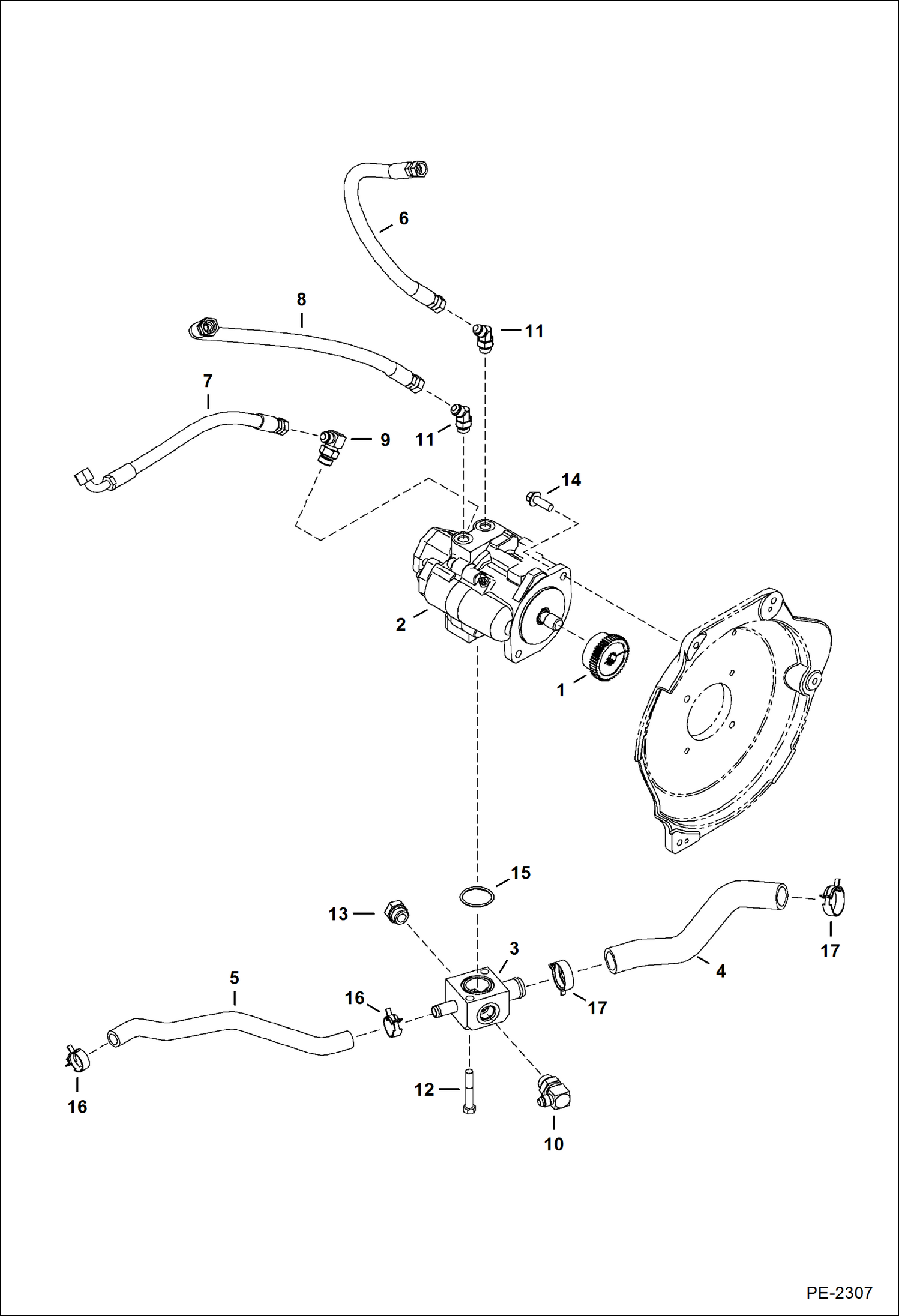

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Pump) HYDRAULIC SYSTEM

1

6676535

COUPLER

2

6698085

PUMP See Illustration HYDRAULIC PISTON PUMP/ MS2054 - Was 6685836 - A

3

6814414

MANIFOLD

4

7159242

HOSE, HYD FORMED Was 7101020 - A

5

7101112

HOSE See Illustration HYDRAULIC CIRCUITRY/ PE2288

6

7102581

HOSE

7

7104651

HOSE

8

7104652

HOSE

9

17KB0810

FITTING, HYD ELBOW

9

79K10

O RING 10

10

FITTING NLA - Was 17KB00812B - A

10

79K12

O RING 10

11

18KB0808

FTG HYD ELBOW 45

11

79K8

O RING 10

12

29CM1270

BOLT Was 1CM1270 - B

13

24K8

PLUG

13

79K12

O RING 10

14

29CM1235

BOLT

15

58K225

O RING 10

16

5HM29

HOSECLAMP hose

17

5HM42

HOSECLAMP
