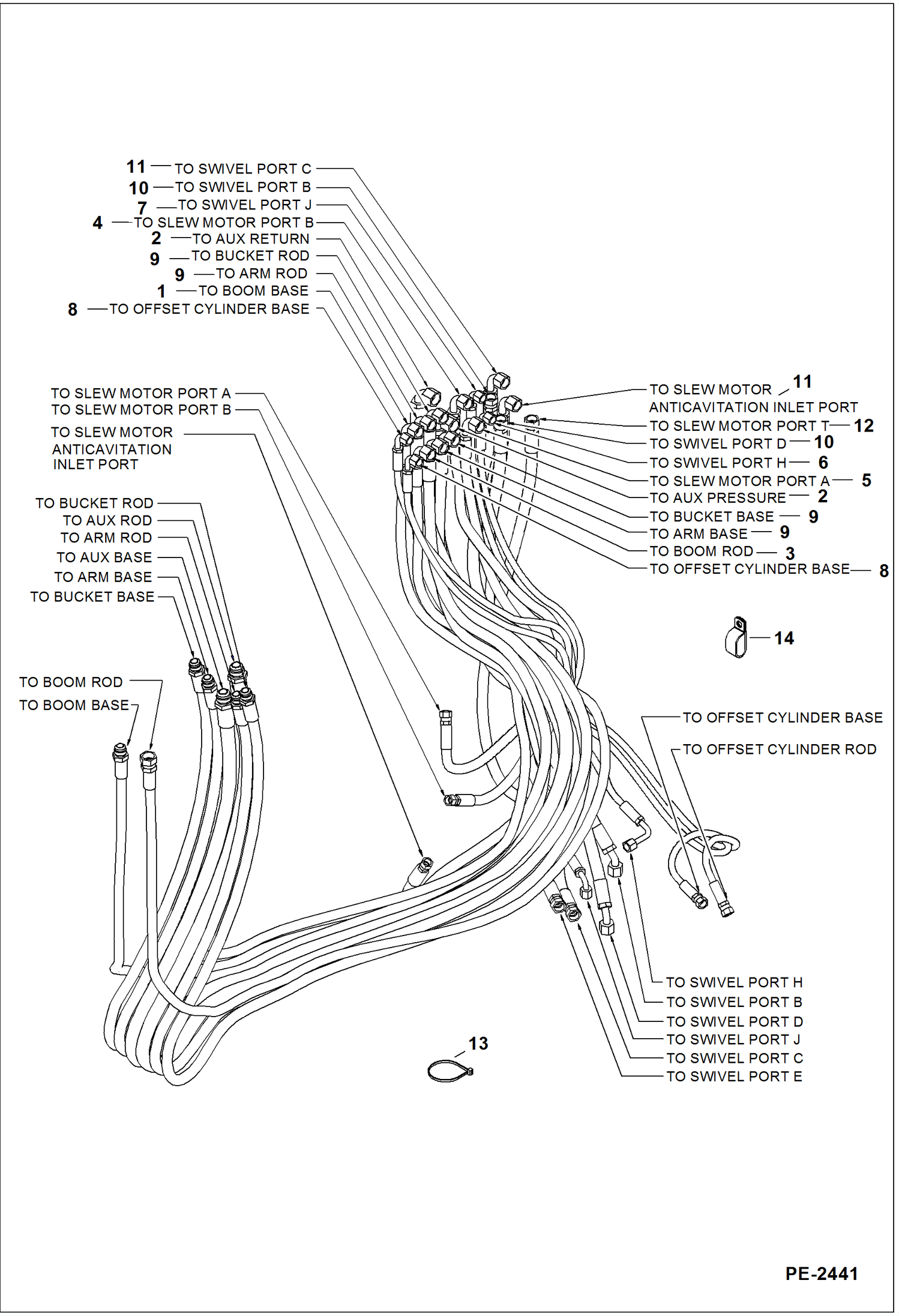

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Function Hoses) HYDRAULIC SYSTEM

1

6628581

HOSE valve to boom base

2

6807460

HOSE valve to auxiliary return valve to auxiliary pressure

3

6813914

HOSE valve to boom rod

4

6815033

HOSE valve to slew motor, port B

5

6815033

HOSE valve to slew motor port A Was - 6815034

6

6815038

HOSE valve to swivel port H

7

6815575

HOSE valve to swivel port J

8

6815739

HOSE valve to offset cylinder rod valve to offset cylinder base

9

6815874

HOSE valve to arm base arm rod valve to bucket base bucket rod

10

7103036

HOSE valve to swivel , port D

11

7104755

HOSE valve to swivel, port C & E

12

7173062

HOSE, HYD ASSY valve to slew motor, port T - Was 7104756 - A

13

6624289

STRAP, TIE

14

31H38

CLAMP
