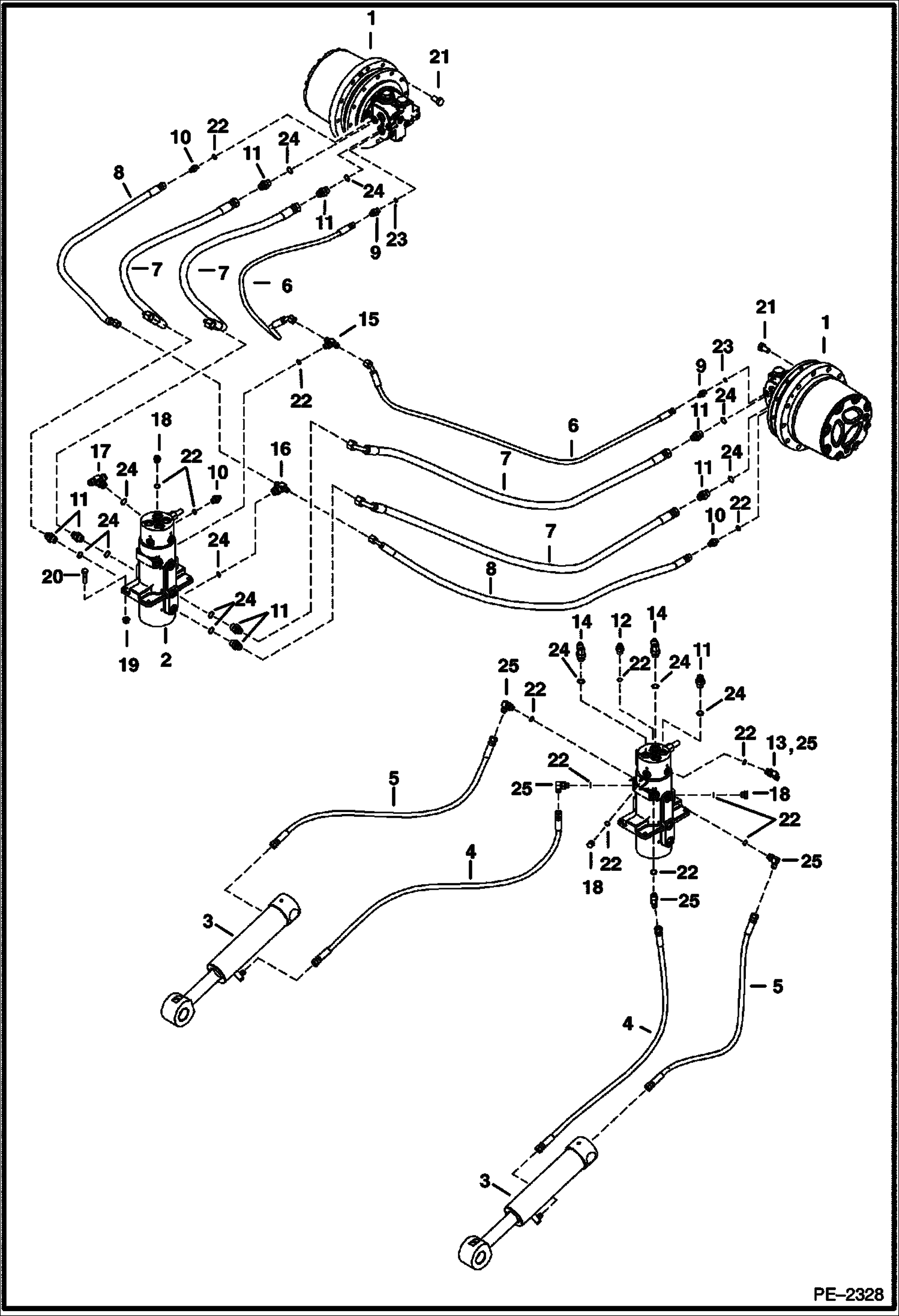

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Lower) (S/N 562912751 & Below) HYDRAULIC SYSTEM

1

6685454

MOTOR, DRIVE HYD travel

2

6811778

SWIVEL See Illustration SWIVEL JOINT/ PE1906 - assy

3

7121065

CYL ASMBLY Was 6815009 - A

4

6812230

HOSE

5

6812231

HOSE

6

7107672

HOSE 7/16 thread size - Also Order 19KB406 tee - Was 6816492 9/16 thread size - A

7

7101091

HOSE

8

7125150

HOSE Was 7103043 - B

9

15KB0404

FTG HYD S Connector W/Ref. 23

10

15KB0606

FITTING, HYD CONNECTOR W/Ref 22

11

15KB0808

FITTING, HYD CONNECTOR W/Ref 24

12

16KB0606

FTG HYD L CONNECTOR W/Ref 22

13

17KB0406

FITTING, HYD ELBOW 7/16 thread size - manifold - W/Ref 22

14

17KB0808

FITTING, HYD ELBOW W/Ref 24

15

19KB0606

TEE 9/16 thread size - used with NLA hose - W/Ref 22

15

19KB0406

FITTING, HYD TEE 7/16 thread size - Use W/ 7107672 hose - W/Ref 22

16

19KB0608

UNION W/Ref 24

17

19KB0808

Fitting Hydraulic Branch Tee W/Ref 24

18

24K5

PLUG

19

43DM10

NUT

20

53CM1040

SCREW

21

55CM1425

SCREW

22

79K6

O RING 10

23

79K4

O RING 10

24

79K8

O RING 10

25

17KB0606

FITTING 9/16 thread size - W/Ref 22
