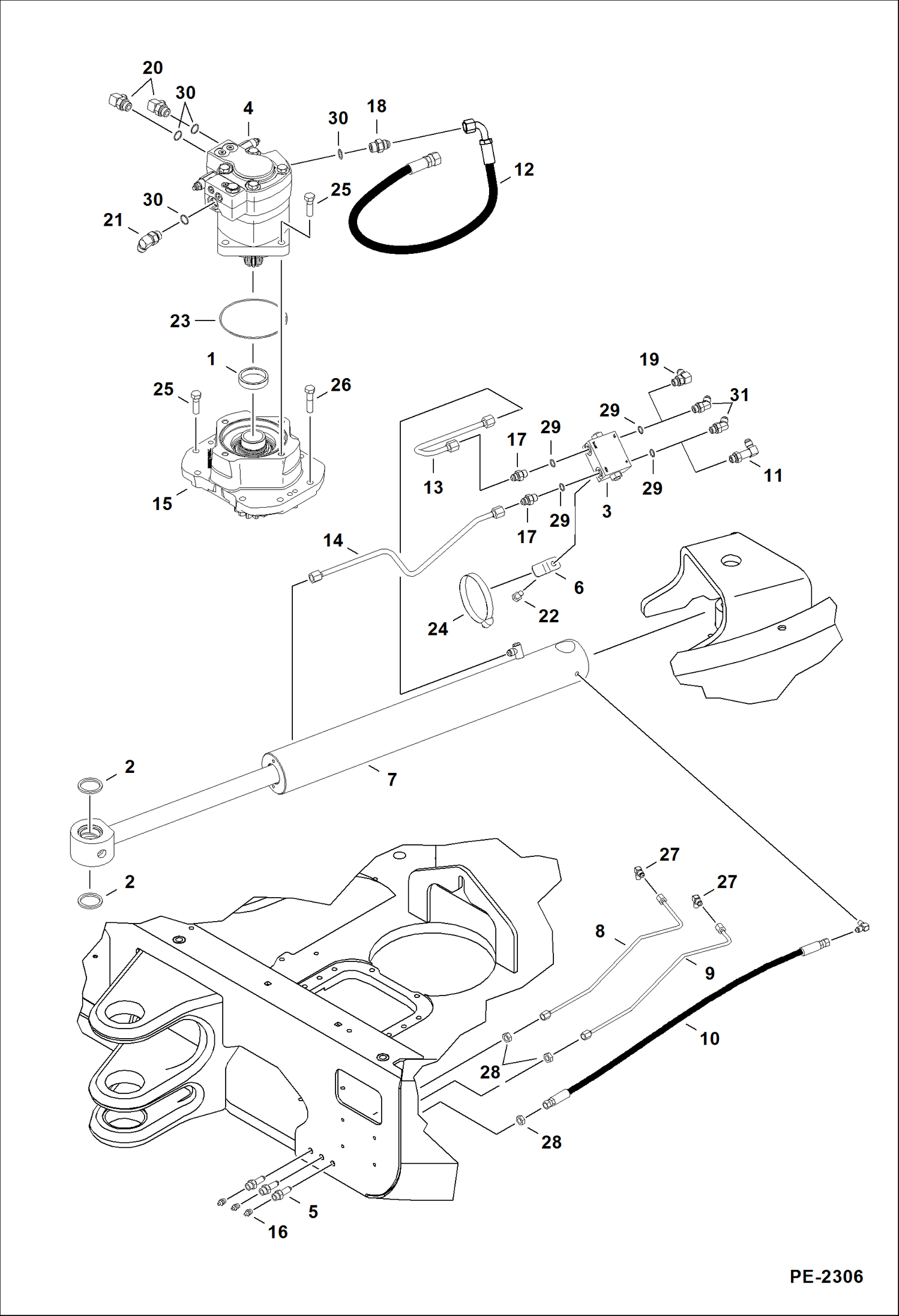

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Upper) HYDRAULIC SYSTEM

1

6513681

BEARING

2

6660075

SEAL dust

3

6676167

VALVE lock

4

7001957

MOTOR, DRIVE HYD SLEW See Illustration SWING MOTOR/ MS1847 - bearing not included with motor - Also Order (1) 6513681 bearing - Was 6687118 - A

5

6807184

FITTING Was 6801784 - D

6

6807345

MOUNT lock valve

7

CYLINDER, SWING See Illustration SWING CYLINDER/ PE3653 - NLA - 26.41'' (670.8 mm) housing length - Was 6816319 - B

7

CYLINDER, SWING See Illustration SWING CYLINDER/ PE3653 - 25.91'' (658.1 mm) housing length

8

6812177

TUBELINE

9

6812178

TUBELINE

10

6812179

HOSE

11

7107682

ELBOW Was - 6812815 - B

12

6815035

HOSE

13

7102604

TUBELINE

14

7102605

TUBELINE Use W/Ref. 7 NLA cylinder W/ 26.41'' (670.8 mm) housing length

14

7163136

TUBELINE, HYD Use W/Ref. 7 cylinder W/ 25.91'' (658.1 mm) housing length

15

7106387

CARRIER See Illustration MOTOR CARRIER/ PE1907

16

10H25

FITTING, GREASE 5 grease

17

15KB0606

FITTING, HYD CONNECTOR

18

15KB0808

FITTING, HYD CONNECTOR

19

17KB0606

FITTING

20

17KB0608

FITTING, HYD ELBOW

21

17KB0808

FITTING, HYD ELBOW

22

1CM1020

BOLT

23

25K30508

O-RING, 10 hydraulic

24

42H56

CLAMP hose

25

55CM1240

SCREW

26

55CM1250

SCREW

27

83F3

ELBOW 5

28

86F3

LOCKNUT

29

79K6

O RING 10

30

79K8

O RING 10

31

18KB0606

FITTING, HYD ELBOW
