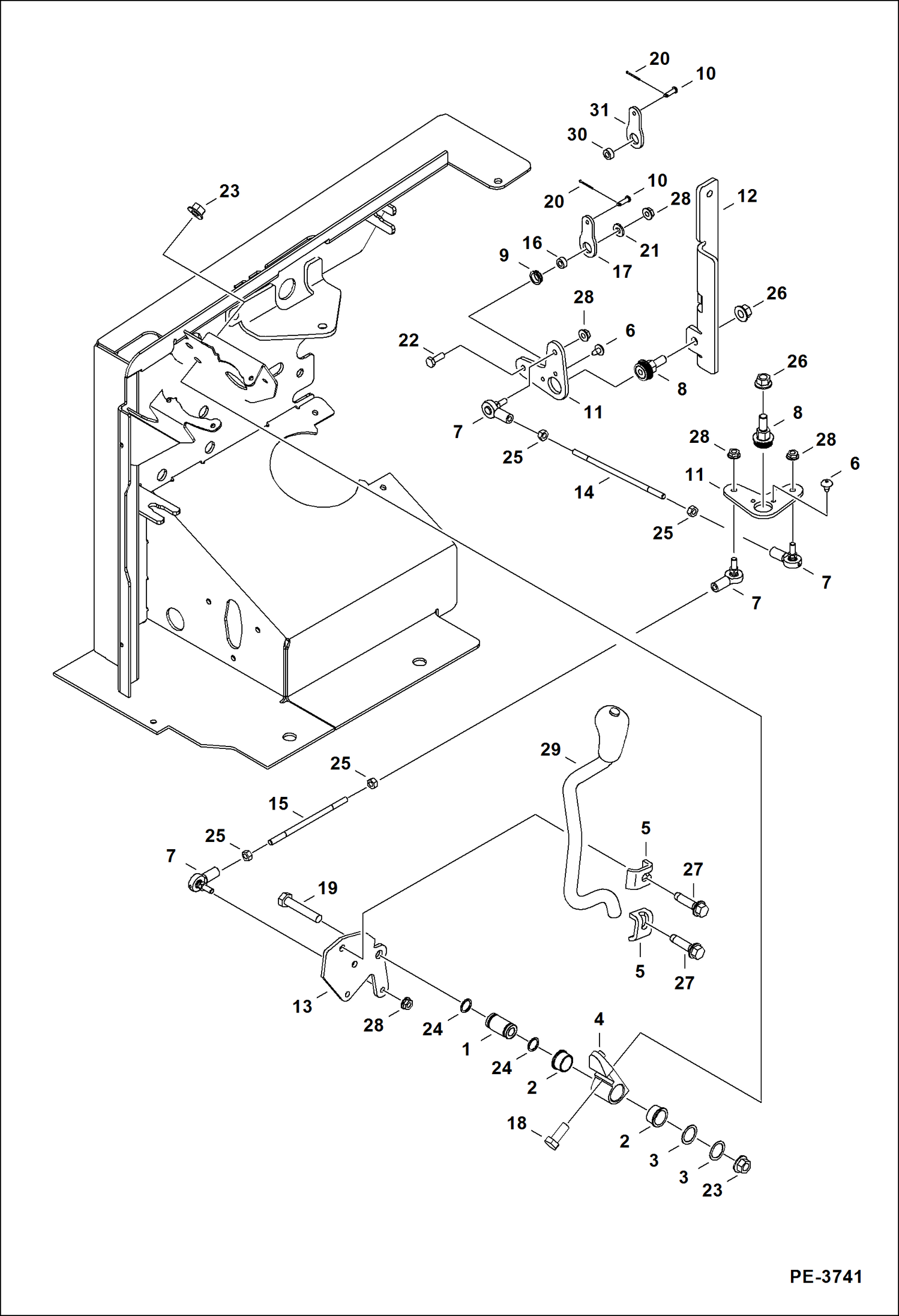

Запчасти Bobcat 430 BLADE CONTROL (S/N 562914480 & Above) CONTROLS

1

6536545

SLEEVE

2

6536801

BUSHING

3

6536802

WASHER

4

6537481

MOUNT

5

6562266

CLAMP

6

6589675

SCREW

7

6631036

JOINT

8

6675992

BEARING

9

6698186

BEARING, CLIP modified design - Use W/Ref. 16 & 17

10

6801068

PIN

11

6812938

BELLCRANK

12

7146674

BRACKET, CONTROL BLADE

13

7147269

PLATE, CONTROL BLADE

14

7147432

ROD, THREADED

15

7147432

ROD, THREADED

15

7155219

ROD, THREADED

16

7155449

SPACER modified design - Use W/Ref. 9 & 17

17

7157679

LINK, SPOOL modified design - Use W/Ref. 9 & 16

18

1CM1025

BOLT

19

1CM1055

BOLT

20

1F212

PIN

21

25E13

WASHER 5

22

18C412

BOLT

23

51DM10

NUT

24

58K015

O-RING 10

25

62D4

NUT

26

83D6

NUT 5

27

84G3720

BOLT

28

98D4

NUT

29

BLADE LEVER NLA - Order components - Was 7117039 - A

29

6675721

SWITCH momentary

29

6675831

HANDLE front half

29

6675832

HANDLE back half

29

7117038

TUBE

29

SCREW NLA - #6 x 5/8 pan head

30

SPACER NLA - original design Use W/O Ref. 9 - Order Ref. 9, 16, & 17 - Was 6808003 - A

31

LINK, SPOOL NLA - original design Use W/O Ref. 9 - Order Ref. 9, 16, & 17 - Was 7147437 - A
