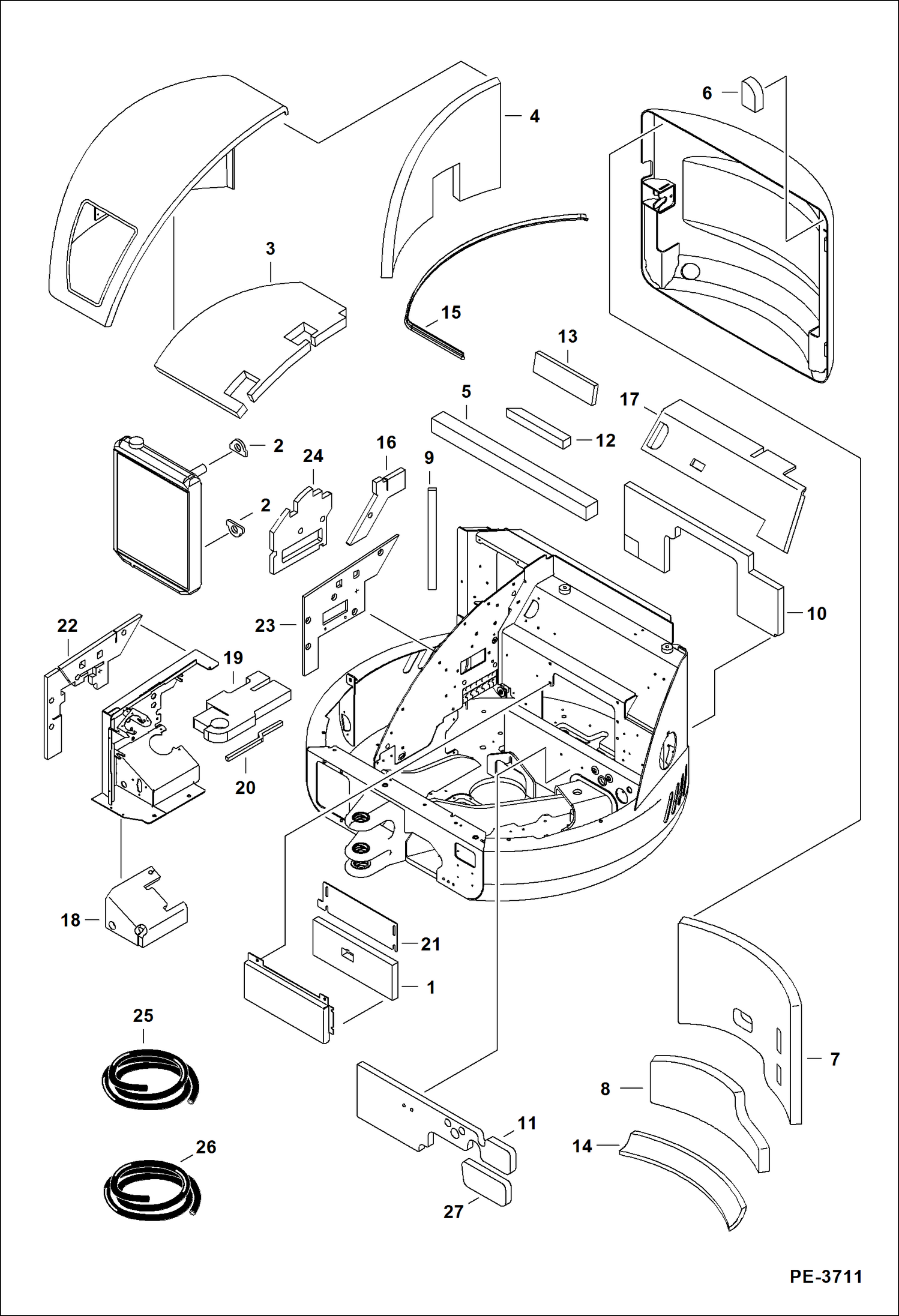

Запчасти Bobcat 430 INSULATION (S/N 562914619 & Above) MAIN FRAME

1

6812193

INSULATION seat

2

6812377

INSULATION radiator

3

6814371

INSULATION RH cover

4

6814372

INSULATION RH cover

5

6814393

INSULATION tailgate

6

6816600

INSULATION tailgate

7

7100755

INSULATION tailgate

8

7100756

INSULATION tailgate - Not Use W/ option ext. arm 430 or long arm 435

9

7102123

INSULATION RH cover

10

7103022

INSULATION engine

11

7103023

INSULATION engine

12

7103034

INSULATION RH cover

13

7114273

INSULATION ESA Only

14

7114281

INSULATION

15

SEAL BULB NLA - ESA Only - 66'' (1677 mm) long - Order Ref. 25

16

7135902

INSULATION, VALVE

17

7135962

INSULATION, ENGINE

18

7138375

INSULATION, CONSOLE

19

7148581

INSULATION

20

INSULATION NLA - 16'' (406 mm) long - Order Ref. 26

21

7150750

INSULATION, SEAT

22

7155061

INSULATION, CAB CONSOLE RH

23

7155062

INSULATION, CAB CONSOLE RH

24

7155063

INSULATION, VALVE

25

6676396

SEAL bulk - sold per foot

26

6808577

SEAL bulk - sold per foot

27

6818393

INSULATION engine
