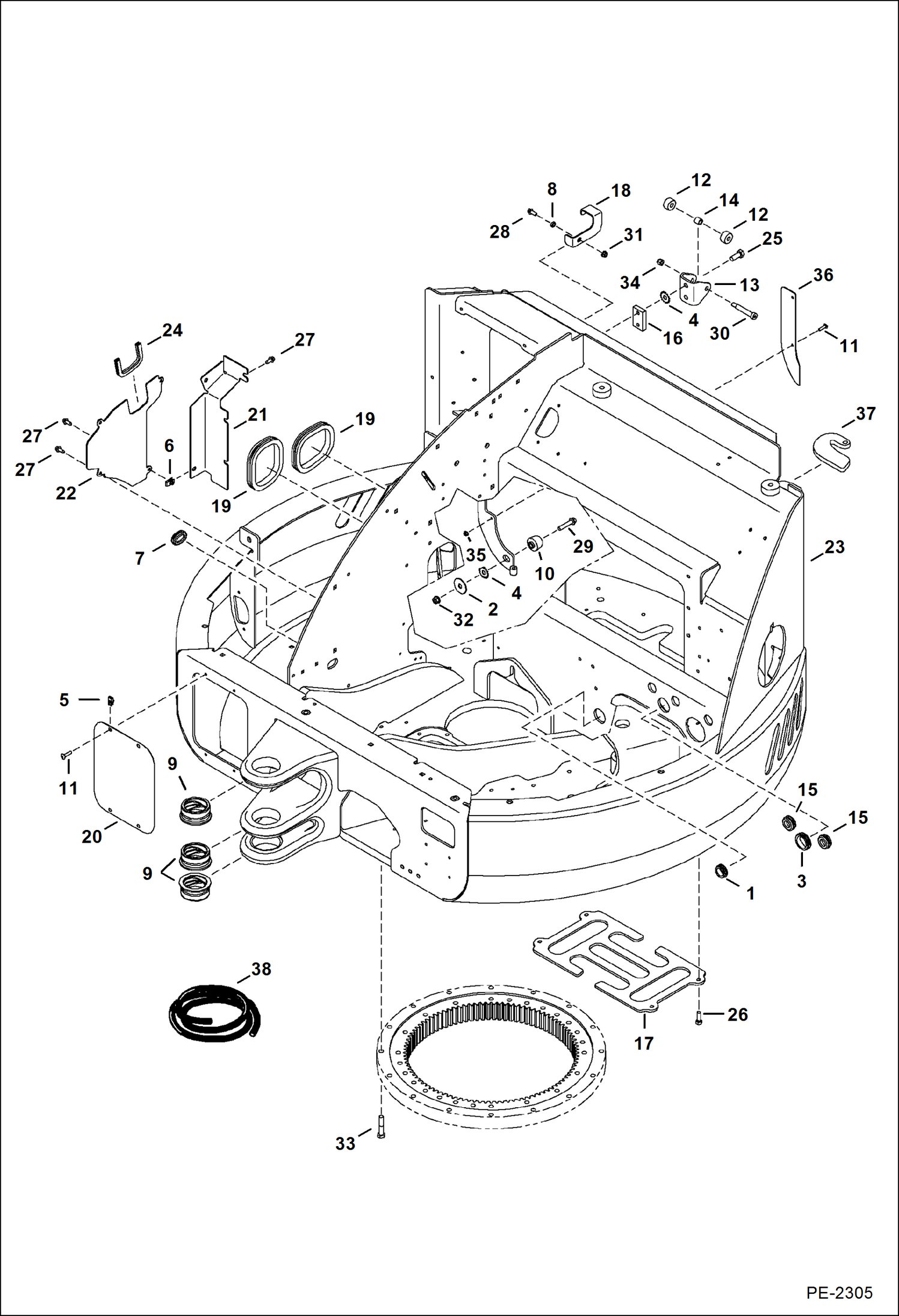

Запчасти Bobcat 430 UPPERSTRUCTURE (S/N 562914618 & Below) MAIN FRAME

1

6515603

GROMMET

2

6560899

WASHER flat

3

6670119

GROMMET

4

6675273

WASHER

5

6676026

NUT

6

6676169

NUT

7

6681886

GROMMET

8

6807220

SPACER

9

6807956

BUSHING

10

6682272

SEAL rubber

11

6809030

SCREW

12

6809726

ROLLER

13

6809727

CHANNEL

14

6809734

BUSHING

15

6810133

GROMMET

16

6810802

BAR bar

17

6810972

PLATE

18

6811886

TAILGATE LOCK

19

7124332

GROMMET Was 6814926 - A

20

6816555

SCREEN

21

7101106

COVER

22

7101107

COVER

23

UPPERSTRUCTURE NLA - Order 7102269 upperstructure, 7109894 hose, and 7109134 bracket - Was 7102847 - A

23

7102269

UPPERSTRUCTURE

24

SEAL NLA - 7.7'' (196 mm) long - Order Ref. 38 - Was 7104660 - A

25

17C820

BOLT

26

1CM1030

BOLT

27

26GM8020

SCREW

28

29CM820

SCREW

29

29CM1050

BOLT

30

38C840

BOLT

31

43DM8

NUT

32

51DM10

NUT

33

55CM1260

SCREW

34

59D6

NUT

35

43DM6

NUT

36

7110857

COVER

37

6810968

HINGE weld-on

38

6682492

TRIM bulk - sold per foot
