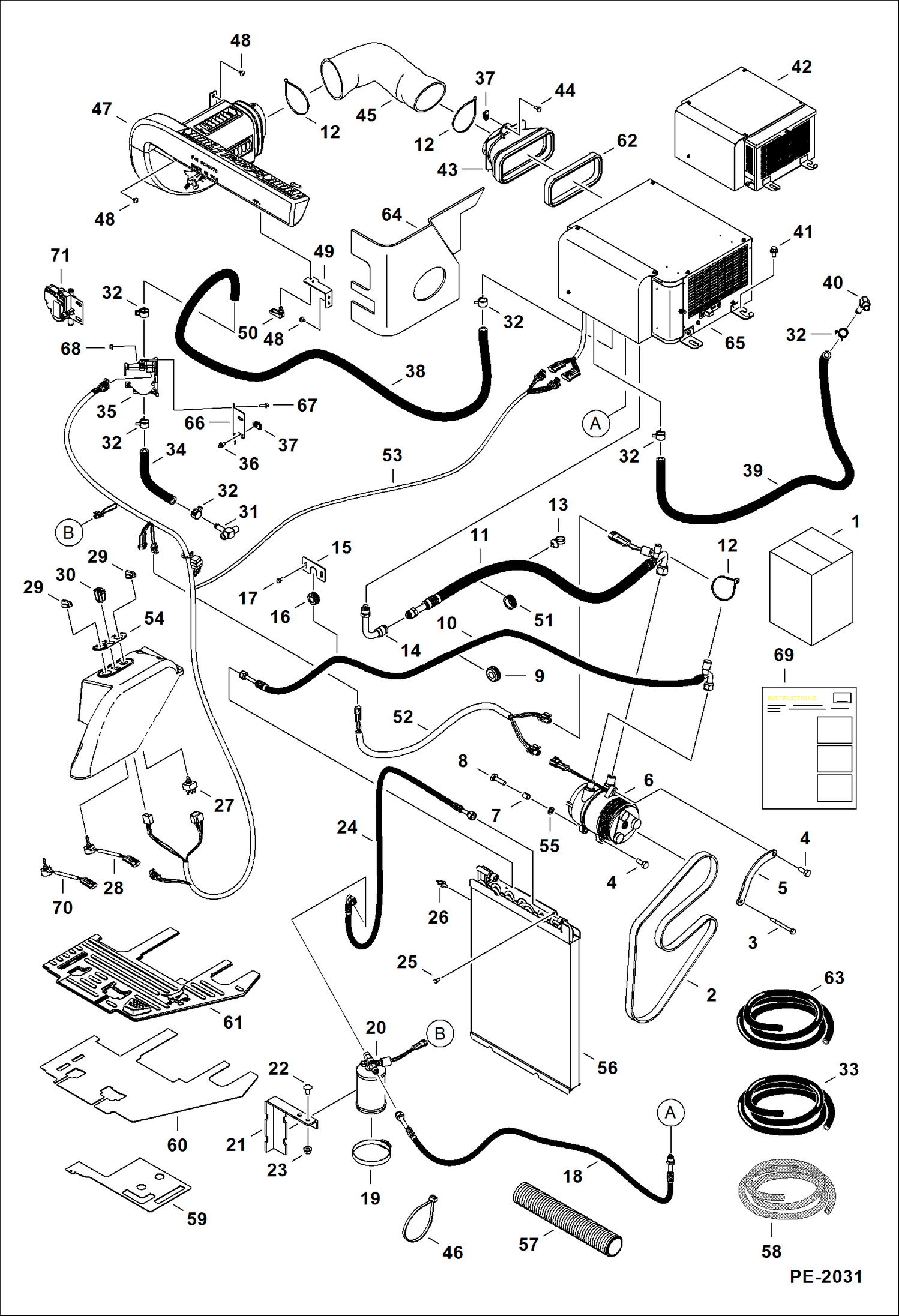

Запчасти Bobcat 430 HVAC (HVAC Kit) ACCESSORIES & OPTIONS

1

KIT HVAC NLA - W/Ref. 2-16, 18-27, 29-34, 37-54, 56-64, & 69-71 - Order 7159165 HVAC KIT - Also Order 7135887 floor plate & 6814922 Insulation - Was 6817403 - A

1

7159165

HVAC KIT W/Ref 2-16, 18-41, 43-69 - Also Order 7135887 floor plate & 6814922 Insulation - Was 7136656 - A

2

6815018

BELT

2

7101068

BELT not used on this model - used on newer models

3

1CM880

BOLT

4

5CM1025

BOLT

5

6813975

PLATE

6

6681716

COMPRESSOR, A/C

7

6732732

BUSHING

8

5CM1030

BOLT

9

6515603

GROMMET

10

6680303

HOSE

10

7001433

CAP, END charge port cap

10

7009977

O-RING #8 - Was 6675538 - A

11

6680306

HOSE W/ switch 6679085

11

6679085

SWITCH

11

7001433

CAP, END charge port cap

11

7009978

O-RING #10 - Was 6675825 - A

12

6624289

STRAP, TIE

13

6675734

STRAP, TIE button head

14

6684649

ADAPTER

15

6813191

PLATE

16

6681567

GROMMET

17

SCREW not in kits

18

6680305

HOSE

18

7009976

O-RING #6 - Was 6675824 - A

19

42H56

CLAMP

20

6680311

RECEIVER W/ switch 6686358

20

SWITCH NLA - HPCO - Was 6686358 - A

21

7164894

BRACKET, DRIER Was 6813715 - A

22

28CM1020

BOLT

23

43DM10

NUT

24

6680304

HOSE

24

7009976

O-RING #6 - Was 6675824 - A

25

1CM612

BOLT

26

6682990

CLIP

27

6675176

SWITCH blower

28

6693148

RESISTOR marked W/red tape - Used only W/Ref. 35 valve W/plastic valve body - in kit 7136656

29

6675177

KNOB

30

7169112

SWITCH, ROCKER A/C Was 6719176 - A

31

6682150

TEE

32

5HM20

CLAMP

33

6565977

HOSE bulk - sold per foot

34

HOSE NLA - 9'' (228,6 mm) - Order Ref. 33

35

7003456

VALVE, MOTORIZED ASSY heater valve W/plastic valve body - in kit 7136656 - notice Ref. 71 for valves W/metal valve body - Was 6693147 - B

36

29CM612

BOLT, FLANGED not in kit 6817403

37

6676026

NUT

38

HOSE NLA - 78'' (1981,2 mm) - Order Ref. 33

39

HOSE NLA - 72'' (1828,8 mm) - Order Ref. 33

40

6731085

ELBOW

41

26GM10020

BOLT

42

6678966

BOX See Illustration HVAC/ MS1834 (HVAC W/top access filter) - in kit 6817403

43

6681881

DUCT W/Ref 62

44

6803202

SCREW

45

6681653

HOSE

46

6610510

TIE

47

DUCT See Illustration HEATER/HVAC/ PE2865

48

6589675

SCREW

49

6814194

BRACKET

50

6681878

LATCH

51

7136776

GROMMET Was 6681528 - A

52

6814228

HARNESS

53

6814229

HARNESS

53

6670312

SWITCH, MAGNETIC relay

54

6808433

DECAL heater

55

29E6

WASHER not in kit 6817403 - Was 28E6 - A

56

7135618

CONDENSER Was 6678831 - A

57

CONDUIT NLA - 7.20'' (182,9 mm) - Order Ref. 58

58

6643249

CONDUIT bulk - sold per foot

59

7157774

INSULATION, FLOOR Was 6814922 - A

60

6684544

UNDERLAYMENT

61

7121607

FLOORMAT, CAB

62

SEAL NLA - 22'' (559 mm) long - Order Ref 63

63

6681884

SEAL bulk - sold per foot

64

6684896

INSULATION

65

7135617

HVAC BOX See Illustration HVAC/ MS1474 (W/front access filter) - in kit 7136656

66

7140438

BRACKET

67

29CM616

BOLT

68

43DM6

NUT

69

6904990

INSTRUCTIONS Was 6902519 - A

70

6675846

POTENTIOMETER in kit 6817403 - Used only W/Ref. 71 valve W/metal valve body

71

7125073

VALVE heater valve W/metal valve body - in kit 6817403 - Was 6685459 - A
