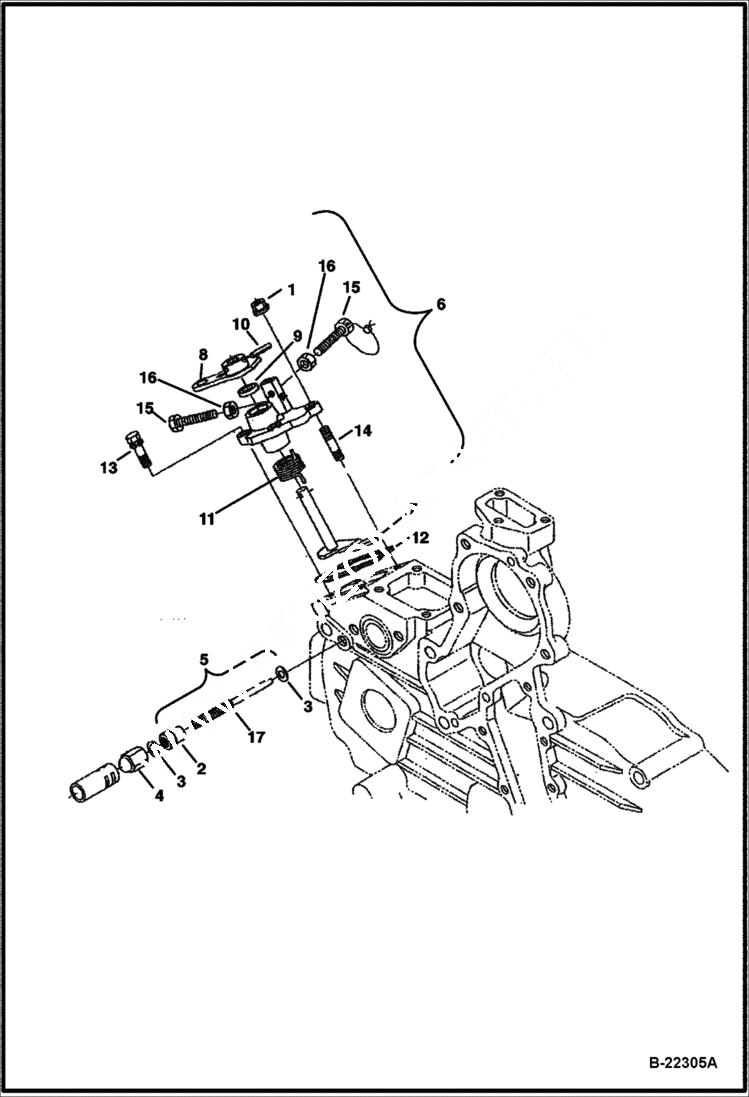

Запчасти Bobcat 430 SPEED CONTROL PLATE (S/N 562711001 & Above) POWER UNIT

1

6680831

NUT

2

3974971

NUT

3

3974972

GASKET

4

6655223

NUT

5

6684836

BOLT, ADJUSTING assy - W/Ref. 2, 3 & 17

6

6685526

PLATE, CONTROL assy - W/Ref. 7-11, 15 & 16 - Was 6684837 - A

7

6684838

LEVER

8

6684839

LEVER

9

6685476

SEAL

10

6598098

PIN

11

6684823

SPRING Was 6684840 - A

12

6684841

GASKET

13

1CM620

BOLT Was 4CM620 - A

14

6652764

STUD Was 3974462B - A

15

7010195

BOLT, ADJUSTMENT Was NSS - D

16

1DM6

NUT Was NSS - D

17

SCREW NSS - order Ref. 5
