Запчасти Bobcat 430 IDLE APPARATUS (S/N 562711001 & Above) POWER UNIT

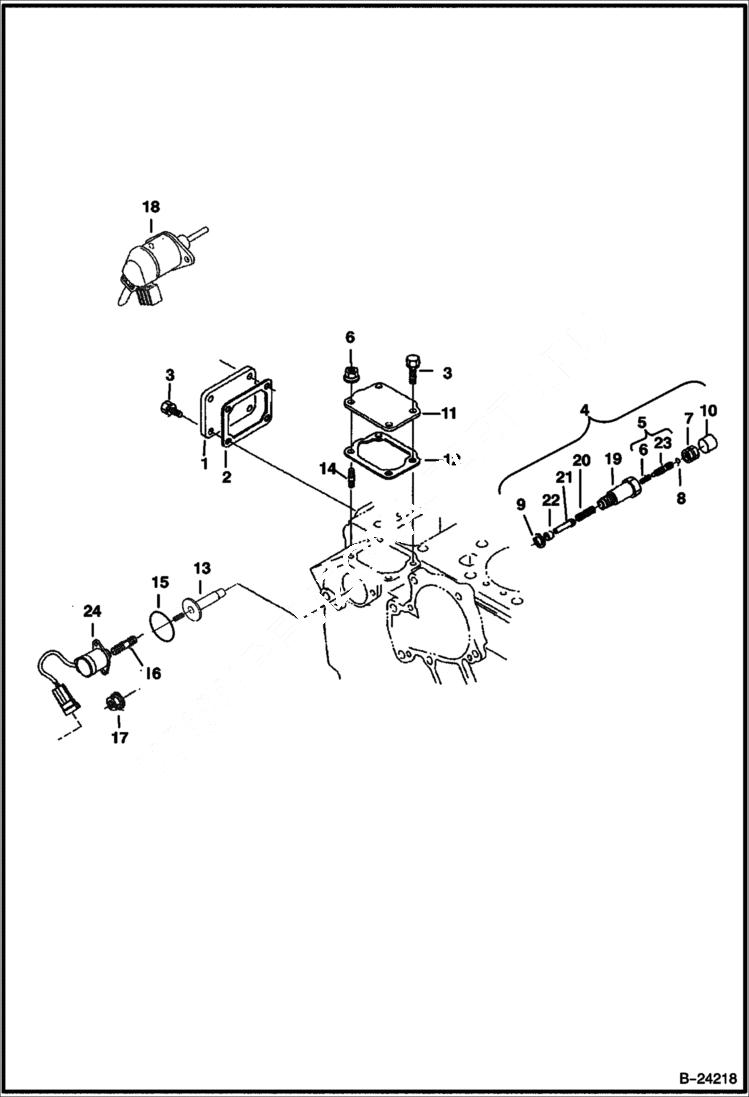

Схема запчастей Bobcat 430 - IDLE APPARATUS (S/N 562711001 & Above) POWER UNIT

Артикул

Название

Примечание

Количество

1

6684751

COVER

2

6666783

GASKET Was 6684752 - A

3

1CM616

SCREW Was 4CM616 - A

4

6686334

IDLE APPARATUS assy - fuel - W/Ref. 6-10

5

6685513

BOLT, ADJ.

6

6684827

NUT

7

6684817

NUT

8

6684891

SEAL

9

6684818

SEAL

10

6684819

CAP

11

6685500

COVER

12

6684841

GASKET Was 6684824 - A

13

6684825

GUIDE, SOLENOID

14

6683087

STUD

15

6677915

SEAL

16

6652764

STUD Was 3974462B - A

17

6670533

NUT Was 6653561 - A

18

SOLENOID NLA -assy - fuel shut off- W/molded connector - order Ref. 24

19

PLUG NSS - order Ref. 4

20

SPRING NSS - order Ref. 4

21

PIN NSS - order Ref. 4

22

COLLAR NSS - order Ref. 4

23

BOLT NSS - order Ref. 5

24

6691498

SOLENOID, SHUTOFF FUEL 240 mm (9.45'') lead

Выбрано товаров: 24
