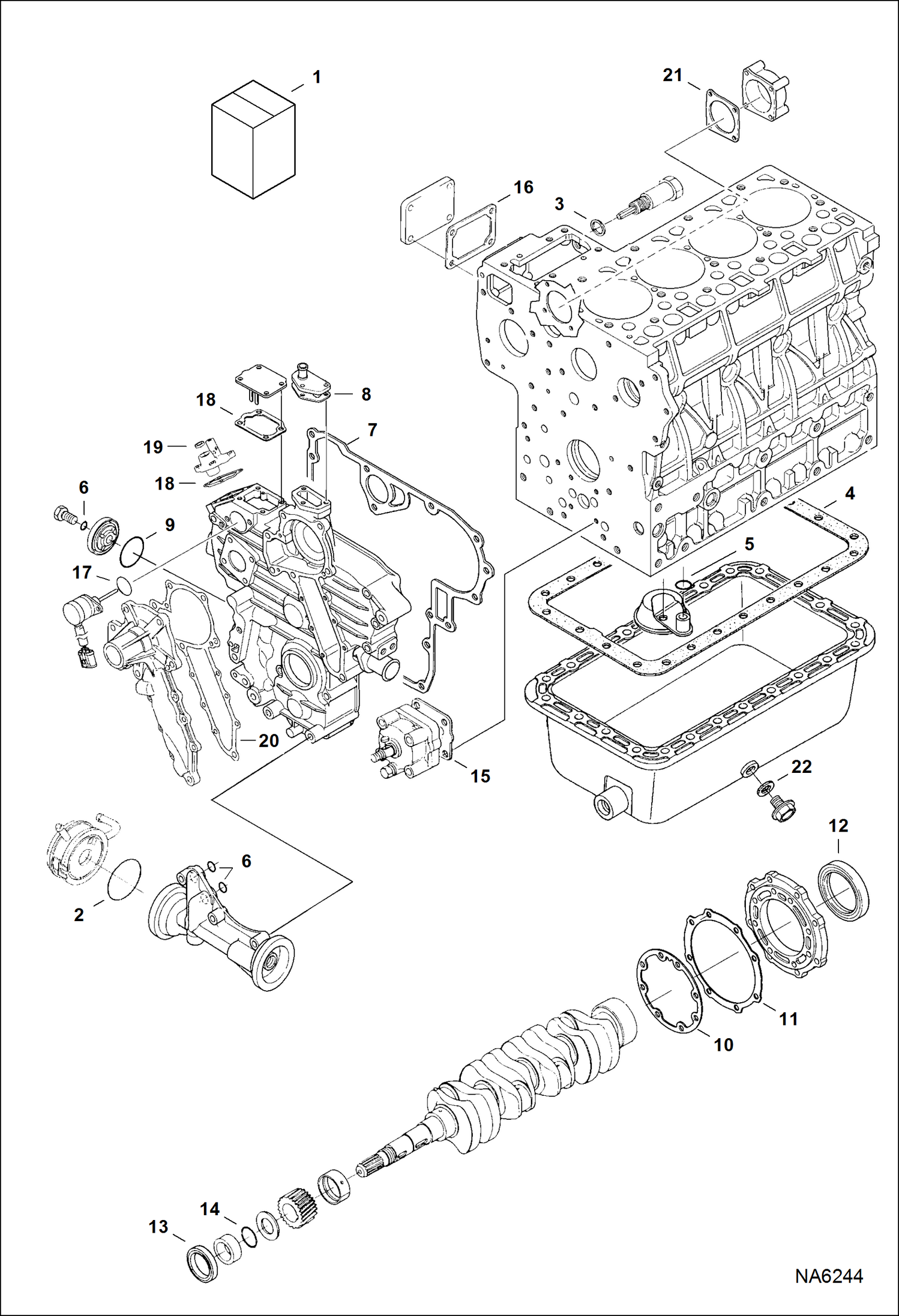

Запчасти Bobcat 430 LOWER GASKET KIT (S/N E/ AA0001 & Above) (S/N 562711001 & Above) POWER UNIT

1

7013263

KIT, GASKET ENG LOWER

2

6698244

ORING not required

3

6684818

SEAL See Illustration IDLE APPARATUS/ B24218 - idle adj. bolt

4

6666817

GASKET See Illustration OIL PAN/ B22291A - oil pan

5

6684754

O-RING See Illustration OIL PAN/ B22291A - oil screen - Was 6685467 - B,D

6

6685466

O-RING See Illustration GEARCASE/ NA6217 - gear case

7

7010599

GASKET, GEARCASE See Illustration GEARCASE/ NA6217 - gear case

8

6666803

GASKET See Illustration GEARCASE/ NA6217 - return flange

9

6684769

O-RING See Illustration GEARCASE/ NA6217 - cover

10

6684788

GASKET See Illustration PISTON & CRANKSHAFT/ B22684 - bearing case

11

6666814

GASKET See Illustration PISTON & CRANKSHAFT/ B22684 - case cover

12

6684789

SEAL See Illustration PISTON & CRANKSHAFT/ B22684 - oil

13

7024826

SEAL, OIL See Illustration PISTON & CRANKSHAFT/ B22684 - oil - oil frt main - Was 6631664

14

3974577

O RING See Illustration PISTON & CRANKSHAFT/ B22684 - crankshaft frt

15

6666782

GASKET See Illustration OIL PUMP/ B22297A - oil pump

16

6666783

GASKET See Illustration IDLE APPARATUS/ B24218 - pump cover

17

6685465

O-RING See Illustration IDLE APPARATUS/ B24218 - stop solenoid

18

6684841

GASKET See Illustration SPEED CONTROL PLATE/ B22305A See Illustration IDLE APPARATUS/ B24218 - plate

19

6685476

SEAL See Illustration SPEED CONTROL PLATE/ B22305A - speed control lever

20

6684870

GASKET See Illustration WATER PUMP/ B22311A - water pump

21

6692386

GASKET See Illustration FUEL CAMSHAFT & GOVERNOR SHAFT/ B24217 - fuel camshaft cover

22

6680484

GASKET See Illustration OIL PAN/ B22291A - drain plug
