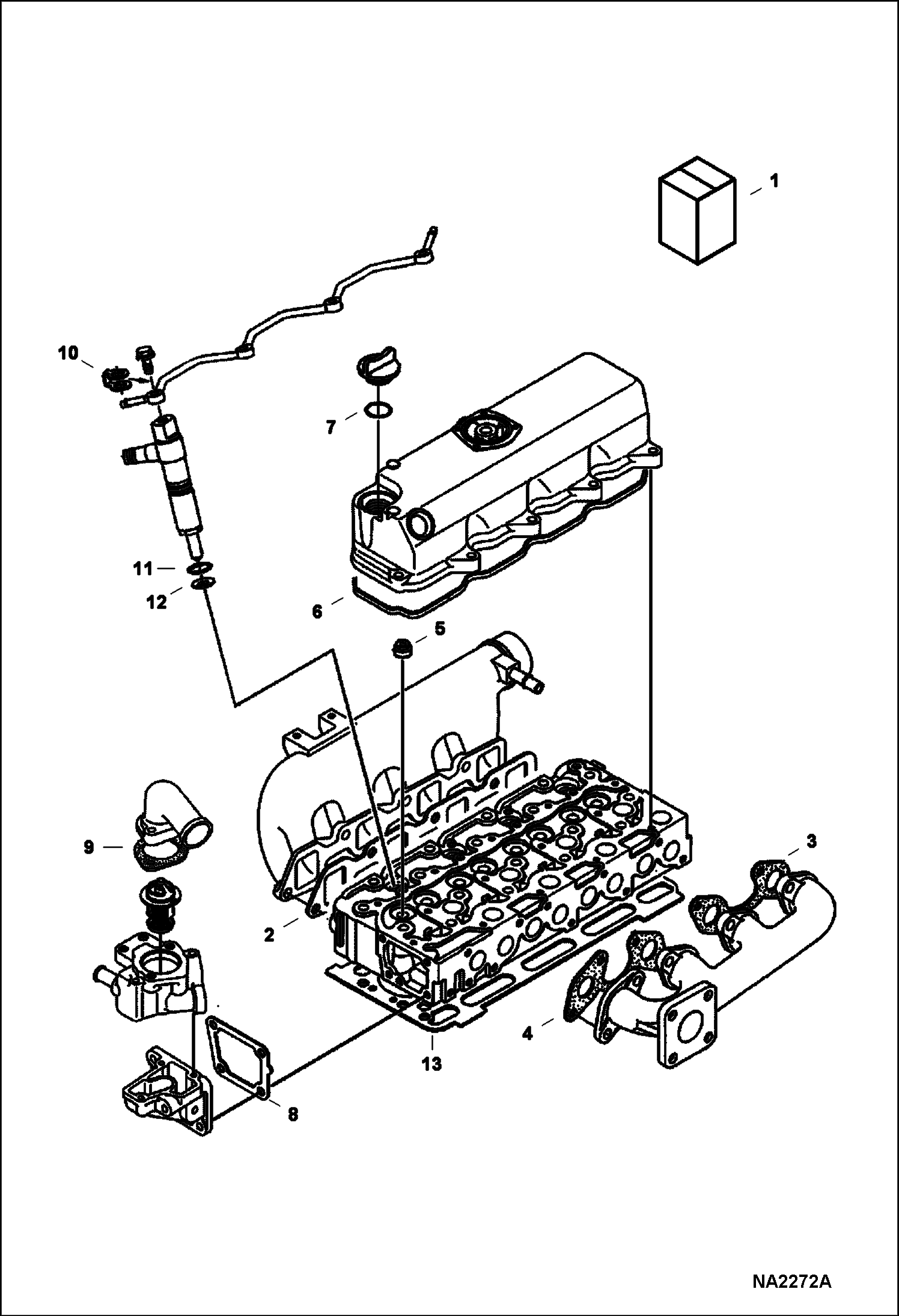

Запчасти Bobcat 430 UPPER GASKET KIT (S/N 562711001 & Above) POWER UNIT

1

6689012

KIT, GASKET ENG UPPER Ref. 2-12 - does not include head gasket

2

6684877

GASKET See Illustration INLET MANIFOLD/ B22314A - intake manifold

3

6666791

GASKET See Illustration EXHAUST MANIFOLD/ B22315A - exhaust manifold - rear - Was 6666781 - B,D

4

6666781

GASKET See Illustration EXHAUST MANIFOLD/ B22315A - exhaust manifold - front - Was 6666791 - B,D

5

6653830

SEAL, STEM VALVE See Illustration VALVE & ROCKER ARM/ B22313A

6

6684780

GASKET See Illustration HEAD COVER/ B22294A - rocker arm cover

7

6684782

O-RING See Illustration HEAD COVER/ B22294A - oil filler

8

6666802

GASKET See Illustration WATER FLANGE & THERMOSTAT/ B24222 - water flange

9

6684863

GASKET See Illustration WATER FLANGE & THERMOSTAT/ B24222 - thermostat cover

10

6685498

GASKET See Illustration NOZZLE HOLDER & GLOW PLUG/ B24221 - overflow pipe

11

6670769

O-RING See Illustration NOZZLE HOLDER & GLOW PLUG/ B24221

12

6969824

GASKET, NOZZLE INJ See Illustration NOZZLE HOLDER & GLOW PLUG/ B24221

13

GASKET See Illustration CYLINDER HEAD/ B22292A - cylinder head
