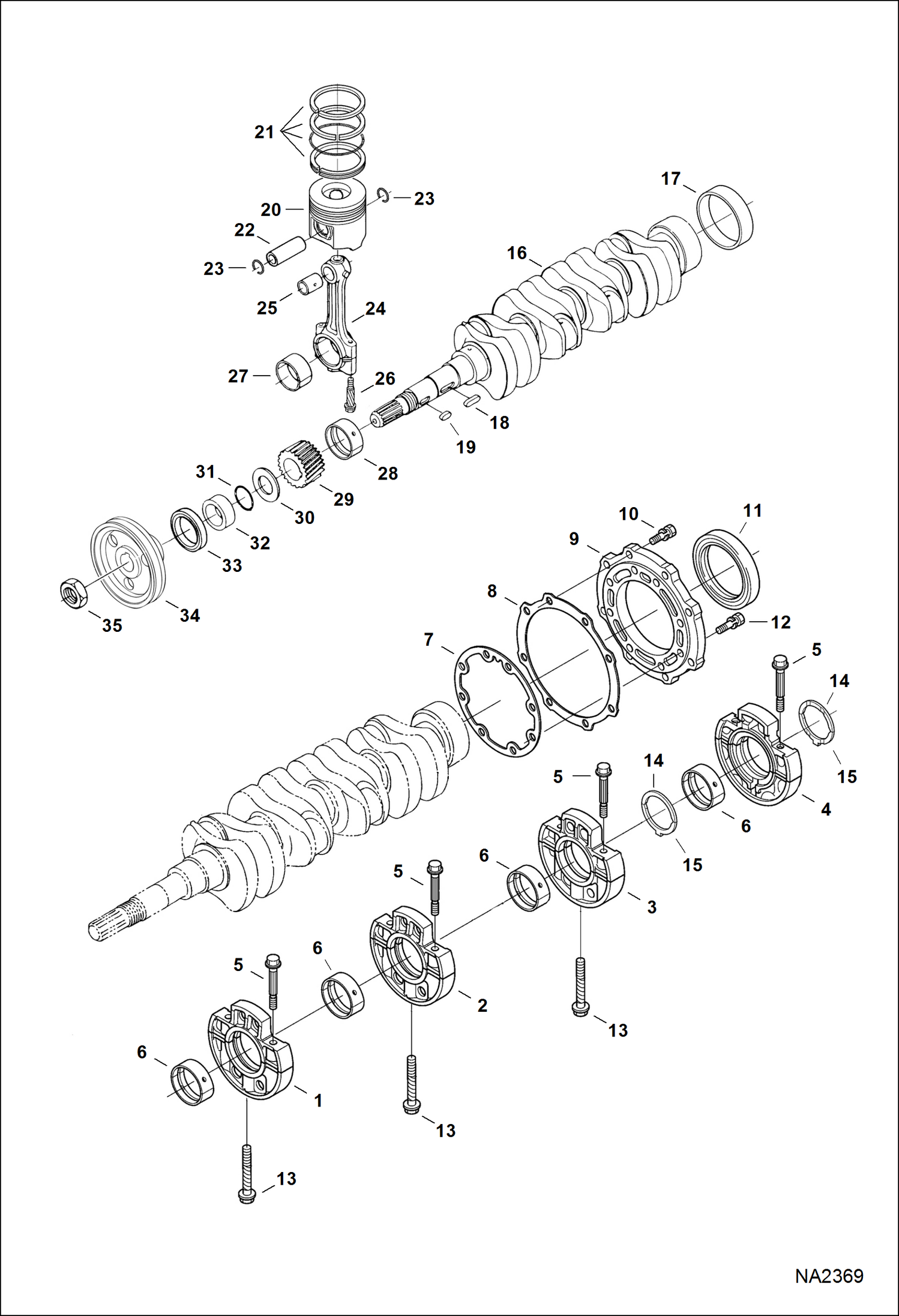

Запчасти Bobcat 430 PISTON & CRANKSHAFT (Engine S/N 3R9999 & Below) (S/N 562511001 & Above) POWER UNIT

1

6655168

CASE W/Ref. 5

2

6655169

CASE W/Ref. 5

3

6655170

CASE W/Ref. 5

4

6655163

CASE W/Ref. 5

5

6655164

BOLT

6

6655186

BEARING std

6

6655240

BEARING -0.20mm

6

6655241

BEARING -0.40mm

7

6684788

GASKET Was 6667427 - A

8

6666814

GASKET

9

6655166

COVER

10

1CM825

BOLT Was 4CM825 - A

11

6684789

SEAL oil

12

4CM828

BOLT

13

6653821

BOLT

14

6653865

WASHER, THRUST std

14

6654002

WASHER, THRUST +0,20 mm

14

6654003

WASHER, THRUST +0,40 mm

15

3974945

WASHER, THRUST std

15

6654715

WASHER, THRUST +0.20mm

15

6654716

WASHER +0.40mm

16

6684806

CRANKSHAFT W/Ref. 17

17

6653859

SLEEVE Was 6684807 - A

18

6684809

KEY

19

3974546

KEY

20

6685090

PISTON std (05) (1G790-2111)

20

6685091

PISTON +.25 mm (05) (1G790-2111 OS25)

20

6685092

PISTON std (00) (1G790-2112)

20

6685093

PISTON +.25 (00) (1G790-21910) - A

20

6685110

PISTON std (10) (1G790-2113)

20

6685094

PISTON +.25 mm (10) (1G796-2113 OS25)

21

6685095

RING, PISTON std (1G790-21052)

21

6685096

PISTON RING +0.25mm (1G790-21090)

22

6655179

PIN, PISTON ENG

23

6655180

CIRCLIP Was 6684805 - A

24

6655181

ROD, CONNECTING W/Ref. 6, 7 & 8

25

6655243

BUSHING

26

BOLT NLA - Order 2 of 7020998 bolt and be advised of different torque specs

27

7015270

BEARING, ENG ROD CONNECTING rod - std. - Was 6655183 - A

27

6655236

BEARING rod (-0,20 mm)

27

6655237

BEARING rod (-0,40 mm)

28

6655185

BEARING std

28

3975017

MAIN BRG -0.20mm - Was 6677639 - A

28

6655239

BEARING -0.40mm

29

6684808

GEAR

30

6653861

SLINGER, OIL Was 6598141 - A

31

3974577

O RING

32

3975337

COLLAR

33

7024826

SEAL, OIL Was 6654710 - oil frt main - Was 6631664 - A

34

6684853

PULLEY

35

3974671

NUT
