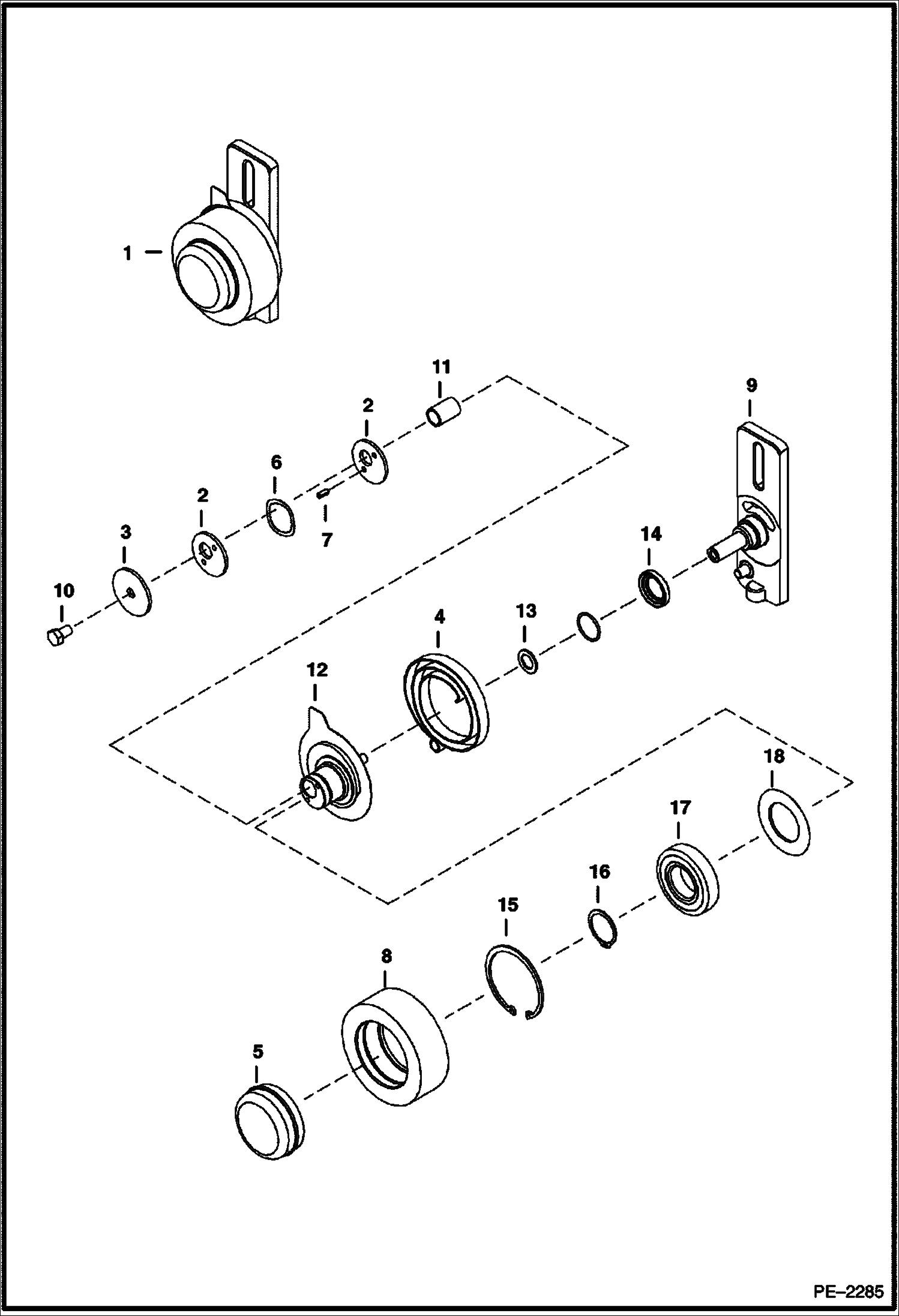

Запчасти Bobcat 430 IDLER (S/N 562711001 & Above) POWER UNIT

1

7101660

IDLER assy

2

6705231

WASHER

3

6705232

WASHER

4

6705491

SPRING

5

6708770

CAP dust

6

6710585

WASHER

7

6713370

PIN

8

7101660

IDLER Was 6814587 - A

9

7101662

BRACKET

10

1C610

BOLT

11

6682442

SLEEVE

12

6814586

HUB assy - W/Ref. 10 & pin

13

6703168

BEARING thrust

14

6685735

SEAL

15

6658847

RING retainer

16

6658536

RING snap

17

6668114

BEARING

18

6664209

SEAL
