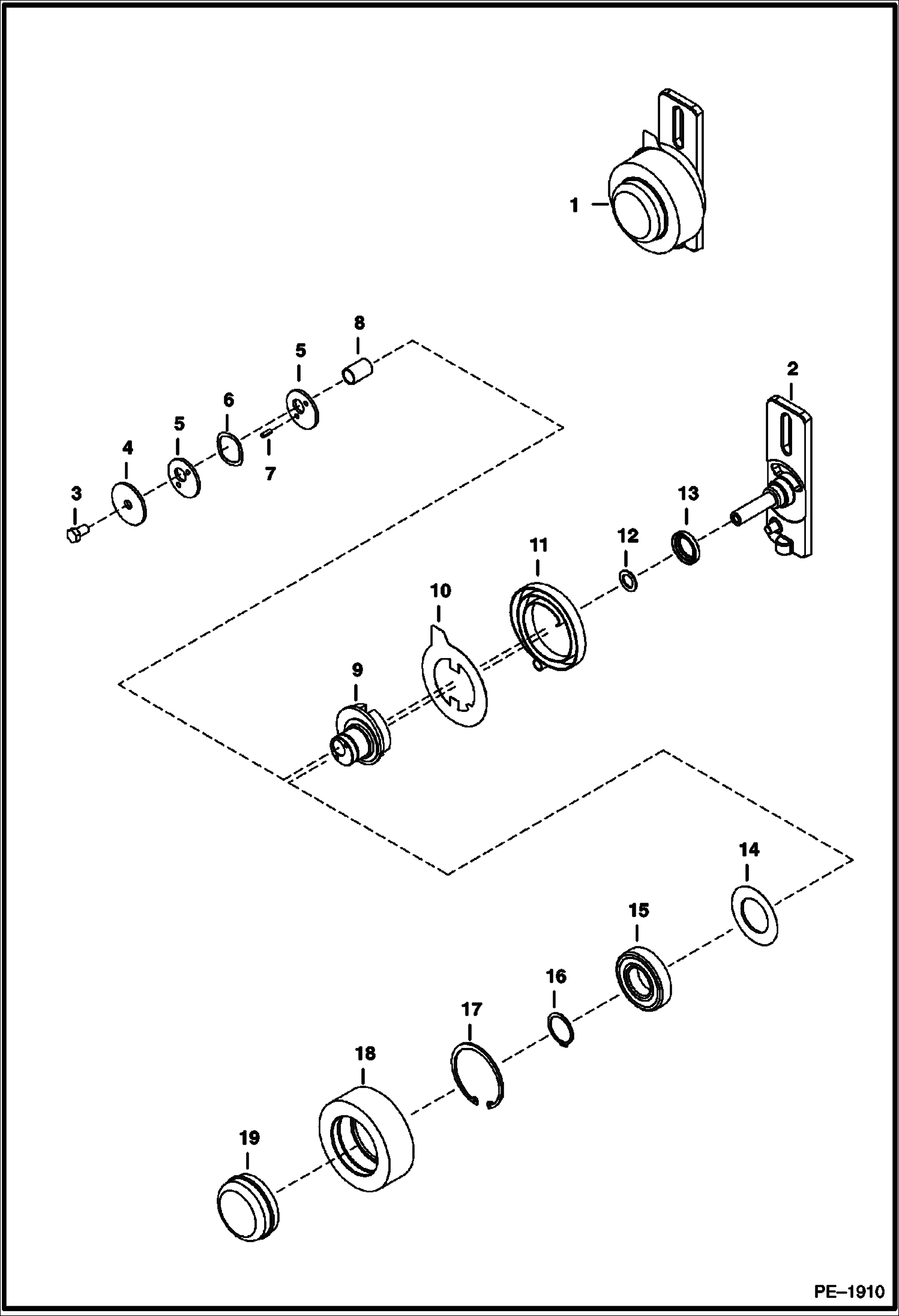

Запчасти Bobcat 430 IDLER (S/N 562511001 & Above) POWER UNIT

1

IDLER See Illustration IDLER/ PE2285 assy - Order 7101660 - Was 6810954 - A

2

BRACKET NLA - Was 6810955 - A

3

17F10

SCREW

4

6705232

WASHER

5

6705231

WASHER

6

6710585

WASHER

7

6713370

PIN

8

6682442

SLEEVE

9

6814586

HUB assy - W/Ref. 10 & pin

10

PLATE NSS - order Ref. 9

11

6705491

SPRING

12

6703168

BEARING thrust

13

6685735

SEAL Was 6661112 - A

14

6664209

SEAL

15

6668114

BEARING

16

6658536

RING snap

17

6658847

RING retainer

18

6704391

PULLEY

19

6708770

CAP dust
