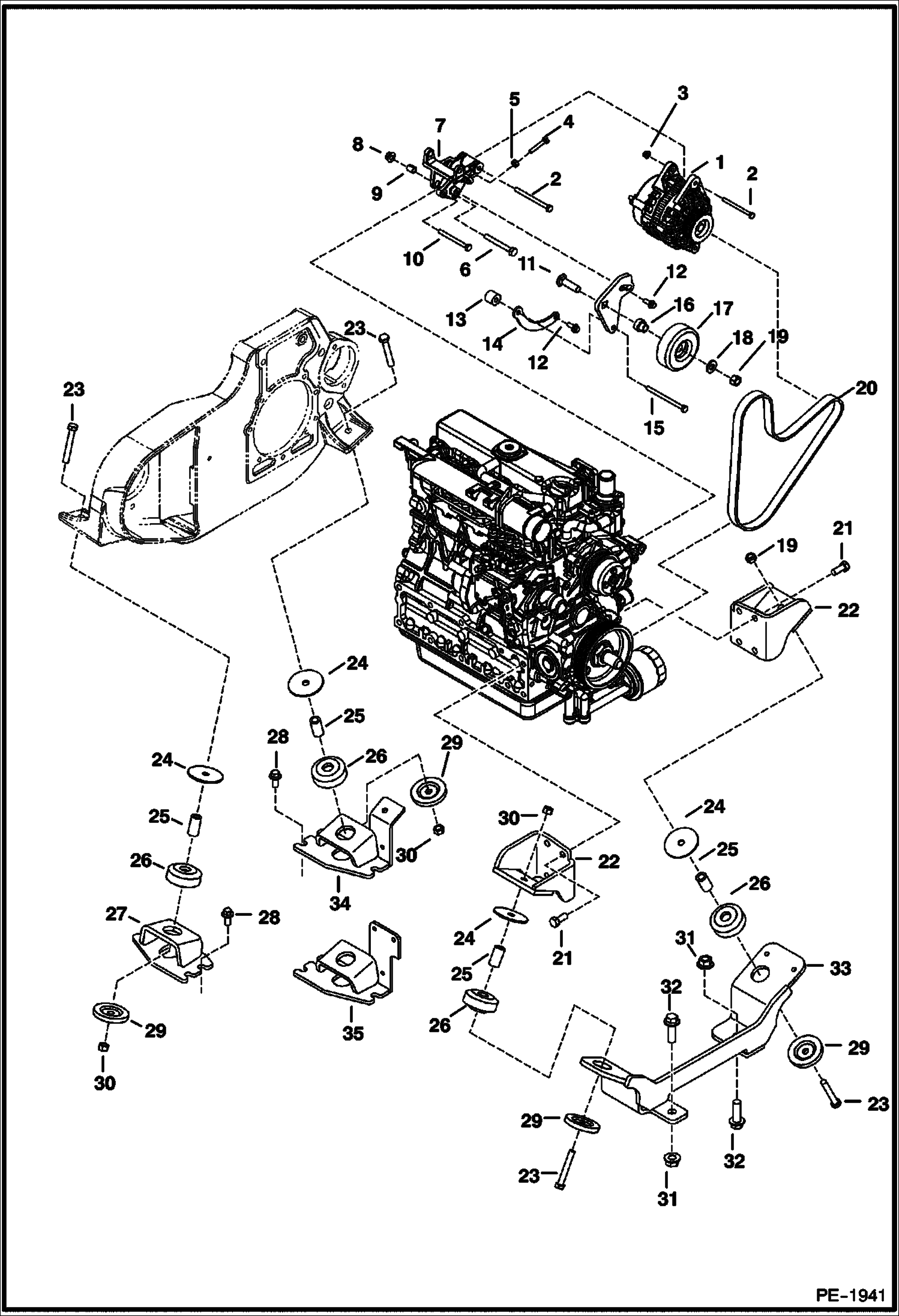

Запчасти Bobcat 430 ENGINE & ATTACHING PARTS (Engine Mounts) POWER UNIT

1

6681857

ALTERNATOR See Illustration ALTERNATOR/ B22386

2

1CM8110

HEX CAP S Was 1CM08100B - B

3

51DM8

NUT

4

4CM845

BOLT

5

4DM8

NUT

6

1CM1080

BOLT

6

1CM880

BOLT

7

6814827

BRACKET

7

7103231

BRACKET

8

51DM10

NUT

9

6732732

BUSHING

9

6675838

BUSHING

10

1CM885

BOLT

11

10C832

BOLT Was 37C832 - D

12

29CM820

SCREW

13

6814861

SPACER

14

6814859

TENSIONER

15

1CM8110

HEX CAP S

16

6814860

SPACER

17

6681942

IDLER

18

25E21

WASHER 5

19

95D8

NUT

20

6815019

BELT

20

6815018

BELT Use W/HVAC

21

6719828

BOLT

22

6814278

MOUNT

23

1CM1280

BOLT

24

6705106

WASHER

25

6706043

SPACER tube

26

6668104

MOUNT, ENG

27

6812576

MOUNT

27

NLA - Order 7121998 kit - Was 6812576

28

59CM1225

SCREW

29

6661787

WASHER snubbing

30

53DM12

NUT

31

51DM16

NUT

32

29CM1650

BOLT

33

6811432

MOUNT

33

MOUNT NLA - Order 7121998 kit - Was 7107509

34

MOUNT NLA - Order 7121998 kit - Was 7102966

35

6811804

MOUNT
