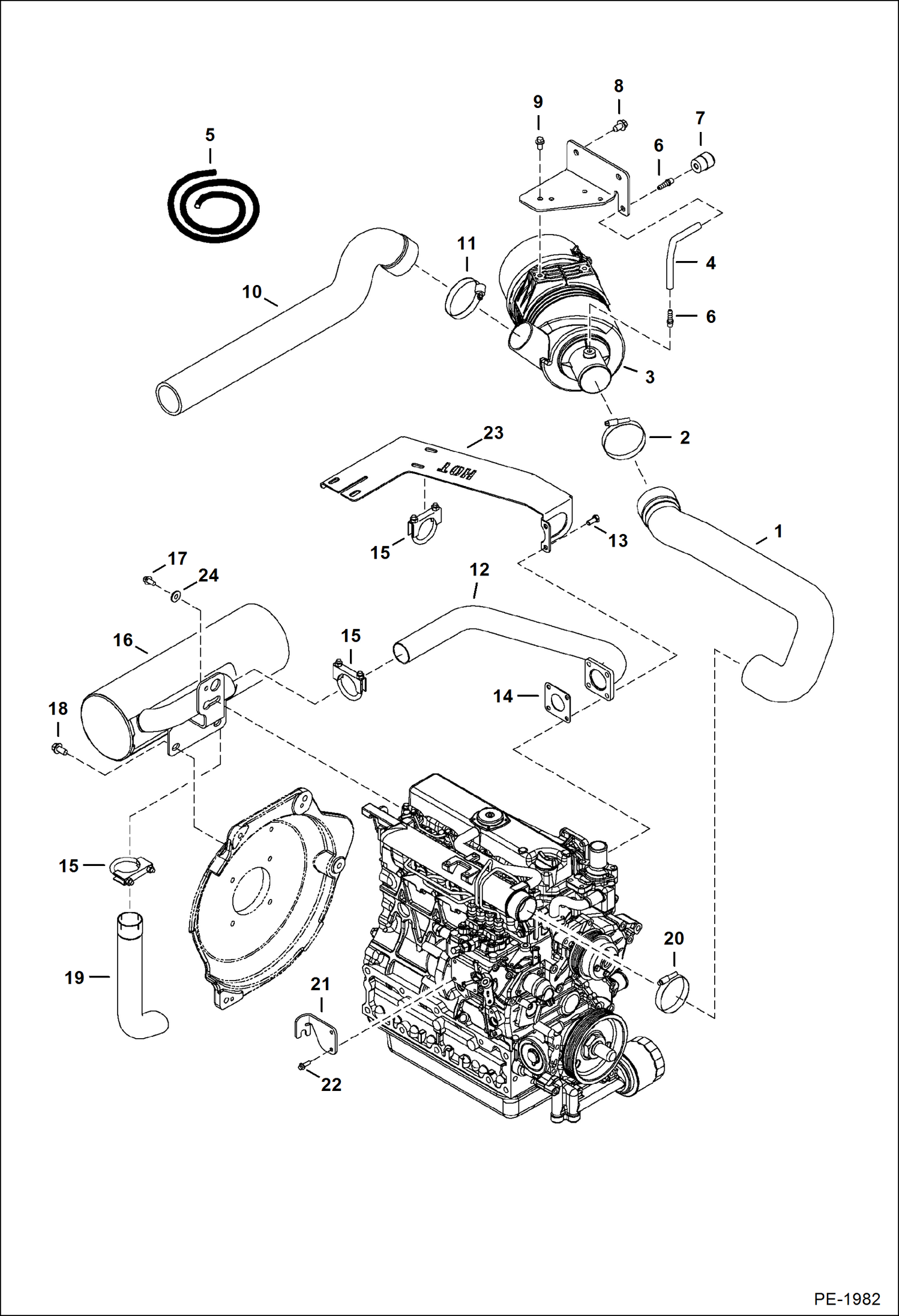

Запчасти Bobcat 430 ENGINE & ATTACHING PARTS (Air Cleaner, Muffler) POWER UNIT

1

6814623

HOSE

2

42HC325

CLAMP

3

6678769

AIR CLEANER See Illustration AIR CLEANER/ B20074

4

HOSE NLA - use 13.5'' of Ref. 5

4

HOSE NLA - use 13.5'' of Ref. 5

5

6557720

HOSE bulk - sold per foot

6

6505813

CONNECTOR

7

6515007

GAUGE

8

26GM10020

BOLT

9

29CM816

SCREW

10

6816123

HOSE

11

42H40

HOSECLAM5

12

7000322

TUBE, EXHAUST Was 6682483 - A

13

6701123

SCREW

14

6727752

GASKET

15

6677363

CLAMP, FULL CIRCLE

16

6682482

MUFFLER, EXHAUST part number stamped on bottom of muffler - early D series - VPN 200266A-20

16

MUFFLER NLA - part number stamped on bottom of muffler - Order 7000320 muffler & 7000323 pipe - Was 6685647 VPN 200266B

16

7000320

MUFFLER, EXHAUST Was 7171577 - A

17

29CM816

SCREW

18

29CM1020

BOLT

19

7000323

PIPE, TUBE EXHAUST Was 7140376 - A

20

42HC300

CLAMP

21

6814273

BRACKET throttle

22

29CM620

SCREW

23

COVER NLA - exhaust - Order 7127718 - Was 6817602 - A

23

7127718

COVER EXHAUST exhaust

24

17EM80

WASHER
