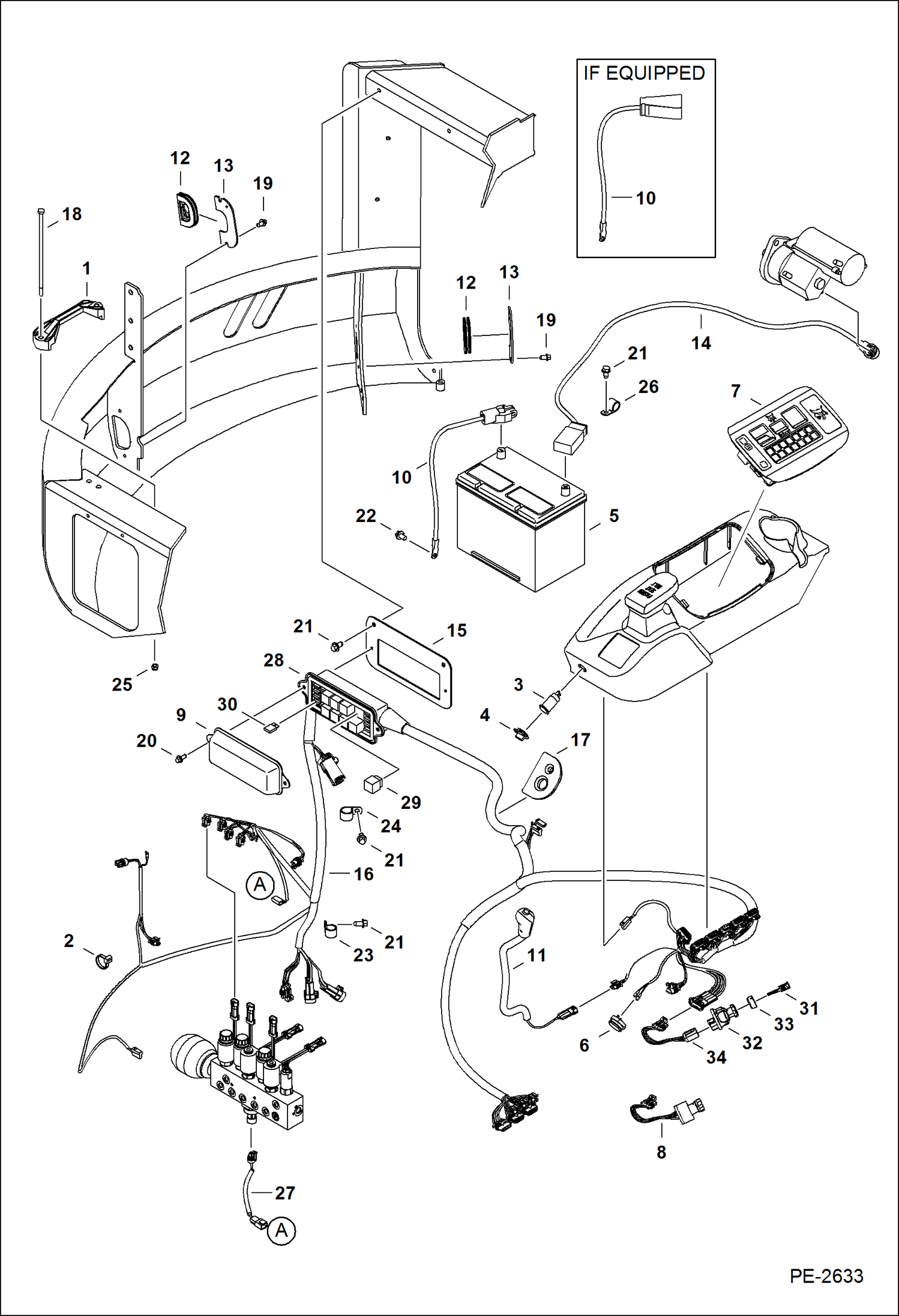

Запчасти Bobcat 430 ELECTRICAL (R.H. Console) ELECTRICAL SYSTEM

1

6569203

CLAMP battery

2

6624289

STRAP, TIE

3

6664223

OUTLET

4

6664224

CAP

5

6674687

BATTERY, DRY 600 AMP

6

6675705

ALARM

7

6691432

CONTROLLER, KEY START See BTI395exc - key start - Was 6678690 - A

7

6691433

CONTROLLER, KEYLESS PANEL See BTI395exc - keyless start - Was 6678691 - A

8

SWITCH NLA - ignition W/attached harness - Order Ref. 32-34 - Was 6679842 - A

9

6716621

COVER

10

6807431

CABLE negative

11

BLADE LEVER NLA - Order components - Was 7117039 - A

11

6675721

SWITCH momentary - 2 speed

11

6675831

HANDLE front half

11

6675832

HANDLE back half

11

7117038

TUBE

11

SCREW NLA - Order components - Was 7117039

12

6810364

GROMMET

13

6810365

GROMMET PLATE plate

14

6812394

CABLE positive

15

7102810

BRACKET Was 6814704 - A

16

HARNESS NLA - console - R.H. - Order 7105175 & 7105174 harness - Was 6814920 - A

16

7105175

HARNESS W/Ref. 9, 15, 28-30

17

7165623

GROMMET Was 6815653 - A

18

17C5152

BOLT Was 1C005148B - B

19

26GM8016

SCREW

20

26GM8020

SCREW

21

26GM10020

BOLT

22

29CM1016

BOLT

23

30H46

CLIP

24

30H50

CLIP

25

59D5

NUT 5

26

30H65

CLIP

27

7105174

HARNESS

28

6718659

HOUSING

29

6679820

RELAY

30

6654803

FUSE 5A

30

6654805

FUSE 10A

30

6654806

FUSE, 15A

30

6625575

FUSE, 20A

30

6702444

FUSE 25A 5

31

KEY NLA - ignition - includes two keys W/ring - Order 6693241 - Was 6709527 - A

31

6693241

KEY 10 ignition - single key W/O ring

32

6693245

SWITCH, IGN W/O attached harness

33

7000328

ADAPTER, SWITCH IGN

34

6697965

HARNESS
