Запчасти Bobcat 430 HYDROSTATIC PUMP (Rear) HYDRAULIC/HYDROSTATIC SYSTEM

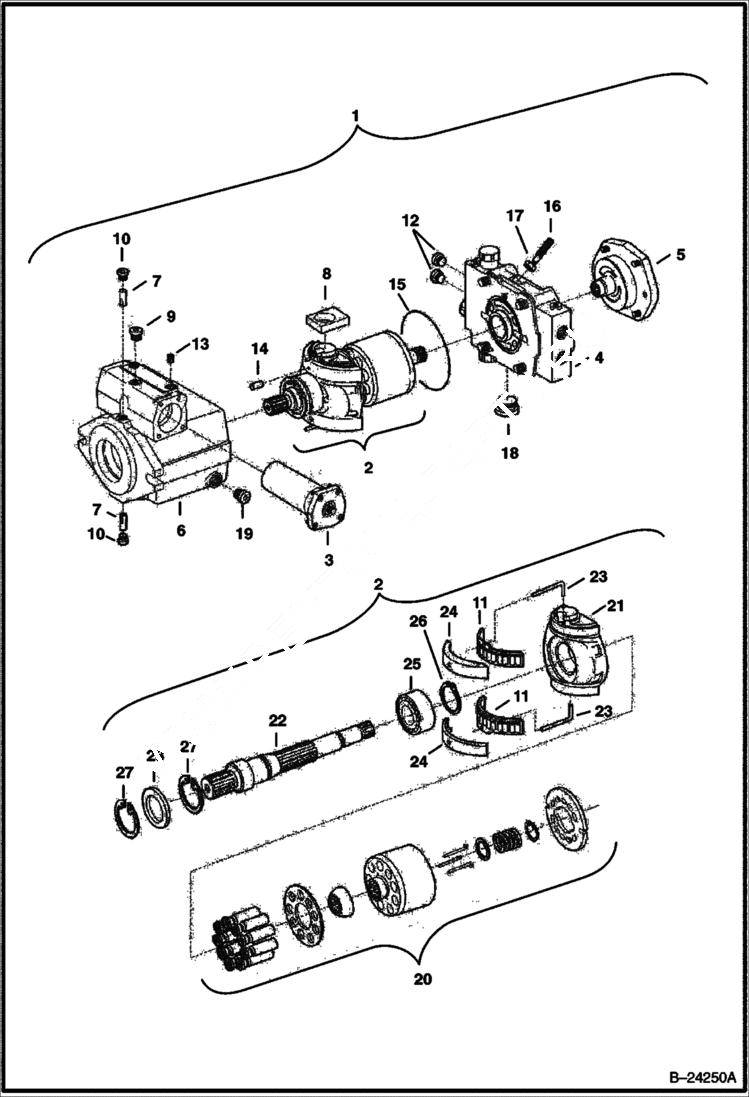

Схема запчастей Bobcat 430 - HYDROSTATIC PUMP (Rear) HYDRAULIC/HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6685379

PUMP rear

2

6685420

ROTARY GROUP assy

3

6685384

ADJUSTER See Illustration HYDROSTATIC PUMP/ NA5004

4

6685428

PLATE See Illustration HYDROSTATIC PUMP/ B24257 - port - assy

5

6685421

PLATE support

6

HOUSING NSS - order Ref. 1

7

6685389

PIN

8

6685388

RING side

9

6682776

PLUG

10

6682878

SCREW

11

6685396

BEARING set

12

6682875

PLUG

12

6698343

ORING

13

6967419

ORIFICE Was 6671745 - A

14

6685389

PIN

15

6682949

O-RING

16

6682881

SCREW

17

6682882

NUT

18

PLUG

19

6682877

PLUG

20

6685391

PISTON assy

21

6685392

CRADLE

22

6685422

SHAFT

23

6682887

WIRE

24

6685394

LINER bearing

25

6685395

BEARING

26

6685397

RING retaining

27

6685398

RING retaining

28

6685399

SEAL

Выбрано товаров: 29
