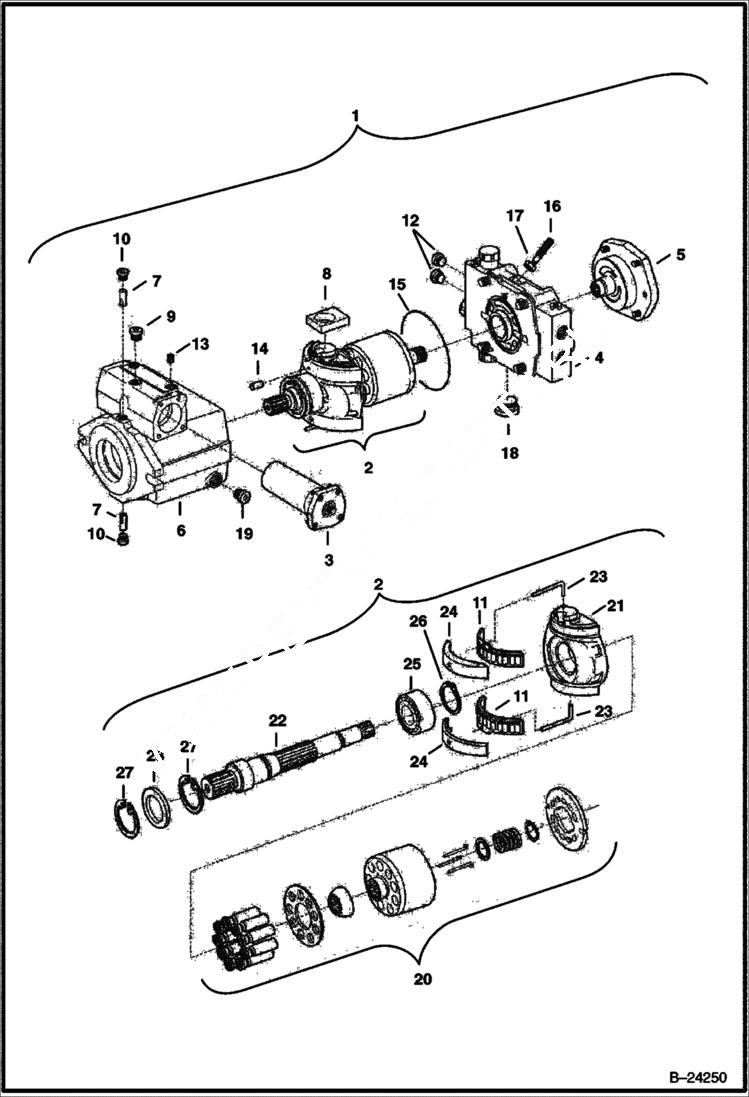

Запчасти Bobcat 430 HYDROSTATIC PUMP (Front) HYDRAULIC/HYDROSTATIC SYSTEM

1

6685378

PUMP front

2

6685383

ROTARY GROUP assy

3

6685384

ADJUSTER See Illustration HYDROSTATIC PUMP/ NA5004 - assy

4

6685410

PLATE See Illustration HYDROSTATIC PUMP/ B24255 - Was 6685385 - A

5

6685386

PLATE

6

HOUSING NSS - order Ref. 1

7

6967414

PIN Was 6671789 - D

8

6685388

RING side

9

6682876

PLUG

10

6682878

SCREW Was 6682874 - D

11

6685396

BEARING set

12

6682875

PLUG

12

6698343

ORING

13

6967419

ORIFICE Was 6688020 - A

14

6685389

PIN

15

6682949

O-RING

16

6682881

SCREW

17

6682882

NUT

18

6685390

SCREW

19

6682877

PLUG

20

6685391

PISTON assy

21

6685392

CRADLE

22

6685393

SHAFT Was 6685422 - D

23

6682887

WIRE

24

6685394

LINER bearing

25

6685395

BEARING

26

6685397

RING snap

27

6685398

RING

28

6685399

SEAL
