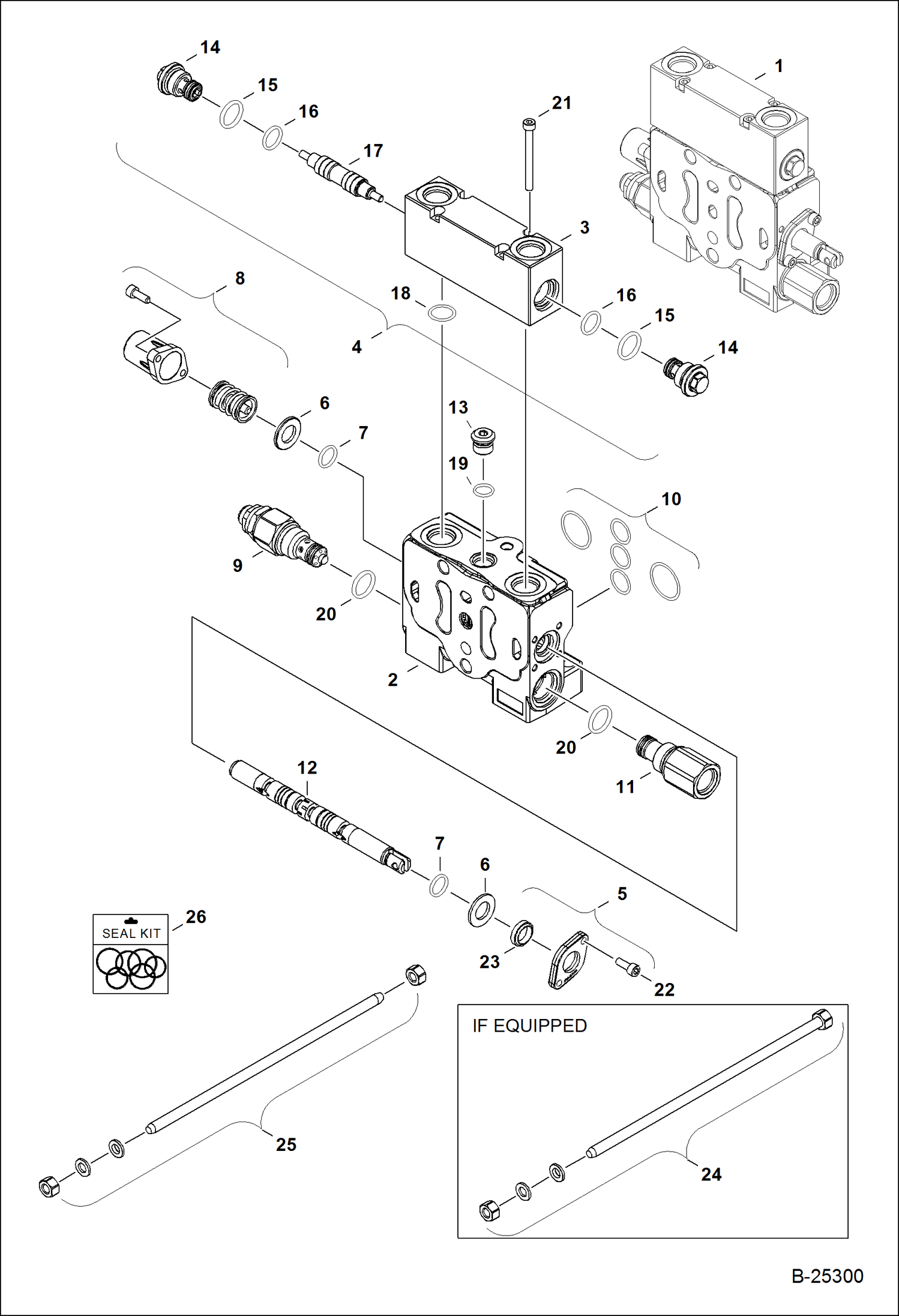

Запчасти Bobcat 430 VALVE SECTION (Boom Swing) HYDRAULIC/HYDROSTATIC SYSTEM

1

6685295

VALVE section - W/Ref. 2-23

2

BLOCK NSS - Order Ref. 1

3

BLOCK NSS - Order Ref. 4

4

6680070

BLOCK

5

6680097

KIT

6

6680095

WASHER

7

6680094

O-RING

8

6680068

KIT control

9

6682252

VALVE relief

10

6680066

KIT o-ring

11

6680119

VALVE assy.

12

SPOOL NSS - Order Ref. 1

13

6680093

PLUG assy. - W/Ref. 19

14

6690942

CARTRIDGE W/Ref. 15 & 16

15

6690468

O-RING

16

6690467

O-RING

17

SPOOL NSS - Order Ref. 4

18

6686495

O-RING

19

O-RING NSS - Order Ref. 25

20

O-RING NSS - Order Ref. 25

21

6690936

SCREW

22

6680071

SCREW

23

6679912

SEAL spool

24

6680087

KIT

25

6685310

SEAL KIT Ref. 7,15,16,18-20 & 23
