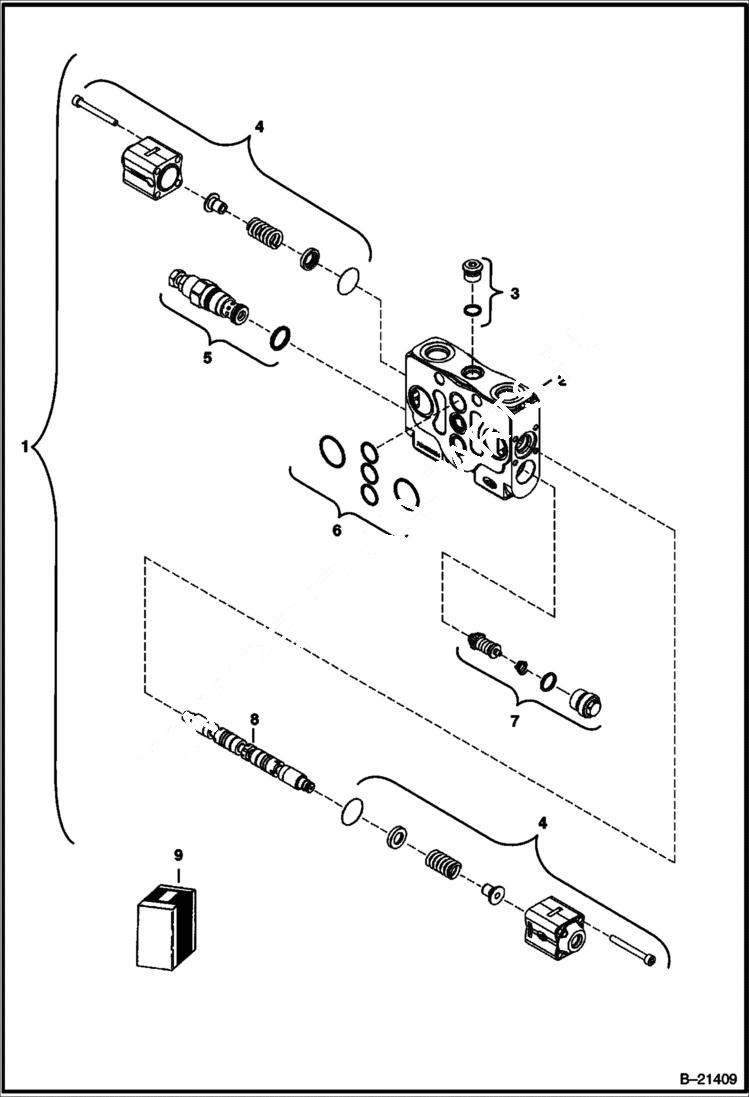

Запчасти Bobcat 430 VALVE SECTION (Boost) HYDRAULIC/HYDROSTATIC SYSTEM

1

6680116

VALVE section - W/Ref. 2-8

2

BLOCK NSS - order Ref. 1

3

6680093

PLUG assy.

4

6680067

KIT control

5

6682252

VALVE relief

6

6680066

KIT o-ring

7

6685300

VALVE

8

SPOOL NSS - order Ref. 1

9

6685307

SEAL KIT section
