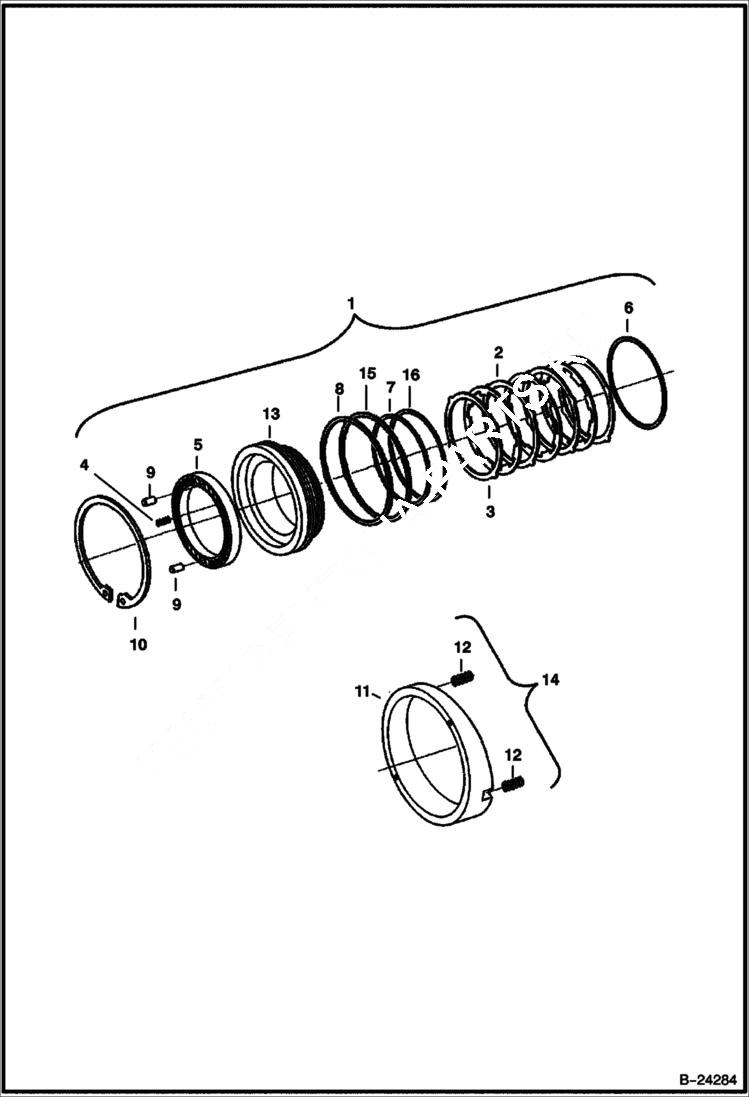

Запчасти Bobcat 430 TRAVEL MOTOR (Pressure Rings) HYDRAULIC/HYDROSTATIC SYSTEM

1

RING NLA - Ref. 2-16 - pressure assy - Order 6686598 - Was 6686299 - A

1

6686598

RING Ref. 2-14 - pressure assy

2

6686622

LAMINATION

3

6686623

COUNTER

4

6686624

SPRING pressure

5

6686625

RING guide

6

6686626

CIRCLIP

7

6686327

RING QUAD Use W/NLA 6686299 pressure assy

7

6686604

O-RING green - Use W/ 6686598 pressure assy

8

6686325

RING BACKUP Use W/NLA 6686299 pressure assy

8

6686605

O-RING green - Use W/ 6686598 pressure assy

9

6686606

PIN

10

6686329

RING retaining

11

STOP NSS - Order Ref. 14

12

6686607

SPRING pressure

13

PRESSURE RING NLA - Use W/NLA 6686299 pressure assy - Order 6686598 - Was 6689704 - A

13

6686621

RING pressure - Use W/ 6686598 pressure assy

14

6686301

STOP assy - W/Ref. 12 - Use W/NLA 6686299 pressure assy

14

6686301

STOP assy - W/Ref. 12 - Use W/ 6686598 pressure assy - Was 6686617 - D

15

6686328

RING QUAD Use W/NLA 6686299 pressure assy

16

6686326

RING BACKUP Use W/NLA 6686299 pressure assy
