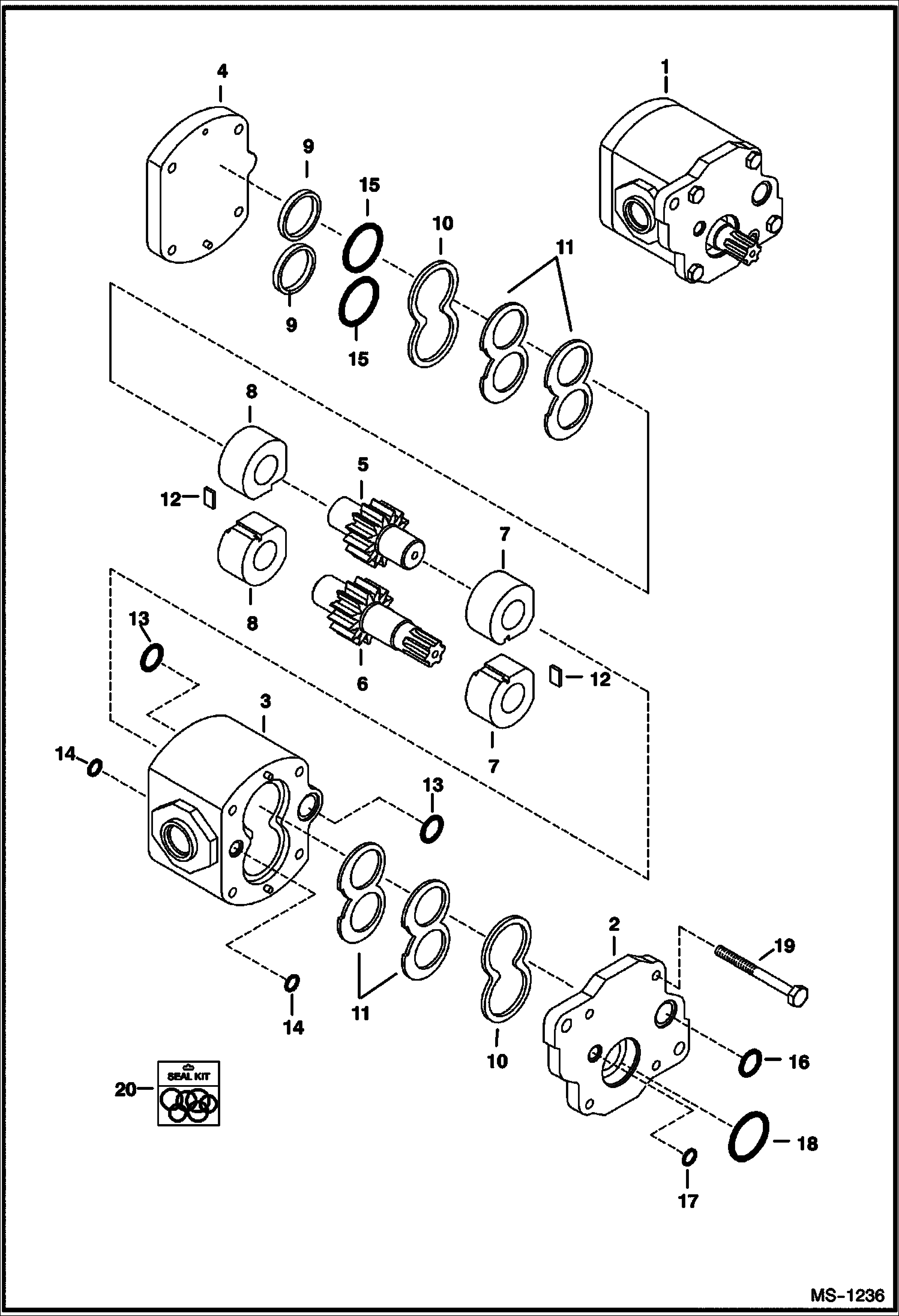

Запчасти Bobcat 430 HYDRAULIC PISTON PUMP (Gear Pump) HYDRAULIC/HYDROSTATIC SYSTEM

1

6685769

PUMP, GEAR assy - W/Ref. 2-19

2

COVER NSS - order Ref. 1

3

HOUSING NSS - order Ref. 1

4

COVER NSS - order Ref. 1

5

GEAR NSS - order Ref. 1

6

GEAR NSS - order Ref. 1

7

BEARING NSS - order Ref. 1

8

BEARING NSS - order Ref. 1

9

RING NSS - order Ref. 1

10

SEAL NSS - order Ref. 1

11

SEAL NSS - order Ref. 1

12

RING NSS - square

13

O-RING NSS - order ref. 20

14

O-RING NSS - order ref. 20

15

O-RING NSS - order ref. 20

16

O-RING NSS - order ref. 20

17

O-RING NSS - order ref. 20

18

O-RING NSS - order ref. 20

19

6678640

SCREW 10 mm X 95 mm

20

6677776

SEAL KIT
