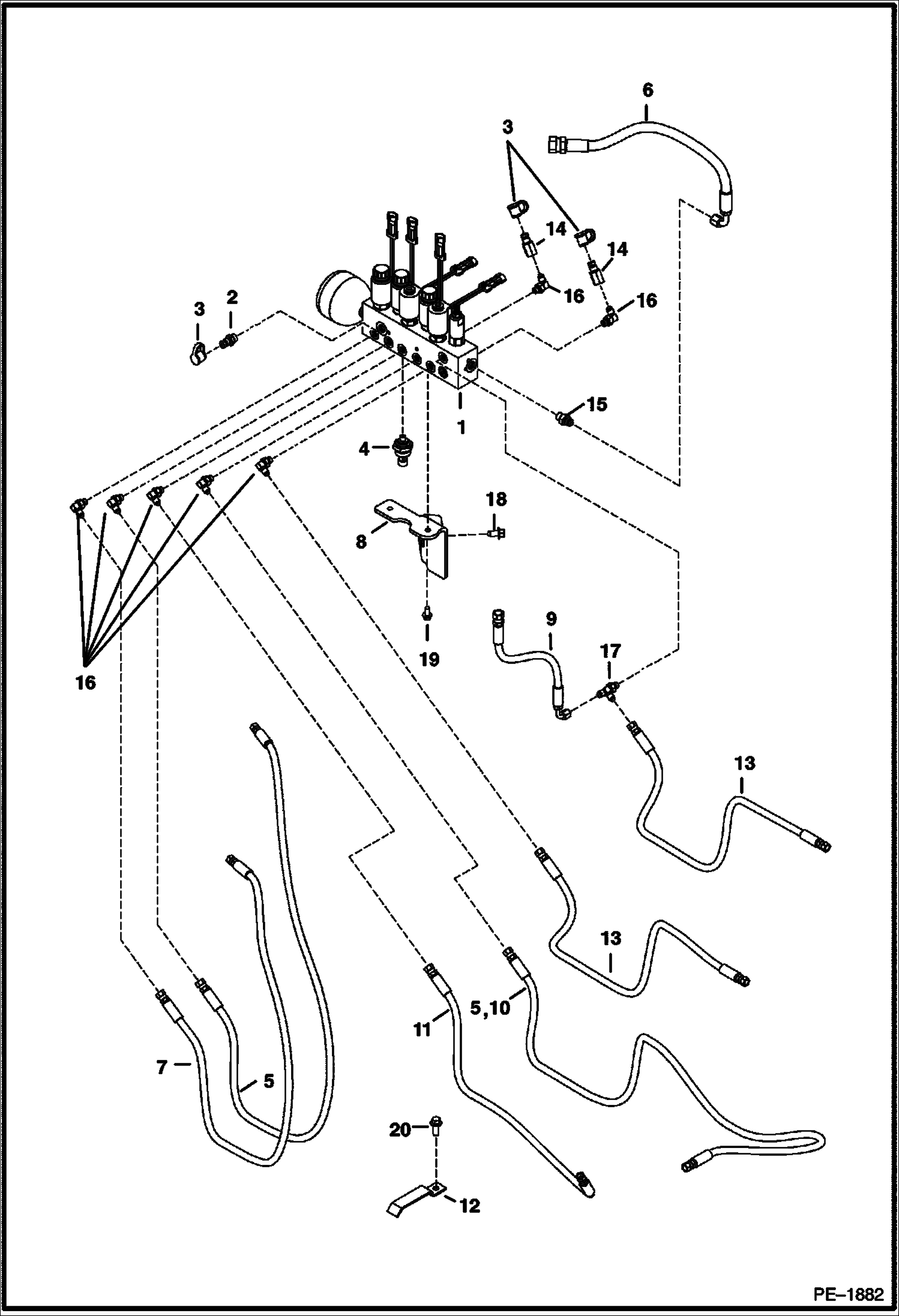

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Manifold) HYDRAULIC/HYDROSTATIC SYSTEM

1

6679507

MANIFOLD See Illustration MANIFOLD/ MS1935

2

6630168

COUPLER

3

6630367

CAP dust

4

6674316

SWITCH, PRESS OIL HYD 3-pin molded connector - pilot pressure

5

7106597

HOSE Was 6802066 - A

6

6816594

HOSE

7

6812855

HOSE

8

6813694

BRACKET

9

7107671

HOSE Was 6813469 - A

10

HOSE NLA - Order Ref 5 - Was 6815220 - A

11

7107673

HOSE Was 6815221 - A

12

6816578

BRACKET

13

7107642

HOSE Was 6815219 - A

14

7000009

PLUG

15

15KB0606

FITTING, HYD CONNECTOR

15

79K6

O RING 10

16

17KB0404

FTG HYD ELBOW 90 90 degree

16

79K4

O RING 10

17

21KB0404

FITTING, HYD TEE

17

79K4

O RING 10

18

26GM10020

BOLT

19

29CM816

SCREW

20

29CM1025

BOLT
