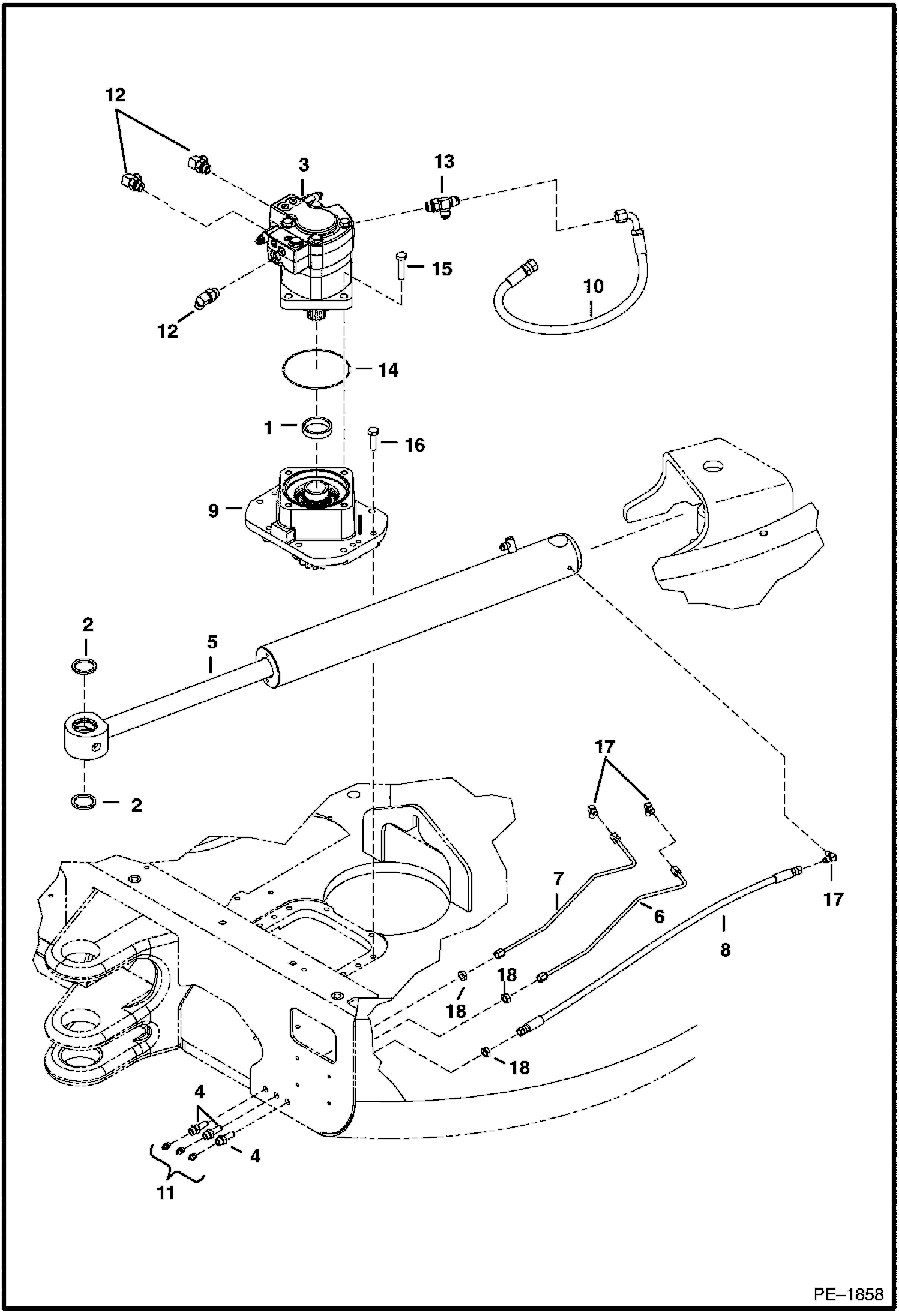

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Upper) HYDRAULIC/HYDROSTATIC SYSTEM

1

6513681

BEARING

2

6660075

SEAL dust

3

7001957

MOTOR, DRIVE HYD SLEW See Illustration SWING MOTOR/ MS1847 - bearing not included with motor - Also Order (1) 6513681 bearing - Was 6687118 - A

4

6807184

FITTING Was 6801784 - D

5

CYLINDER, SWING See Illustration SWING CYLINDER/ PE3653

6

6812177

TUBELINE

7

6812178

TUBELINE

8

6812179

HOSE

9

6814570

CARRIER See Illustration MOTOR CARRIER/ PE1907

10

6815035

HOSE

11

10H25

FITTING, GREASE 5 grease

12

17KB0608

FITTING, HYD ELBOW

12

79K8

O RING 10

13

15KB0808

FITTING, HYD CONNECTOR

13

79K8

O RING 10

14

25K30508

O-RING, 10

15

55CM1240

SCREW

16

55CM1250

SCREW

17

83F3

ELBOW 5

18

86F3

LOCKNUT
