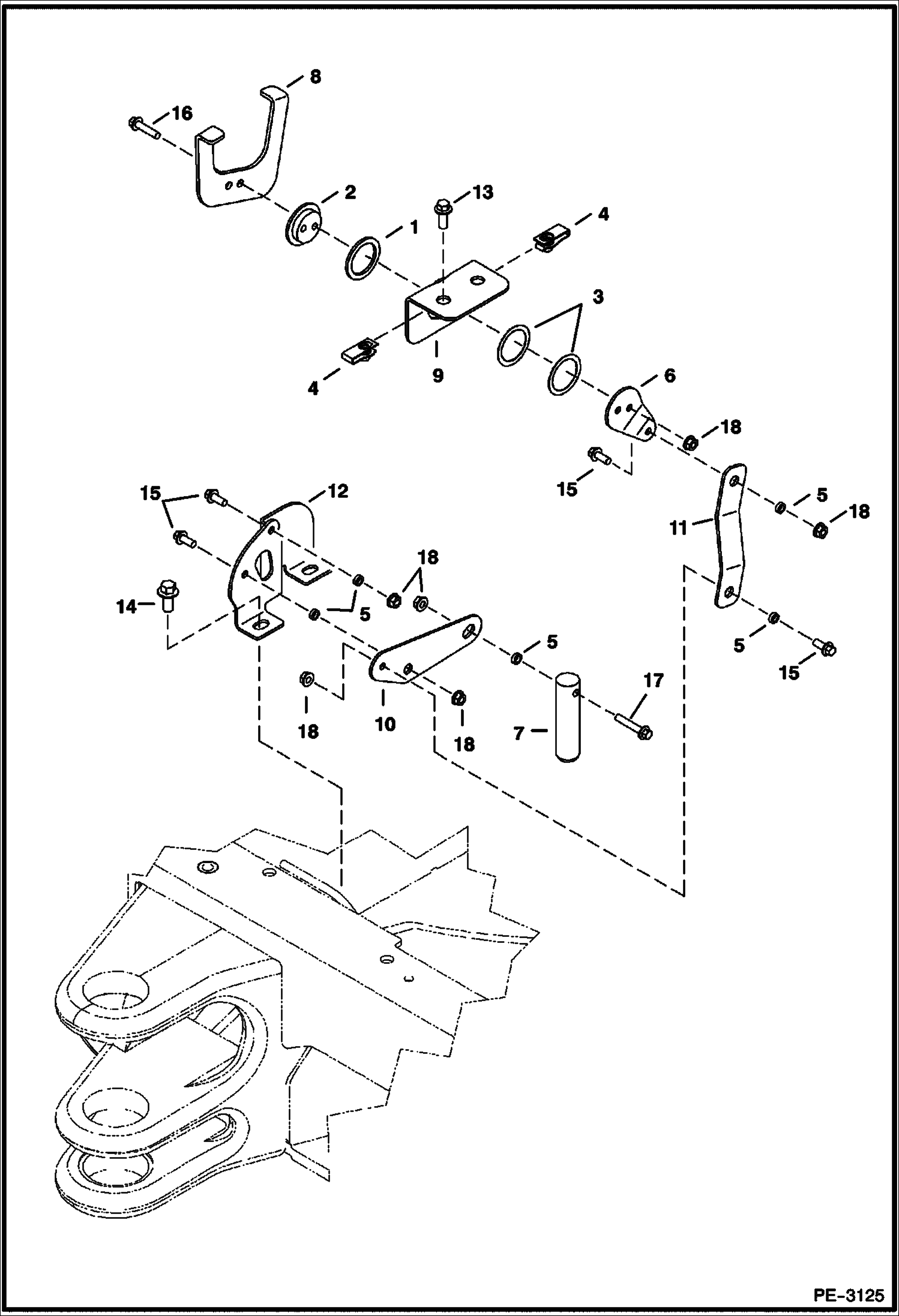

Запчасти Bobcat 428 UPPERSTRUCTURE LOCK MAIN FRAME

1

6567962

WASHER

2

6567963

SPACER

3

6630945

WASHER

4

6675722

NUT

5

6807220

SPACER

6

6808596

LEVER

7

6808598

PIN

8

6814730

LEVER

9

6814732

BRACKET

10

7122456

LEVER

11

7122457

LINK

12

7124889

BRACKET

13

29CM1025

BOLT

14

29CM1225

BOLT

15

29CM820

SCREW

16

29CM835

BOLT

17

29CM845

BOLT

18

51DM8

NUT
