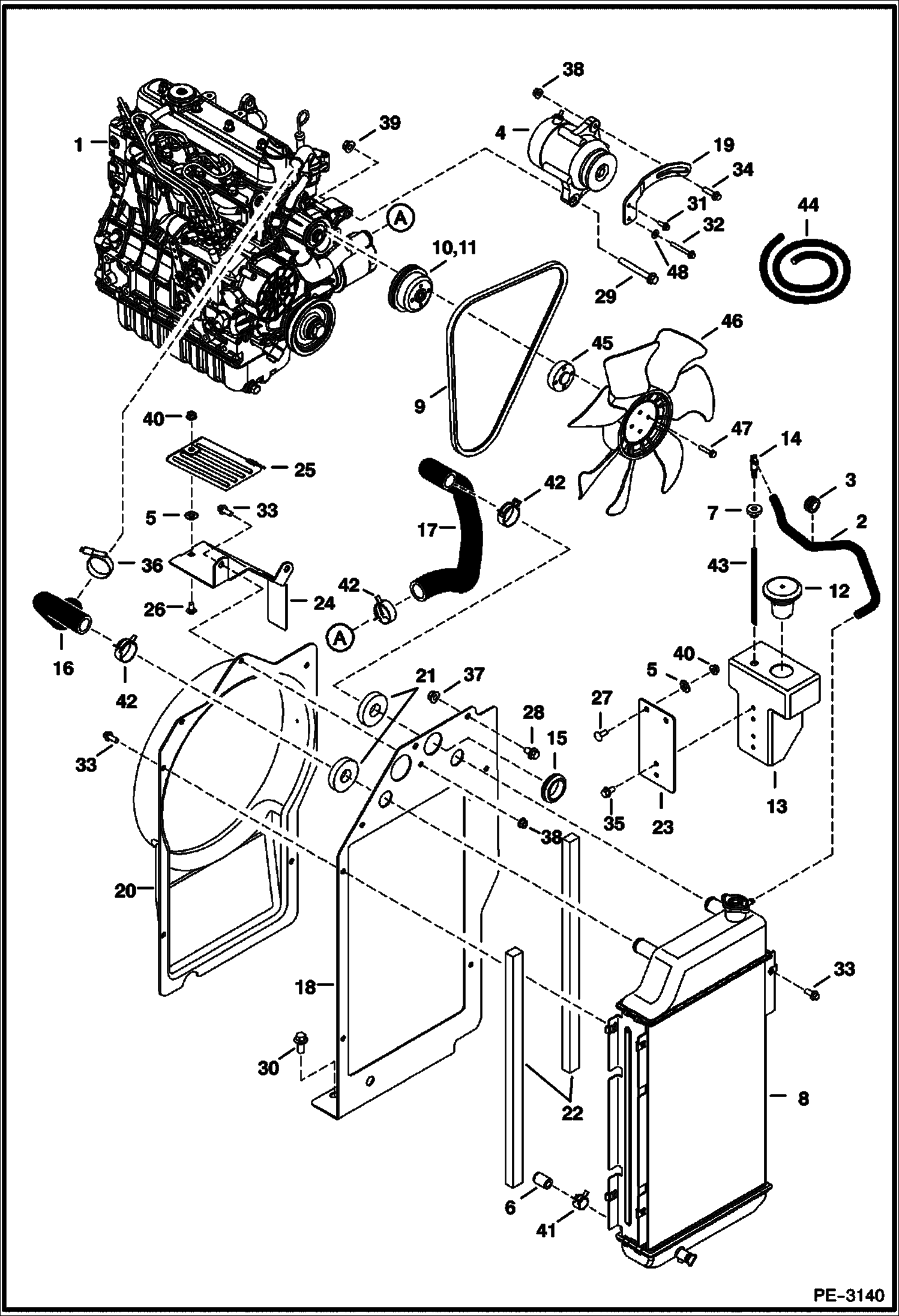

Запчасти Bobcat 428 ENGINE & ATTACHING PARTS (Radiator Water Exchanger) POWER UNIT

1

6692567

ENGINE, V1505-E3B-BC-2

2

HOSE NLA - 16.5'' (420 mm) long - Order Ref. 45

3

6587887

GROMMET

4

ALTERNATOR, 40 AMP See Illustration ALTERNATOR/ C3456

5

6675859

RETAINER

6

6680398

CAP

7

6553411

BUSHING

8

6689663

EXCHANGER

8

6682274

CAP

9

6690691

BELT

10

6657585

PULLEY ESA Only

11

6691342

PULLEY

12

6702797

CAP

13

6736093

TANK

14

6681462

ELBOW

15

6806443

GROMMET

16

7113754

HOSE

17

7113755

HOSE

18

7115800

PLATE

19

7122084

BRACKET

20

7122210

SHROUD

21

7122424

INSULATION

22

7122425

SEAL

23

7127580

BRACKET

24

7135072

GUARD FAN

25

7135073

GUARD

26

28CM816

BOLT

27

21CM820

BOLT

28

29CM1020

BOLT

29

29CM1080

SCREW

30

29CM1225

BOLT

31

29CM616

BOLT

32

1CM655

SCREW

33

29CM820

SCREW

34

29CM830

CAPSCREW

35

35C510

BOLT

36

42HC175

CLAMP

37

43DM10

NUT

38

43DM8

NUT

39

51DM10

NUT

40

51DM8

NUT

41

5HM20

CLAMP

42

5HM35

HOSECLAMP

43

6736598

TUBE

44

6577821

HOSE bulk - sold per foot

45

6687669

COLLAR

46

6691329

FAN

47

6691324

BOLT

48

6EM60

WASHER, SPRING lock
