Запчасти Bobcat 428 CONTROLS (Travel) CONTROLS

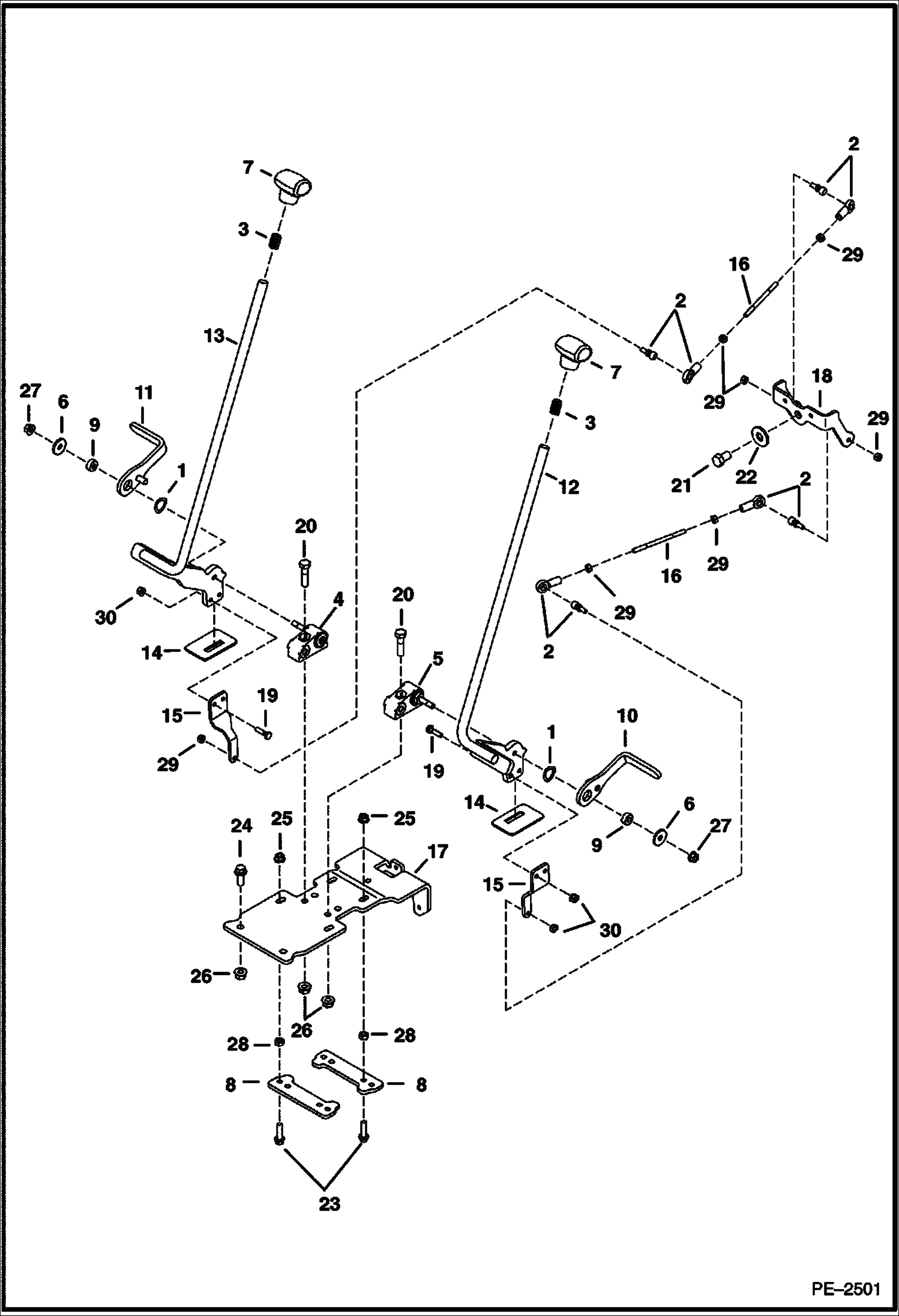

Схема запчастей Bobcat 428 - CONTROLS (Travel) CONTROLS

Артикул

Название

Примечание

Количество

1

6536803

WASHER

2

6631036

JOINT

3

6672494

RING

4

6677904

BEARING RH

5

6677908

BEARING LH

6

6701174

WASHER

7

6804068

HANDLE

8

6809084

STOP

9

6810303

SPACER

10

6810508

PEDAL

11

6810511

PEDAL

12

PEDAL NLA - Use W/.25'' dia hardware - Order 6810532 pedal, (2) each of Ref. 19 (1CM825 bolt) & Ref. 30 (51DM8 nut) - drill out matching holes in Ref. 15 to allow for increased hardware dia - Was 6810

12

6810532

PEDAL Use W/8 mm dia hardware

13

PEDAL NLA - Use W/.25'' dia hardware - Order 6810533 pedal, (2) each of Ref. 19 (1CM825 bolt) & Ref. 30 (51DM8 nut) - drill out matching holes in Ref. 15 to allow for increased hardware dia - Was 6810

13

6810533

PEDAL Use W/8 mm dia hardware

14

6812070

SEAL

15

PLATE NLA - Use W/.25'' dia hardware - Order 7106622 plate, (2) each of Ref. 19 (1CM825 bolt) & Ref. 30 (51DM8 nuts) - drill out matching holes in Ref. 12 or 13 to allow for increased hardware dia - W

15

7106622

PLATE Use W/8 mm dia hardware

16

7109034

ROD

17

7109648

MOUNT

18

7109687

PLATE

19

17C416

BOLT .25'' dia

19

1CM825

BOLT 8 mm dia

20

1CM1040

BOLT

21

1CM1220

BOLT

22

25E22

WASHER

23

29CM830

CAPSCREW

24

29CM1025

BOLT

25

43DM8

NUT

26

43DM10

NUT

27

47DM8

NUT

28

4DM8

NUT

29

62D4

NUT

30

83D4

NUT 10 .25'' dia

30

51DM8

NUT 8 mm dia

Выбрано товаров: 35
