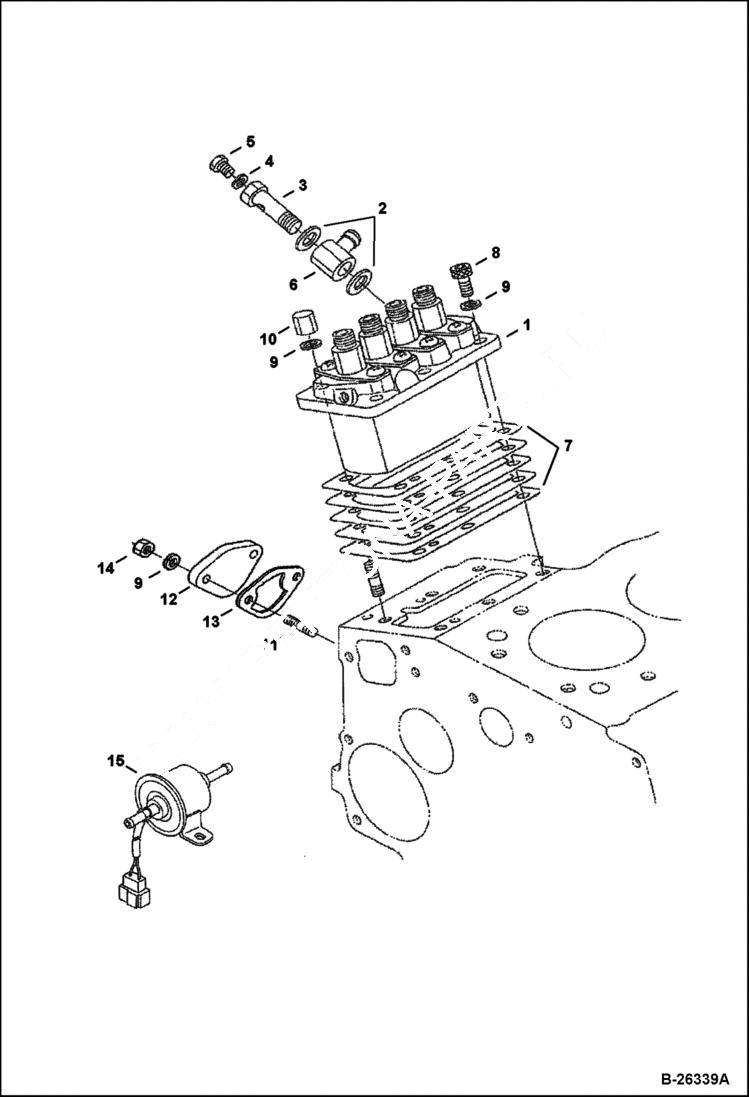

Запчасти Bobcat 428 INJECTION PUMP Kubota - V1505-E3B - Interim Tier IV Replacement REPLACEMENT ENGINE

1

6691314

PUMP W/Ref. 2-5

2

6657466

GASKET

3

6672395

BOLT

4

6657467

GASKET

5

6657445

SCREW

6

6657598

JOINT

7

6698612

SHIM, PUMP INJ 0.175 mm

7

6657472

SHIM 0.20 mm

7

6691316

SHIM 0.25 mm

7

6691317

SHIM 0.30 mm

7

6698611

SHIM, PUMP INJ 0.35 mm

8

7000503

BOLT hex hd soc W/washer - Was 6657417 - B,D

9

6667419

WASHER

10

6657461

NUT

11

6657458

STUD

12

6683041

COVER

13

6670782

GASKET

13

7010133

GASKET, PUMP FUEL

14

1DM6

NUT

15

6684852

PUMP electric fuel
