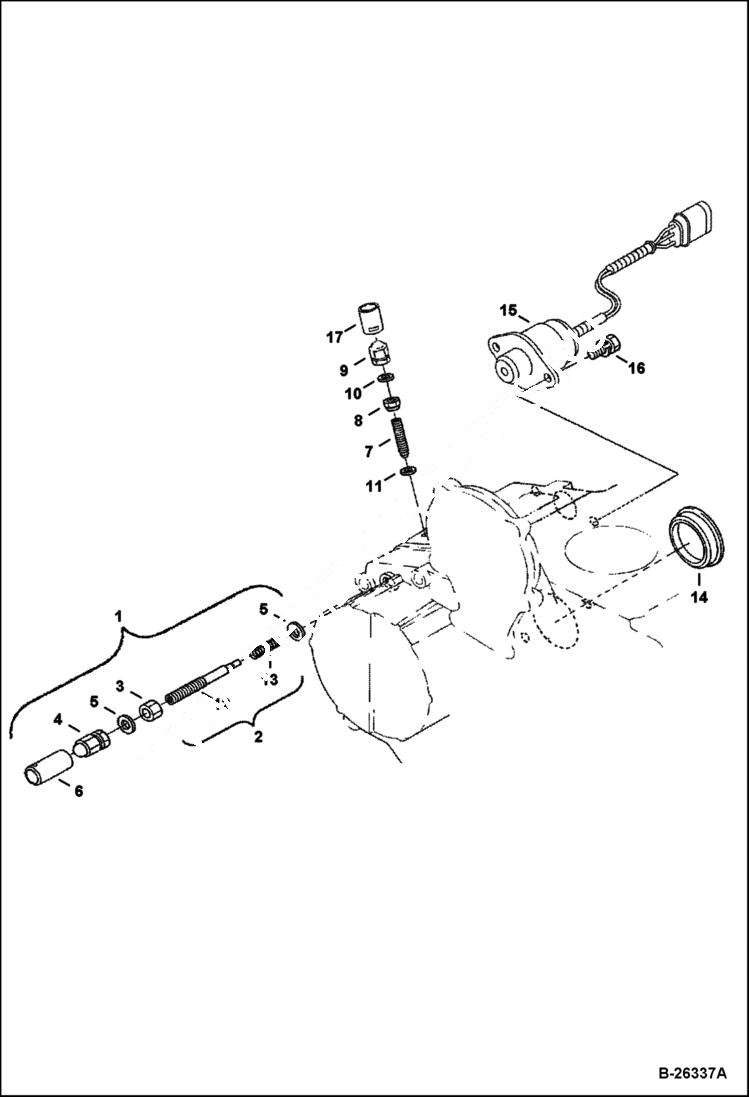

Запчасти Bobcat 428 IDLE APPARATUS Kubota - V1505-E3B - Interim Tier IV Replacement REPLACEMENT ENGINE

1

6691311

APPARATUS W/Ref. 2-6

2

6691312

BOLT W/Ref. 3, 12-13

3

6657459

NUT

4

6657470

NUT

5

3974972

GASKET

6

6672384

CAP, SECURITY

7

6657560

BOLT

8

6680272

NUT

9

6657470

NUT

10

3974972

GASKET

11

6687687

GASKET

12

STUD NSS - Order Ref 2

13

SPRING NSS - Order Ref 2

14

6672387

COVER 2.125'' OD

15

6691313

SOLENOID,STOP

16

6698610

BOLT

17

CAP, SECURITY NLA
