Запчасти Bobcat 428 SPEED CONTROL PLATE POWER UNIT

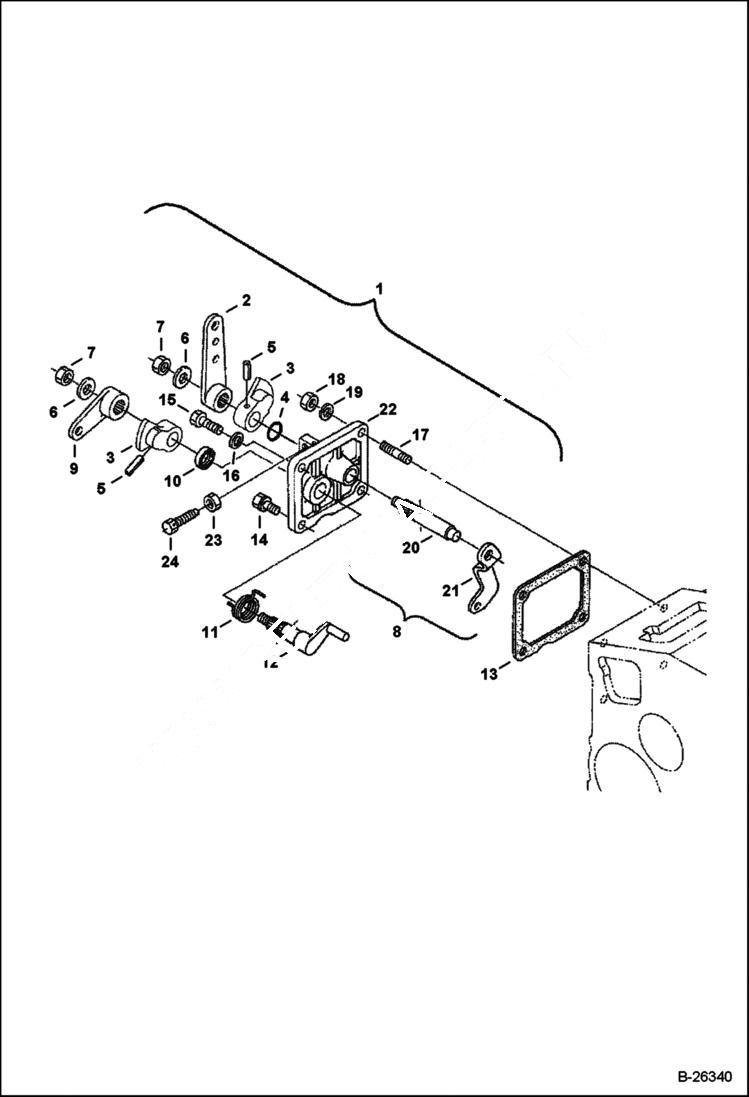

Схема запчастей Bobcat 428 - SPEED CONTROL PLATE POWER UNIT

Артикул

Название

Примечание

Количество

1

6680501

PLATE ASSY W/Ref. 2-12, 20-22 - A

2

6657655

LEVER

3

6657577

LEVER

4

6680277

O-RING

5

6598098

PIN

6

6657596

WASHER

7

6657592

NUT

8

6657649

LEVER ASSY Ref. 20-21

9

6657656

LEVER

10

6598703

SEAL oil

11

6657474

SPRING

12

6657657

SHAFT

13

6657578

GASKET

14

1CM616

SCREW Was 4CM616 - A

15

4CM618

BOLT

16

3974972

GASKET

17

6680264

STUD

18

1DM6

NUT

19

6667419

WASHER

20

SHAFT NSS - Order Ref 8

21

LEVER NSS - Order Ref 8

22

PLATE NSS - Order Ref 1

23

NUT NLA

24

SCREW NLA

Выбрано товаров: 24
