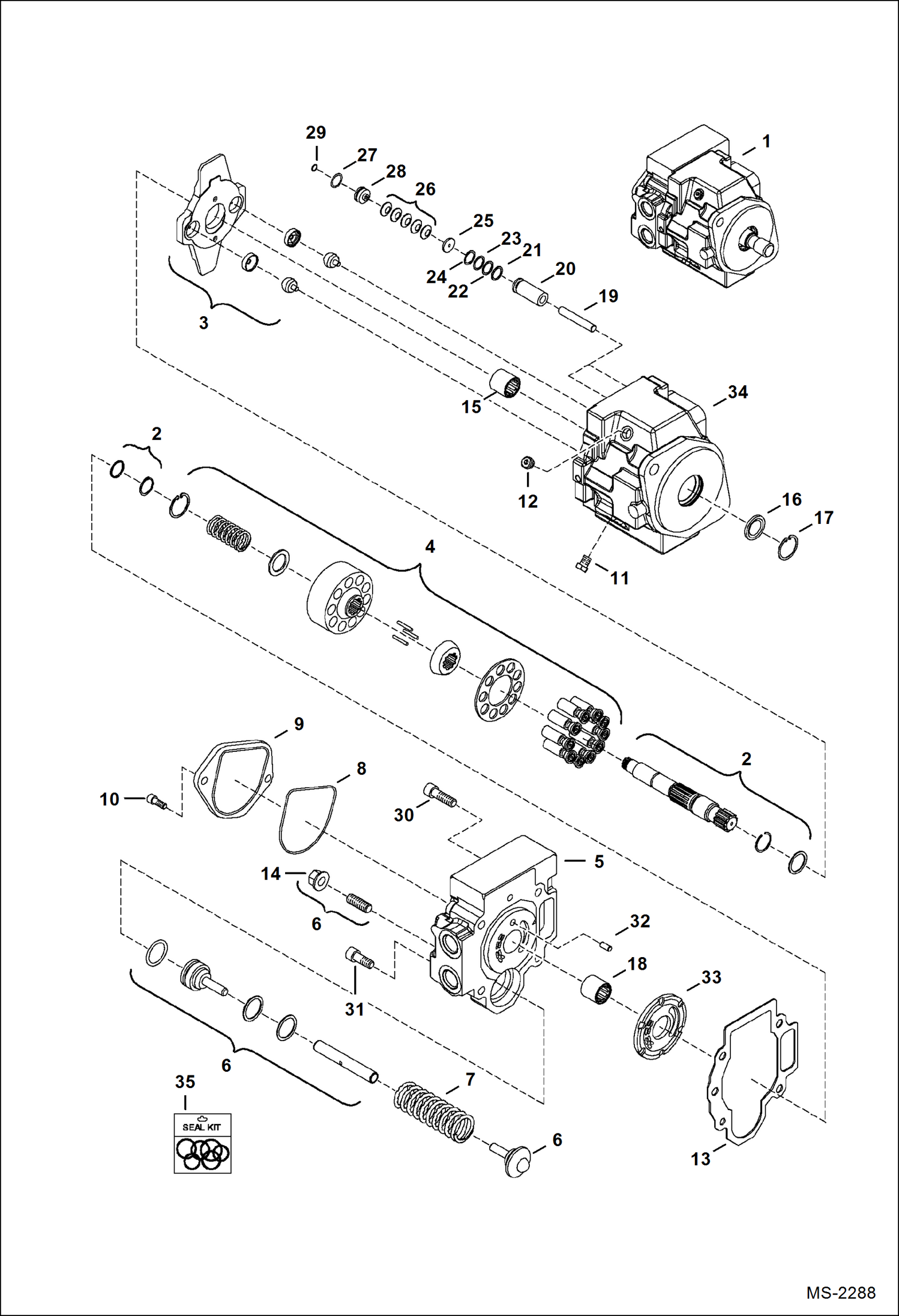

Запчасти Bobcat 425 HYDRAULIC PISTON PUMP HYDRAULIC SYSTEM

1

PUMP NLA - blue - for 425 W/standard arm - Order 6691522 pump - Was 6688051 - A

1

PUMP NLA - blue - for 428 or 425 W/long arm - Order 6691522 pump - Was 6688051 - D

1

6691522

PUMP ASMBLY black - Ref. 2-34

2

6690432

SHAFT ASSY

3

6698038

PLATE swash

4

6690140

ROTARY GRP

5

6690433

COVER ASSY

6

6690434

SPRING SEAT ASSY W/Ref. 14

7

6698039

SPRING

8

6687787

ORING

9

6698040

PLATE

10

6678641

SCREW

11

6687788

PLUG

12

6687789

PLUG W/ O-ring

13

6690122

GASKET

14

6690440

NUT

15

6690126

BEARING

16

6687813

SEAL

17

6690134

RING

18

6690123

BEARING

19

6698041

PIN parallel

20

6698042

SLEEVE

21

6690135

SHIM Was 6690440 - D

22

6690136

SHIM

23

6690137

SHIM

24

6690138

SHIM

25

6690129

SHIM

26

6690130

SPRING disc

27

6690131

ORING

28

6690127

PISTON

29

6690132

ORING

30

6690124

SCREW

31

6690121

SCREW

32

6687795

PIN

33

6690120

CONTROL PLATE

34

HOUSING NSS - Order Ref. 1

35

6698043

KIT W/Ref. 8, 11-14, 16, 27, & 29
