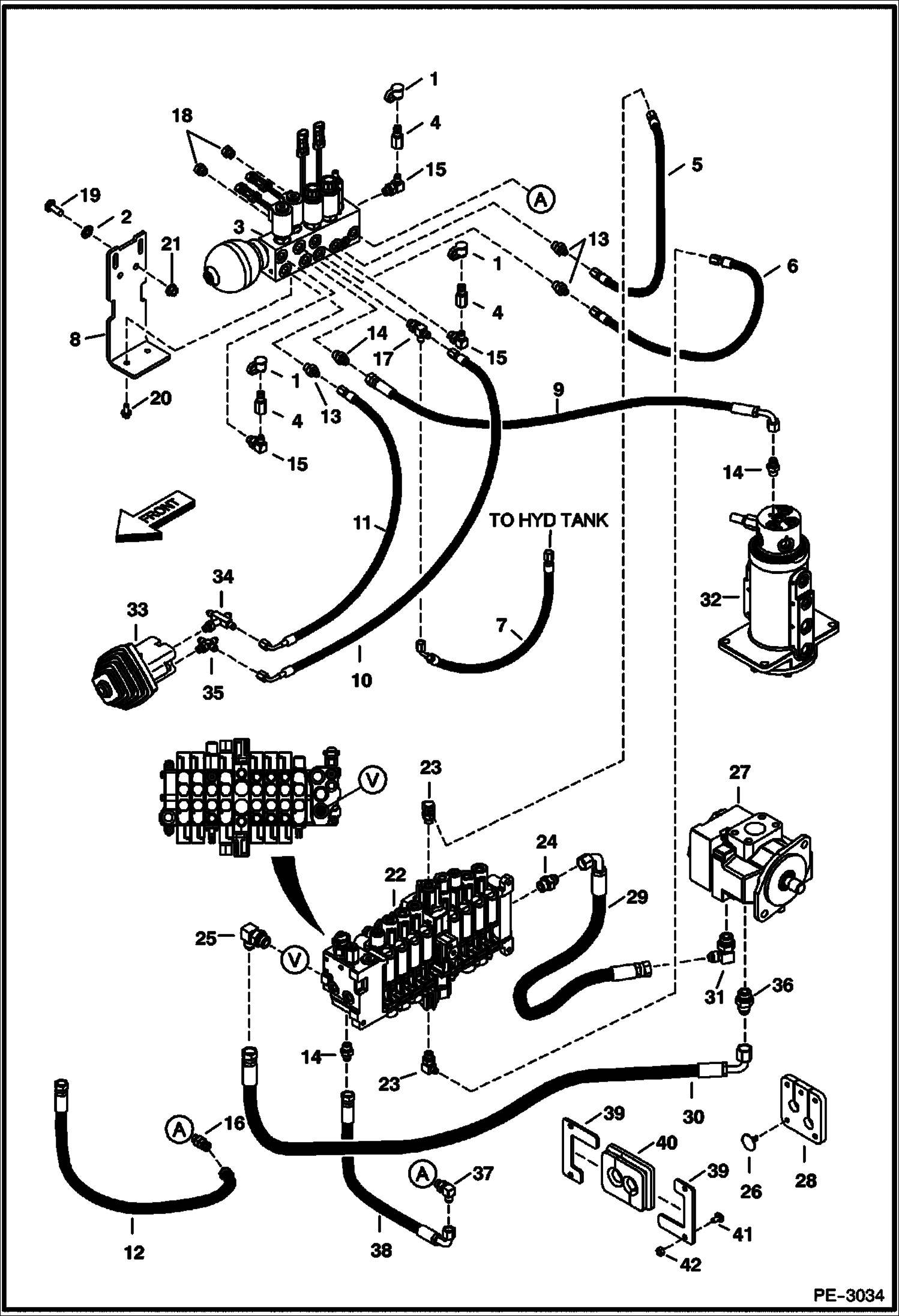

Запчасти Bobcat 425 HYDRAULIC CIRCUITRY (Manifold & Pump) HYDRAULIC SYSTEM

1

6630367

CAP

2

6674264

RETAINER NUT

3

6690054

MANIFOLD See Illustration MANIFOLD ASSY/ MS1465

4

7000009

PLUG

5

7106590

HOSE

6

7106611

HOSE

7

7106619

HOSE

8

7171428

BRACKET, MANIFOLD Was 7138771 - A

9

7130704

HOSE

10

7130705

HOSE

11

7130707

HOSE

12

7130708

HOSE

13

15KB0406

FTG HYD S CONNECTOR

13

79K6

O RING 10

14

15KB0606

FITTING, HYD CONNECTOR

14

79K6

O RING 10

15

17KB0406

FITTING, HYD ELBOW

15

79K6

O RING 10

16

18KB0606

FITTING, HYD ELBOW

16

79K6

O RING 10

17

21KB0406

FTG HYD STRAIGHT TEE

17

79K6

O RING 10

18

24K5

PLUG

18

79K6

O RING 10

19

28CM1030

BOLT

20

29CM816

SCREW

21

51DM10

NUT

22

6688388

VALVE, CONTROL See Illustration CONTROL VALVE/ MS1430

23

7124150

ELBOW

23

79K6

O RING 10

24

15KB0808

FITTING, HYD CONNECTOR

24

79K8

O RING 10

25

17KB1010

FITTING, HYD ELBOW

25

79K10

O RING 10

26

6664559

FASTENER

27

PUMP See Illustration HYDRAULIC PISTON PUMP/ MS2288

28

PLATE, FOAM NLA - Order 7139408 plate (2), 7139407 grommet (1), 28CM816 bolt (4), & 4DM8 nut (4) - Was - 7135028 - A

29

7135701

HOSE

30

7134563

HOSE

31

17KB1010

FITTING, HYD ELBOW

31

79K10

O RING 10

32

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - Was 6800524 - A

33

6677896

JOYSTICK See Illustration TRAVEL CONTROLLER/ MS1351

34

6812829

CROSS

34

79K4

O RING 10

35

6812830

CROSS

35

79K4

O RING 10

36

15KB1010

FITTING, HYD CONNECTOR

36

79K10

O RING 10

37

17KB0606

FITTING

37

79K6

O RING 10

38

7140049

HOSE

39

7139408

PLATE

40

7139407

GROMMET

41

28CM816

BOLT

42

4DM8

NUT
