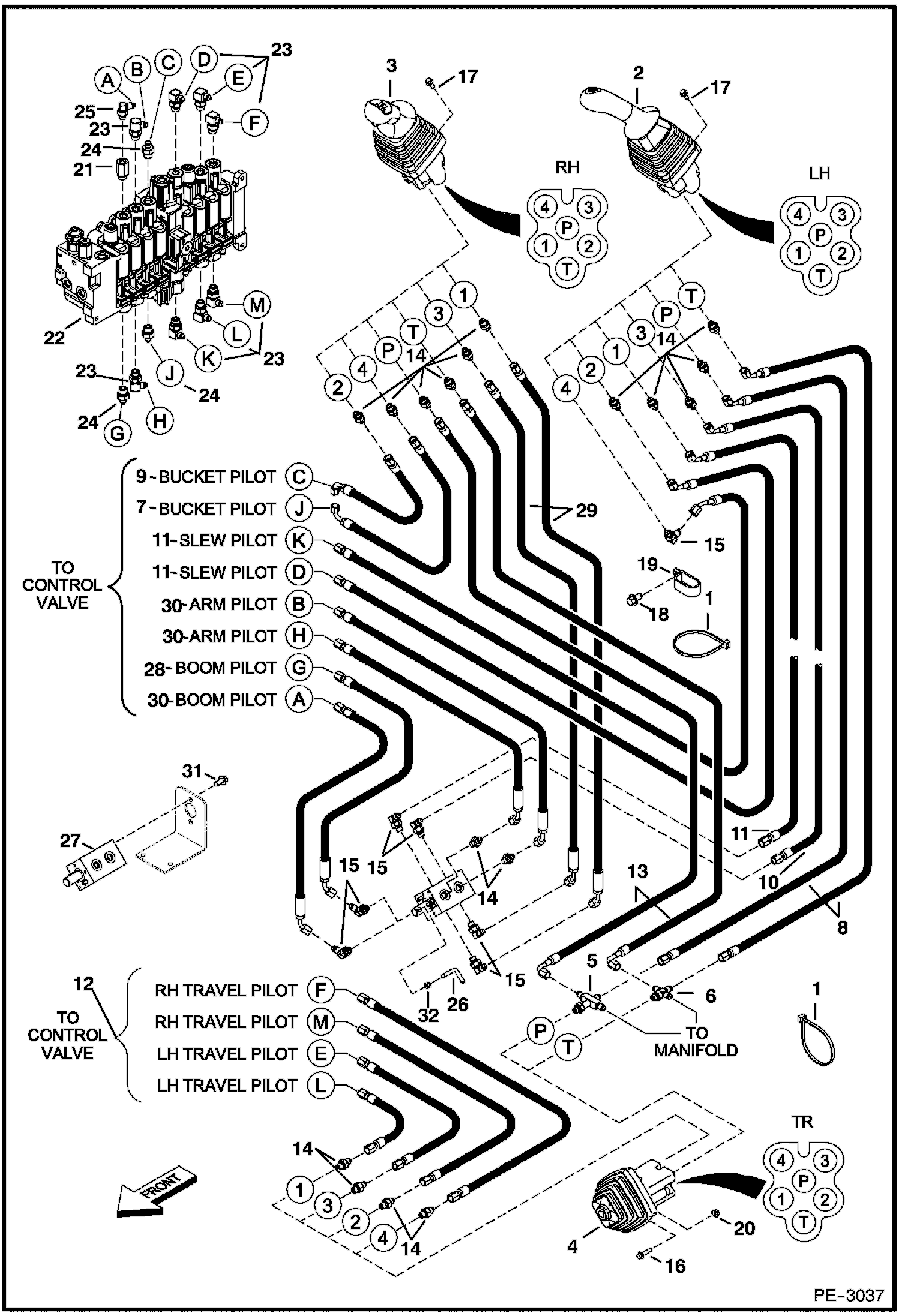

Запчасти Bobcat 425 HYDRAULIC CIRCUITRY (Pilot ISO/STD) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354

3

6677895

JOYSTICK See Illustration R.H. JOYSTICK/ MS1352

4

6677896

JOYSTICK See Illustration TRAVEL CONTROLLER/ MS1351

5

6812829

CROSS

5

79K4

O RING 10

6

6812830

CROSS

6

79K4

O RING 10

7

7106588

HOSE

8

7106606

HOSE

9

7106609

HOSE

10

7106612

HOSE

11

7106614

HOSE

12

7107647

HOSE

13

7107649

HOSE

14

15KB0404

FTG HYD S Connector

14

79K4

O RING 10

15

17KB0404

FTG HYD ELBOW 90

15

79K4

O RING 10

16

17C416

BOLT

17

26GM6020

SCREW

18

26GM10016

SCREW

18

26GM8013

BOLT

19

30H85

CLAMP

20

83D4

NUT 10

21

6686900

ORIFICE

22

6688388

VALVE, CONTROL See Illustration CONTROL VALVE/ MS1430

23

7124150

ELBOW

23

79K6

O RING 10

24

15KB0406

FTG HYD S CONNECTOR

24

79K6

O RING 10

25

16KB0808

FITTING, HYD CONNECTOR

25

79K8

O RING 10

26

6804251

HANDLE

27

6805768

VALVE See Illustration SELECTOR VALVE ASSY/ TS1353

28

7106619

HOSE

29

7106620

HOSE

30

7106621

HOSE

31

29CM816

SCREW

32

53DM6

NUT Was 1DM6 - A
