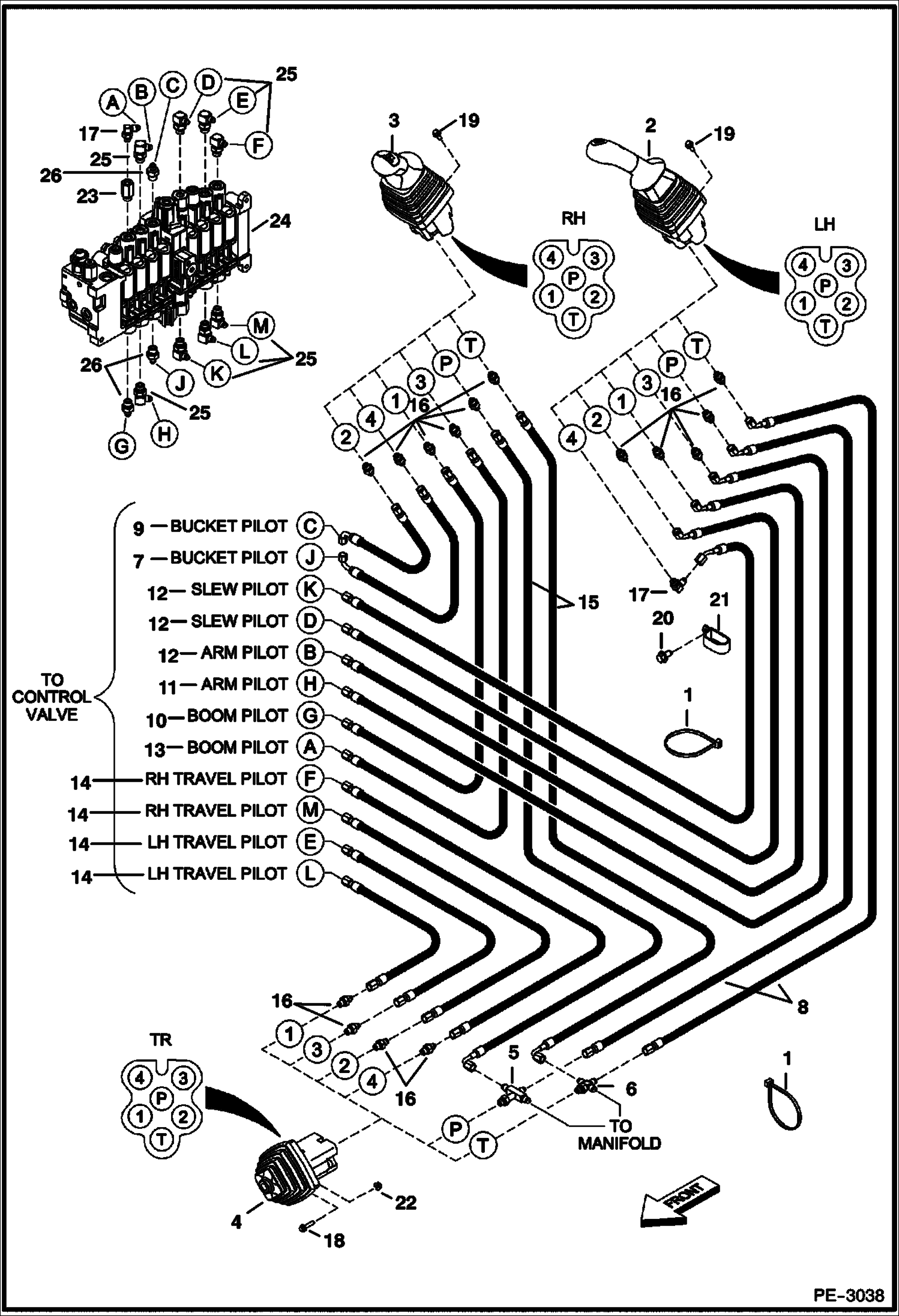

Запчасти Bobcat 425 HYDRAULIC CIRCUITRY (Pilot) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354

3

6677895

JOYSTICK See Illustration R.H. JOYSTICK/ MS1352

4

6677896

JOYSTICK See Illustration TRAVEL CONTROLLER/ MS1351

5

6812829

CROSS

5

79K4

O RING 10

6

6812830

CROSS

6

79K4

O RING 10

7

7106588

HOSE

8

7106606

HOSE

9

7106609

HOSE

10

7106611

HOSE

11

7106612

HOSE

12

7106614

HOSE

13

7106615

HOSE

14

7107647

HOSE

15

7107649

HOSE

16

15KB0404

FTG HYD S Connector

16

79K4

O RING 10

17

17KB0404

FTG HYD ELBOW 90

17

79K4

O RING 10

18

17C416

BOLT

19

26GM6020

SCREW

20

26GM10016

SCREW

20

26GM8013

BOLT

21

30H85

CLAMP

22

83D4

NUT 10

23

6686900

ORIFICE

24

6688388

VALVE, CONTROL

25

7124150

ELBOW

25

79K6

O RING 10

26

15KB0406

FTG HYD S CONNECTOR

26

79K6

O RING 10
