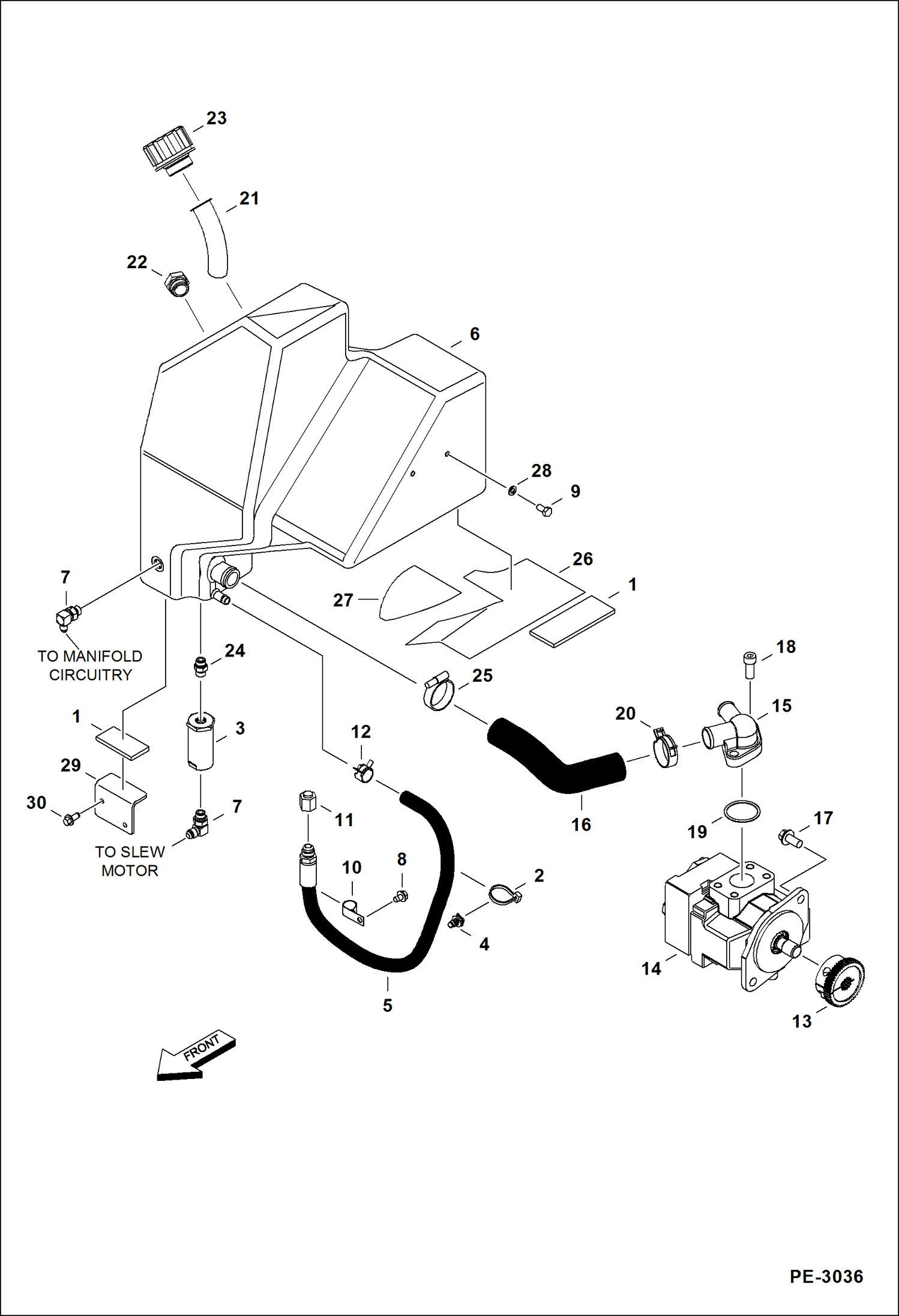

Запчасти Bobcat 425 HYDRAULIC CIRCUITRY (Tank & Pump) HYDRAULIC SYSTEM

1

6578278

PAD

2

6624289

STRAP, TIE

3

6661022

FILTER, OIL HYD IN-LINE

4

7015668

MOUNT, STRAP TIE push in - Use W/tie strap - Was 6678666 - B

5

6713504

HOSE

6

7125483

TANK

7

17KB0606

FITTING

7

21KB0406

FTG HYD STRAIGHT TEE for hydraulic X-Change option

7

79K6

O RING 10

8

26GM8013

BOLT

9

SCREW NLA - Order 29CM816 - Was 55CM816 - B

9

29CM816

SCREW

10

30HJ512

CLAMP

11

36K6

CAP

12

5HM20

CLAMP

13

6676535

COUPLER

14

6688051

PUMP See Illustration HYDRAULIC PISTON PUMP/ MS2288

15

7123787

INLET

16

7124520

HOSE

17

29CM1225

BOLT

18

3GM1230

SCREW

19

58K225

O RING 10

20

5HM42

HOSECLAMP

21

7134222

SCREEN fill - Was 6587168 - A

22

6665915

GAUGE

22

79K12

O RING 10

23

6692836

CAP, HYDRAULIC TANK W/ 79K20 O-ring - Was 6674690 - B,D

24

7134037

CONNECTOR

24

79K4

O RING 10

25

42HC200

CLAMP

26

7135294

INSULATION

27

7135320

INSULATION

28

15EM80

WASHER only Use W/NLA Ref. 9 screw

29

7138266

BRACKET

30

26GM8020

SCREW
