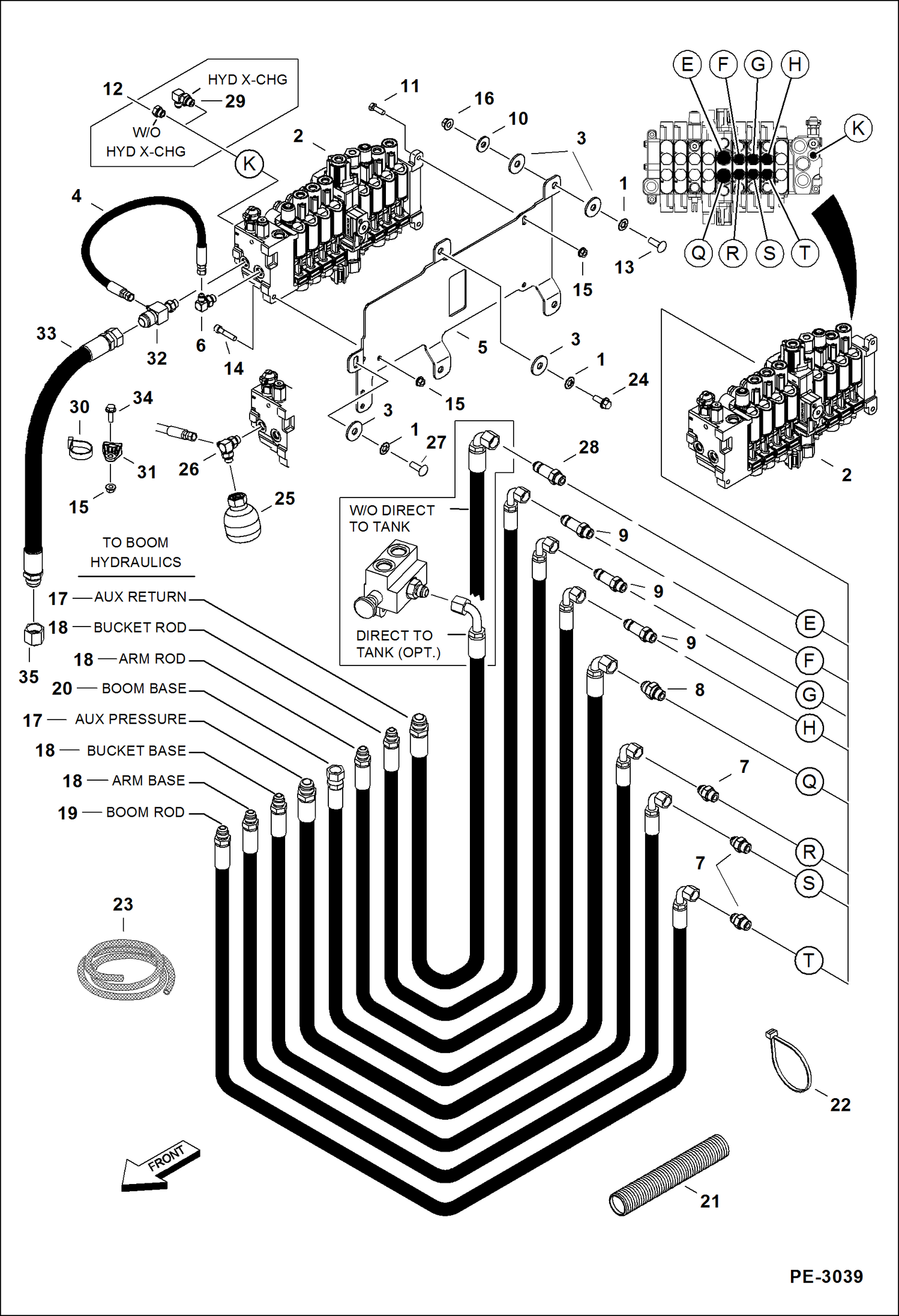

Запчасти Bobcat 425 HYDRAULIC CIRCUITRY (Work Hoses & Control Valve) HYDRAULIC SYSTEM

1

6674264

RETAINER NUT

2

6688388

VALVE, CONTROL See Illustration CONTROL VALVE/ MS1430

3

6806720

INSULATOR

4

7102958

HOSE

5

7114057

MOUNT

6

17KB0406

FITTING, HYD ELBOW Was 7124150 - A

6

79K6

O RING 10

7

15KB0808

FITTING, HYD CONNECTOR

7

79K8

O RING 10

8

15KB1010

FITTING, HYD CONNECTOR Was 16KB1010 - D

8

79K10

O RING 10

9

16KB0808

FITTING, HYD CONNECTOR

9

79K8

O RING 10

10

17EM100

WASHER

11

1CM825

BOLT

12

24K5

PLUG

12

79K6

O RING 10

13

28CM1030

BOLT

14

3GM840

SCREW

15

43DM8

NUT

16

51DM10

NUT

17

7130718

HOSE

18

7130719

HOSE

19

7130720

HOSE

20

7130721

HOSE

21

CONDUIT NLA - 20'' (508 mm) long - Order Ref 23

22

6624289

STRAP, TIE

23

6643249

CONDUIT bulk - sold per foot

24

29CM1025

BOLT

25

ACCUMULATOR See BTIE-088 - NLA - Was 7135515 - A

26

7135516

ELBOW original design

26

79K6

O RING 10

27

28CM1040

BOLT

28

16KB1010

FITTING, HYD ELBOW

29

7124150

ELBOW See Illustration X-CHANGE/ PE3237

29

79K6

O RING 10

30

6678669

STRAP modified design

31

6678818

MOUNT modified design

32

7163238

TEE modified design

32

79K6

O RING 10

33

7165050

HOSE, HYD ASSY modified design

34

29CM825

BOLT modified design

35

36K8

CAP modified design
