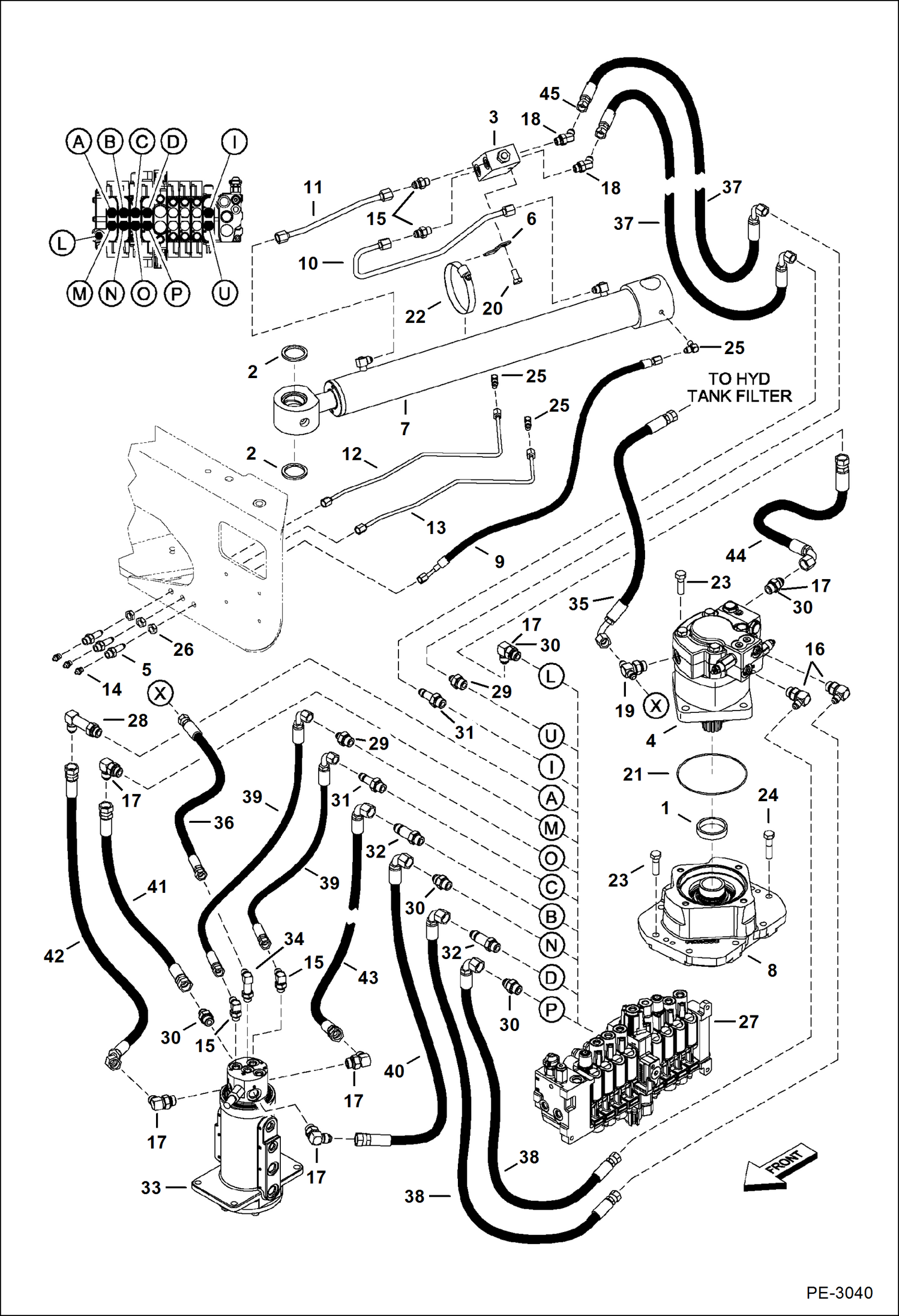

Запчасти Bobcat 425 HYDRAULIC CIRCUITRY (Upper/Swing) HYDRAULIC SYSTEM

1

6513681

BEARING

2

6660075

SEAL

3

6676167

VALVE See Illustration LOCK VALVE/ C3475

4

7001957

MOTOR, DRIVE HYD SLEW See Illustration SWING MOTOR/ MS1847 - bearing not included with motor - Also Order (1) 6513681 bearing - Was 6687118 - A

5

6807184

FITTING

6

6807345

MOUNT

7

CYLINDER See Illustration SWING CYLINDER/ PE3419 - Also Order Ref. 2

8

7106387

CARRIER See Illustration MOTOR CARRIER/ PE2446

9

7106607

HOSE

10

7125343

TUBELINE

11

7125344

TUBELINE

12

7125456

TUBELINE

13

7125457

TUBELINE

14

10H25

FITTING, GREASE 5

15

15KB0606

FITTING, HYD CONNECTOR

15

79K6

O RING 10

16

17KB0608

FITTING, HYD ELBOW

16

79K8

O RING 10

17

17KB0808

FITTING, HYD ELBOW

17

79K8

O RING 10

18

18KB0606

FITTING, HYD ELBOW

18

79K6

O RING 10

19

19KB0608

UNION

19

79K8

O RING 10

20

1CM1020

BOLT

21

25K30508

O-RING, 10

22

42H56

CLAMP

23

55CM1240

SCREW

24

55CM1250

SCREW

25

83F3

ELBOW 5

26

86F3

LOCKNUT

27

6688388

VALVE, CONTROL See Illustration CONTROL VALVE/ MS1430

28

7102234

FITTING

28

79K8

O RING 10

29

15KB0608

FITTING, HYD CONNECTOR

29

79K8

O RING 10

30

15KB0808

FITTING, HYD CONNECTOR

30

79K8

O RING 10

31

16KB0608

FITTING, HYD CONNECTOR

31

79K8

O RING 10

32

16KB0808

FITTING, HYD CONNECTOR

32

79K8

O RING 10

33

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - Was 6800524 - A

34

6812815

FITTING

34

79K6

O RING 10

35

7140316

HOSE Was 7136137 - A

36

7140321

HOSE Was 7137962 - A

37

7130711

HOSE

38

7130712

HOSE

39

7130713

HOSE

40

7130714

HOSE

41

7136138

HOSE Was 7130715 - A

42

7130716

HOSE

43

7130717

HOSE

44

7136192

HOSE on early machines this hose may have been flipped (regardless, straight hose end attaches to elbow) - Was 7130722 - A

45

6593801

ORIFICE
