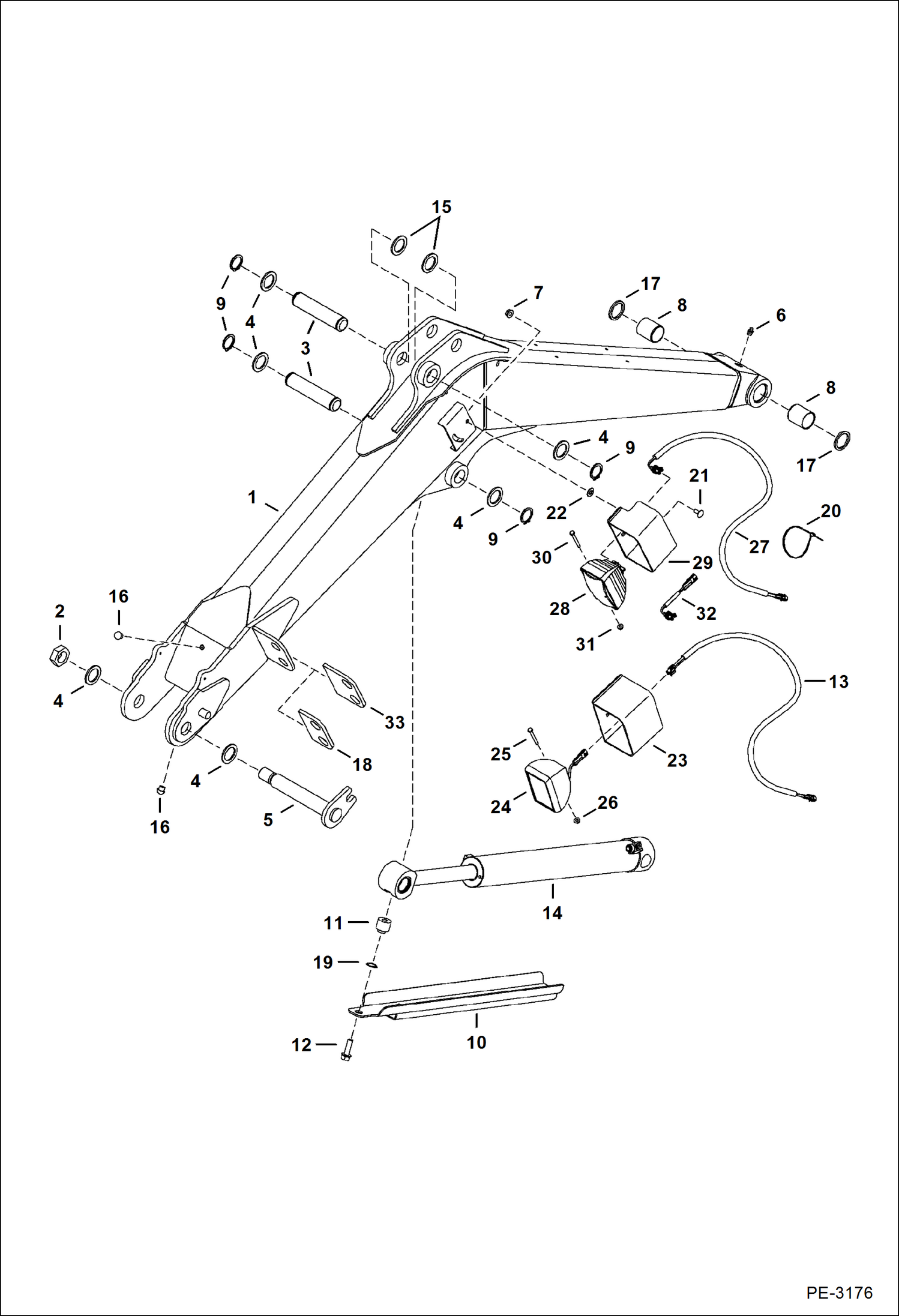

Запчасти Bobcat 425 BOOM WORK EQUIPMENT

1

BOOM See Illustration HYDRAULIC CIRCUITRY/ PE3134 - NLA - W/Ref. 18 - Order 7139949 boom & 7139953 & 7139954 tubelines - Was 7125930 - A

1

7139949

BOOM, DIPPER ARM W/Ref. 8

2

39DM30

NUT

3

7130447

PIN

4

6534111

WASHER

5

6628375

PIN boom mounting

6

10H25

FITTING, GREASE 5

7

51DM8

NUT Was 4DM8 - B

8

6815277

BUSHING

9

6534154

RING

10

7130859

SHIELD W/A cylinder

11

7131109

SPACER

12

7131273

SCREW Also Order (1) of Ref. 19

13

HARNESS NLA - work light - 153'' (3886mm) long - Order Ref. 27 - Was 6808415 - A

14

CYLINDER See Illustration BOOM CYLINDER/ PE3417 - boom

15

6811636

SPACER

16

6597572

BUMPER rubber

17

6660075

SEAL

18

6628560

PLATE welded onto boom - 2.95'' (74.9 mm) x 4.72'' (119.9 mm)

19

6536803

WASHER

20

6610510

TIE

21

28CM820

BOLT Was 21CM820 - B

22

6675859

RETAINER

23

HOUSING NLA - Order Ref. 28 - 32 - Was 6808258 - A

24

6675938

LIGHT W/pigtail - Use W/Ref. 23

24

6667934

BULB

24

6676724

BEZEL Was 6676203 - A

24

6676204

NUT

25

17C532

BOLT 5 for light W/pigtail

26

61D5

NUT for light W/pigtail

27

7135896

HARNESS work light - 156'' (3962 mm) long

28

6691410

LIGHT W/O pigtail - Use W/Ref. 27

28

6692400

BULB

29

7133077

HOUSING, W/A W/notch in side

30

1CM655

SCREW for light W/O pigtail

31

51DM6

NUT for light W/O pigtail

32

7135981

HARNESS extension - 6'' (152mm) long - use when Ref. 28 light is used with Ref. 13 harness

33

6597688

PLATE welded onto boom - 3.86'' (98 mm) x 4.95'' (125.8 mm)
